Driver Climate Controlled Seat Module C3031a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

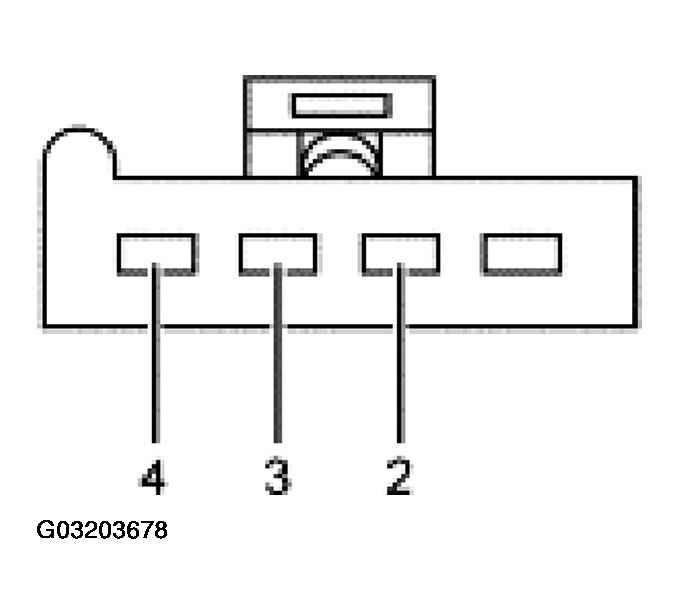

PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | CKT 20-HC21 (PK/BK) Battery voltage from PJB | Greater than 10 volts when switch is in the run position. |
| 3 | CKT31-HC21 (BK/GN) Ground | Continuity to ground, less than 5 ohms. |
| 4 | CKT 30-HC21 (RD/GN) Battery voltage from rear PDB | Greater than 10 volts at all times. |
