Module - RH: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove CJB fuse 6 (15A).
Remove the right quarter trim panel. Refer to TRIM PANEL -- QUARTER .
Disconnect the connectors.

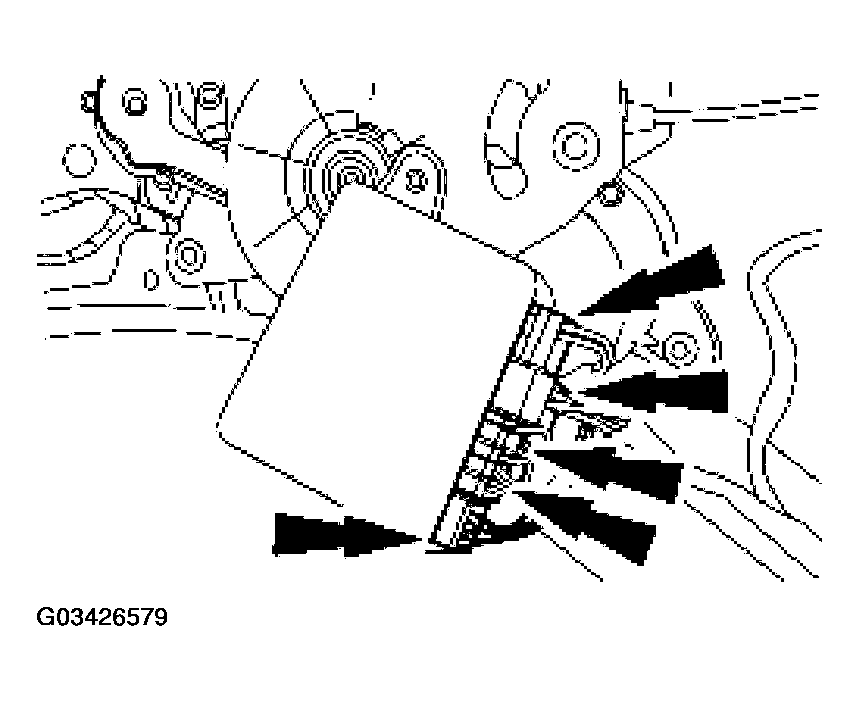

Fig 1: Disconnecting Connectors
Courtesy of FORD MOTOR CO.
Remove the screw.

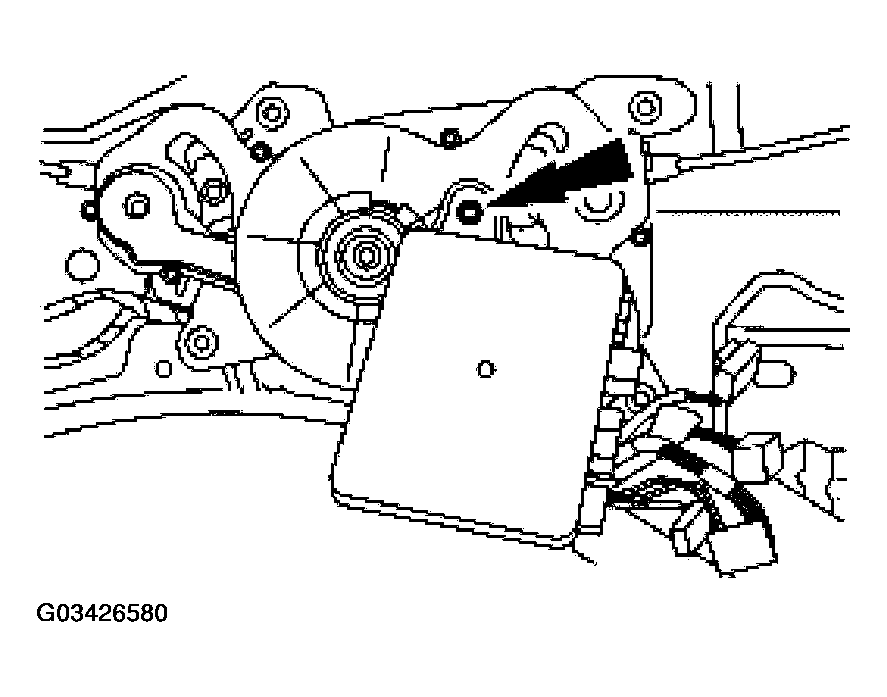

Fig 2: Removing Screw
Courtesy of FORD MOTOR CO.
Slide the control module off the actuator assembly.

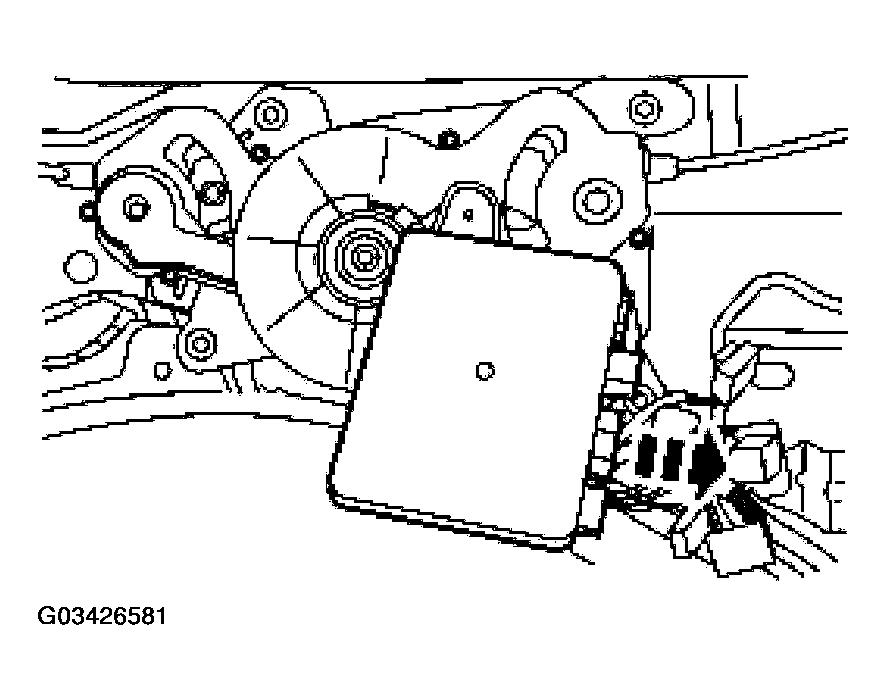

Fig 3: Sliding Control Module Off Actuator Assembly
Courtesy of FORD MOTOR CO.
