Switch - Speed Control Actuator: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

CAUTION: When separating the speed control actuator switch from the steering wheel, it is necessary to take precautions not to damage the steering wheel.

NOTE: Standard actuator switch shown, optional actuator switch similar.

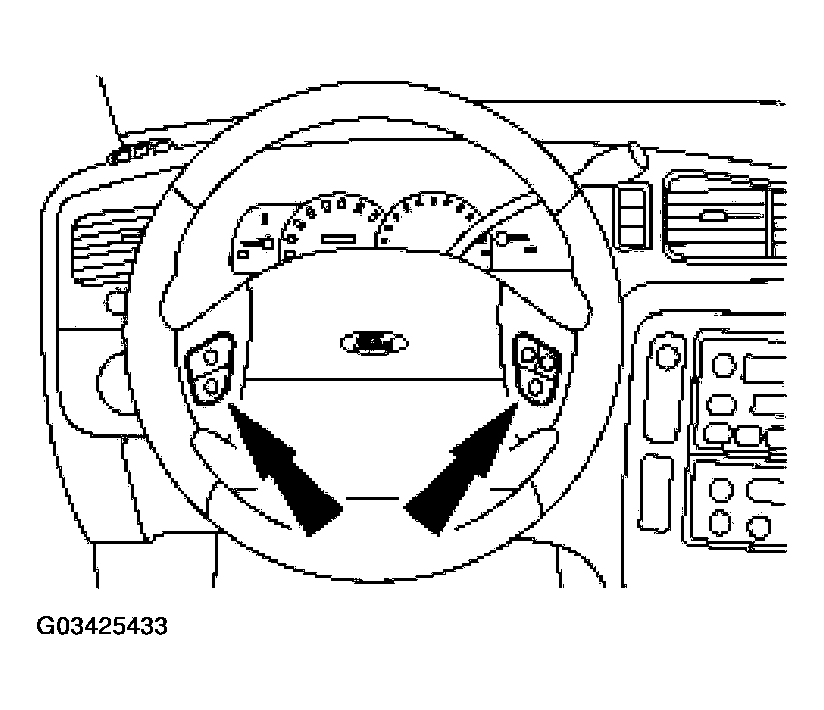

Fig 1: Releasing Speed Control Actuator Switch From Steering Wheel

Courtesy of FORD MOTOR CO.

Release the speed control actuator switch from the steering wheel.
Remove the speed control actuator switch.
1. Disconnect the speed control actuator switch electrical connector.
2. Remove the speed control actuator switch.

  Fig 2: Removing Speed Control Actuator Switch
  Courtesy of FORD MOTOR CO.
