Overhead Console: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

    All Vehicles

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Using a suitable screwdriver, detach the interior lamp from the overhead console.
    Fig 1: Detaching Interior Lamp From Overhead Console
    G01607534Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors and remove the interior lamp.

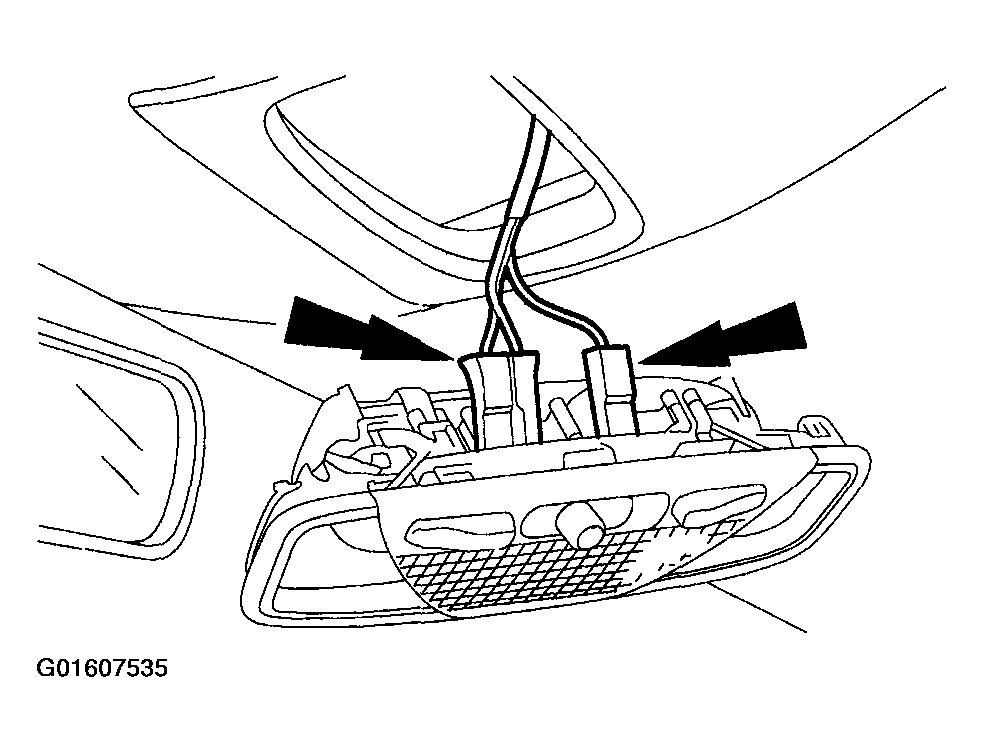

    Fig 2: Disconnecting Electrical Connectors
    G01607535Courtesy of FORD MOTOR CO.

    4. Vehicles With Manual Roof Opening Panel

  4. Remove the roof opening panel regulator handle.

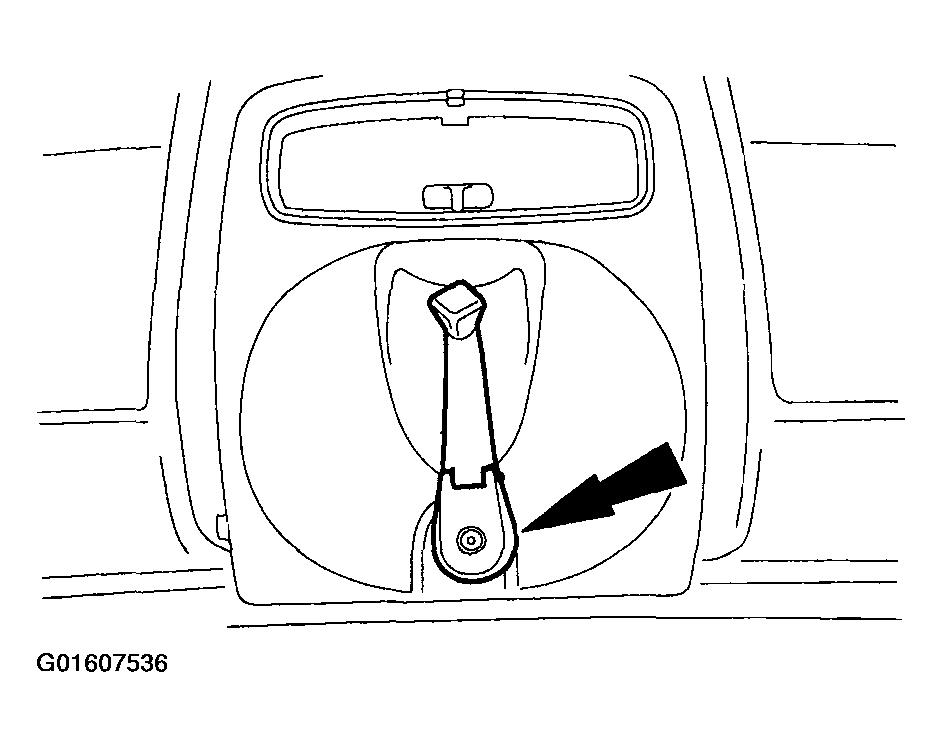

    Fig 3: Removing Roof Opening Panel Regulator Handle
    G01607536Courtesy of FORD MOTOR CO.
  5. Remove the overhead console.

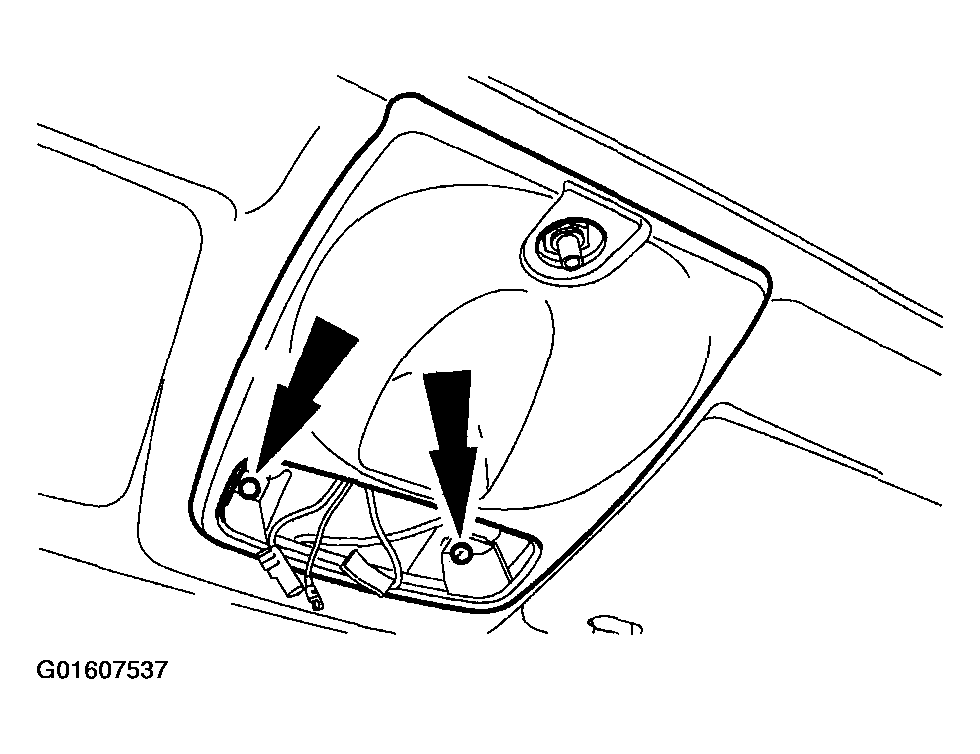

    Fig 4: Removing Overhead Console
    G01607537Courtesy of FORD MOTOR CO.

    6. Vehicles With Power Roof Opening Panel

    CAUTION: To avoid damage, the overhead console trim panel must only be pulled downwards enough to detach the retaining clips.

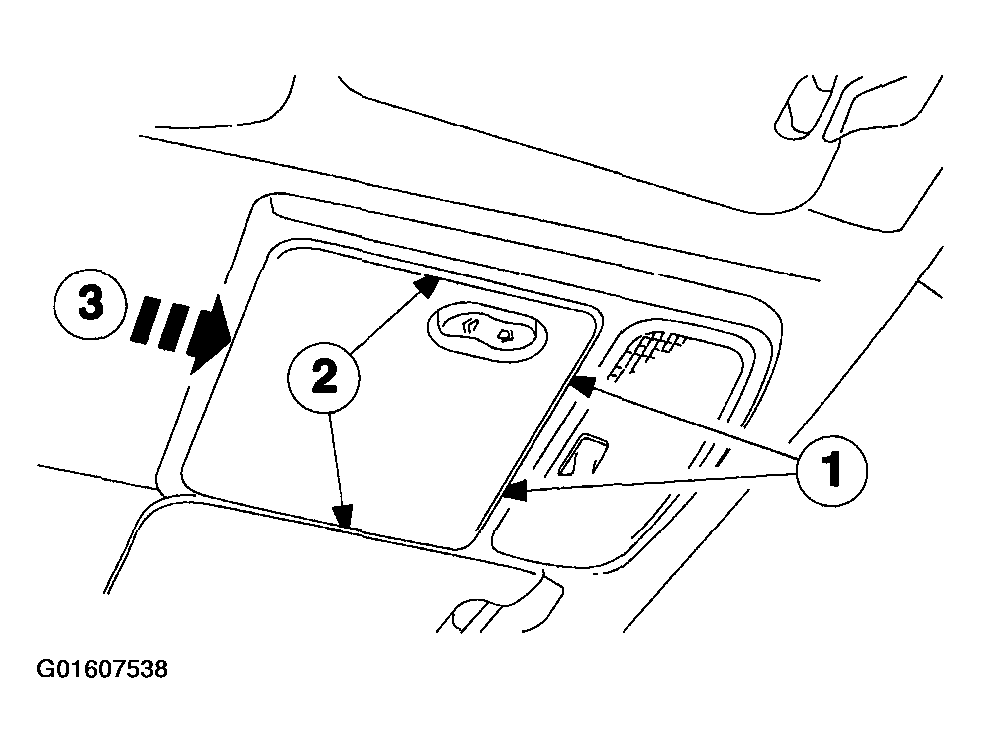

    Fig 5: Detaching Overhead Console Trim Panel From Overhead Console
    G01607538Courtesy of FORD MOTOR CO.
  6. Detach the overhead console trim panel from the overhead console.
    1. Using a suitable screwdriver, detach the front retaining clips.
    2. Pull the overhead console trim panel downwards to detach the side retaining clips.
    3. Push the overhead console trim panel forwards to detach the rear retaining clips.
  7. Remove the overhead console trim panel.
    • Disconnect the power roof opening panel control switch electrical connector.

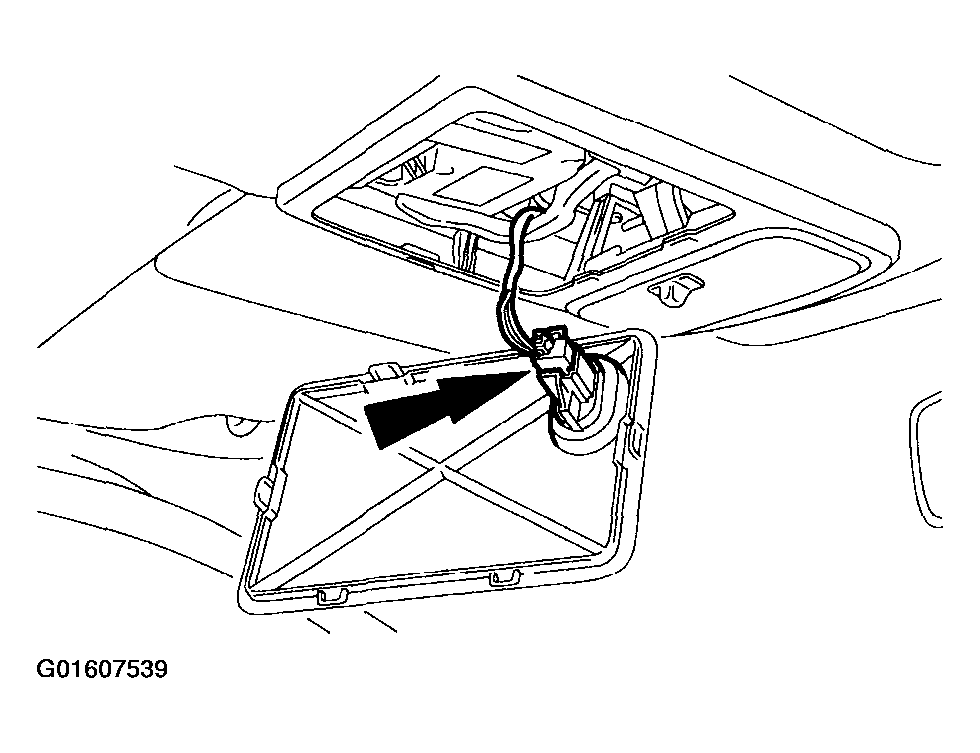

    Fig 6: Disconnecting Power Roof Opening Panel Control Switch Electrical Connector
    G01607539Courtesy of FORD MOTOR CO.
  8. Detach the overhead console from the roof panel.
    • Remove the retaining screws.
    Fig 7: Detaching Overhead Console From Roof Panel
    G01607540Courtesy of FORD MOTOR CO.
  9. Remove the overhead console.
    1. Detach the front retaining clips.
    2. Detach the side retaining clips.
    3. Push the overhead console forwards to detach the rear retaining clips.

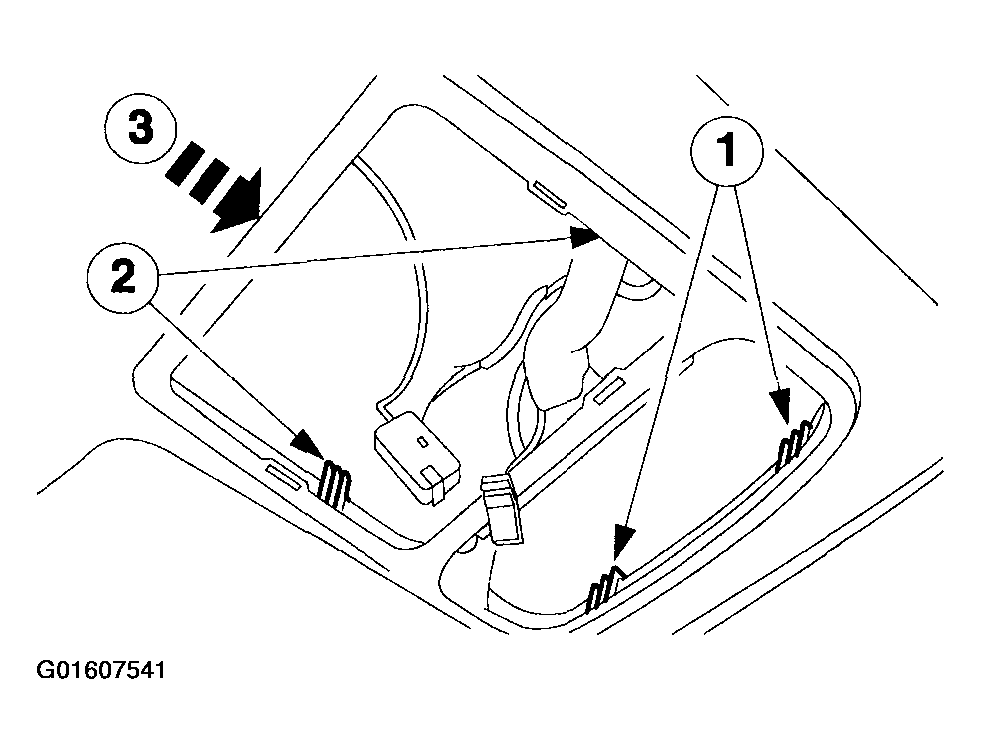

    Fig 8: Removing Overhead Console
    G01607541Courtesy of FORD MOTOR CO.
