Section 321 (Engine Cooling)
>>
Diagnosis And Testing
>>
Engine Cooling
>>
Symptom Chart
Symptom Chart
WARNING:
This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

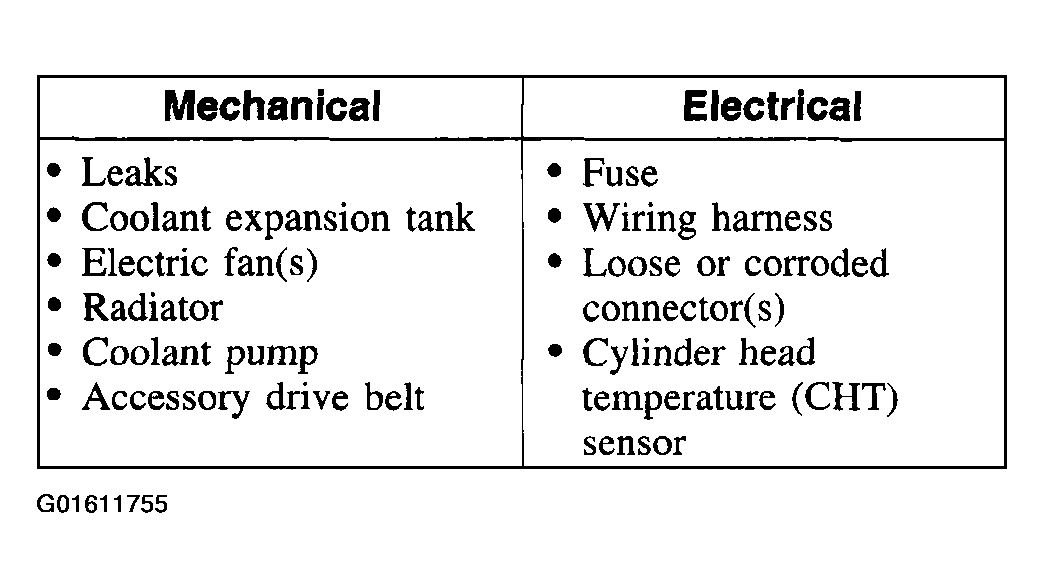

Fig 1: Engine Cooling Trouble Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

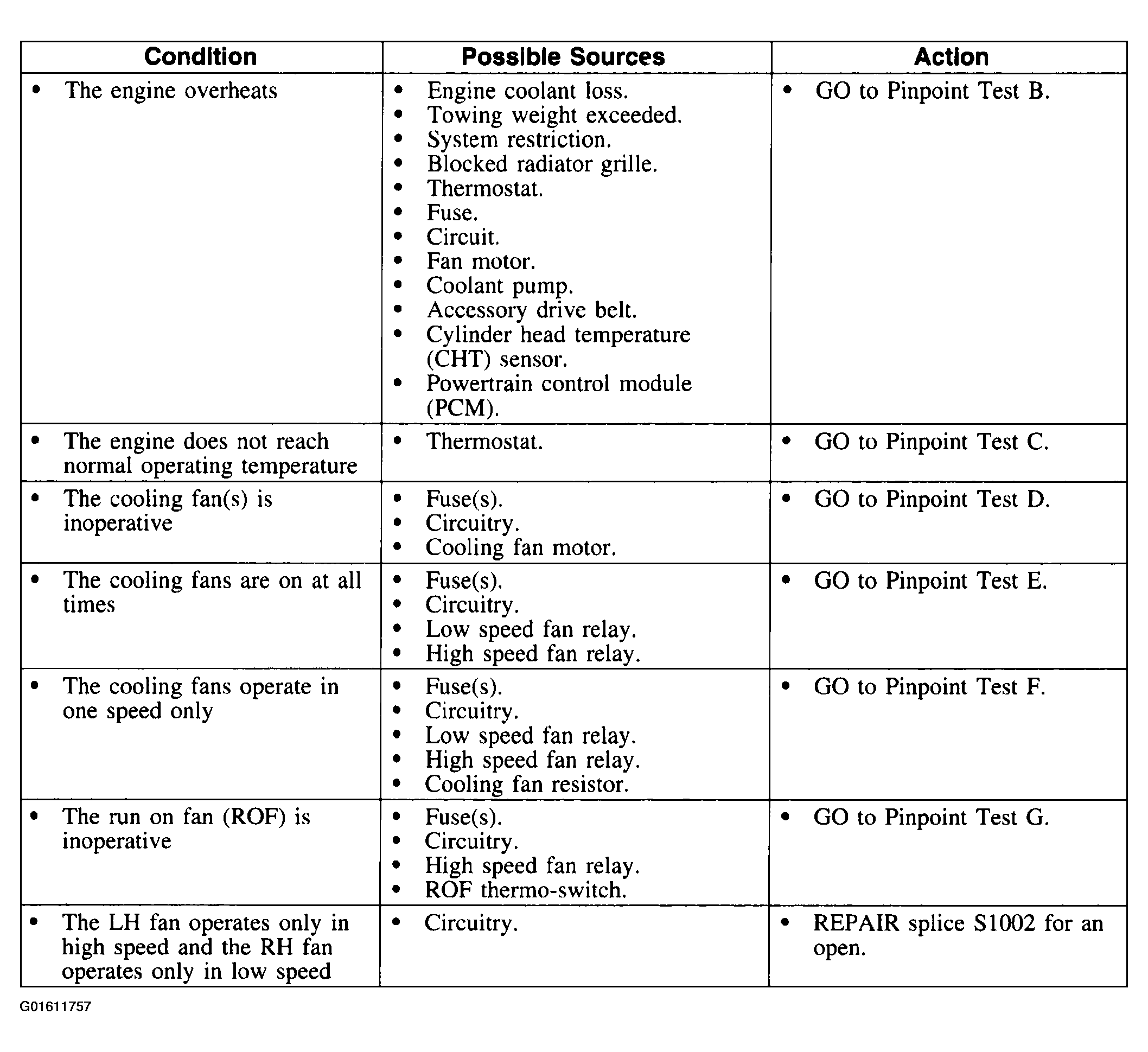

Fig 2: Engine Cooling Trouble Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
