Checking Procedure

WARNING: This page is about a different car, the 2004 Lincoln LS, 2003 Lincoln LS, and 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

To calculate ride height, measure and record dimension "C". See Fig 1 , Fig 2 and Fig 3 . See RIDE HEIGHT SPECIFICATIONS table. If ride height does not meet specification, and no unusual load is present, check for damaged components or non-standard replacement suspension components.

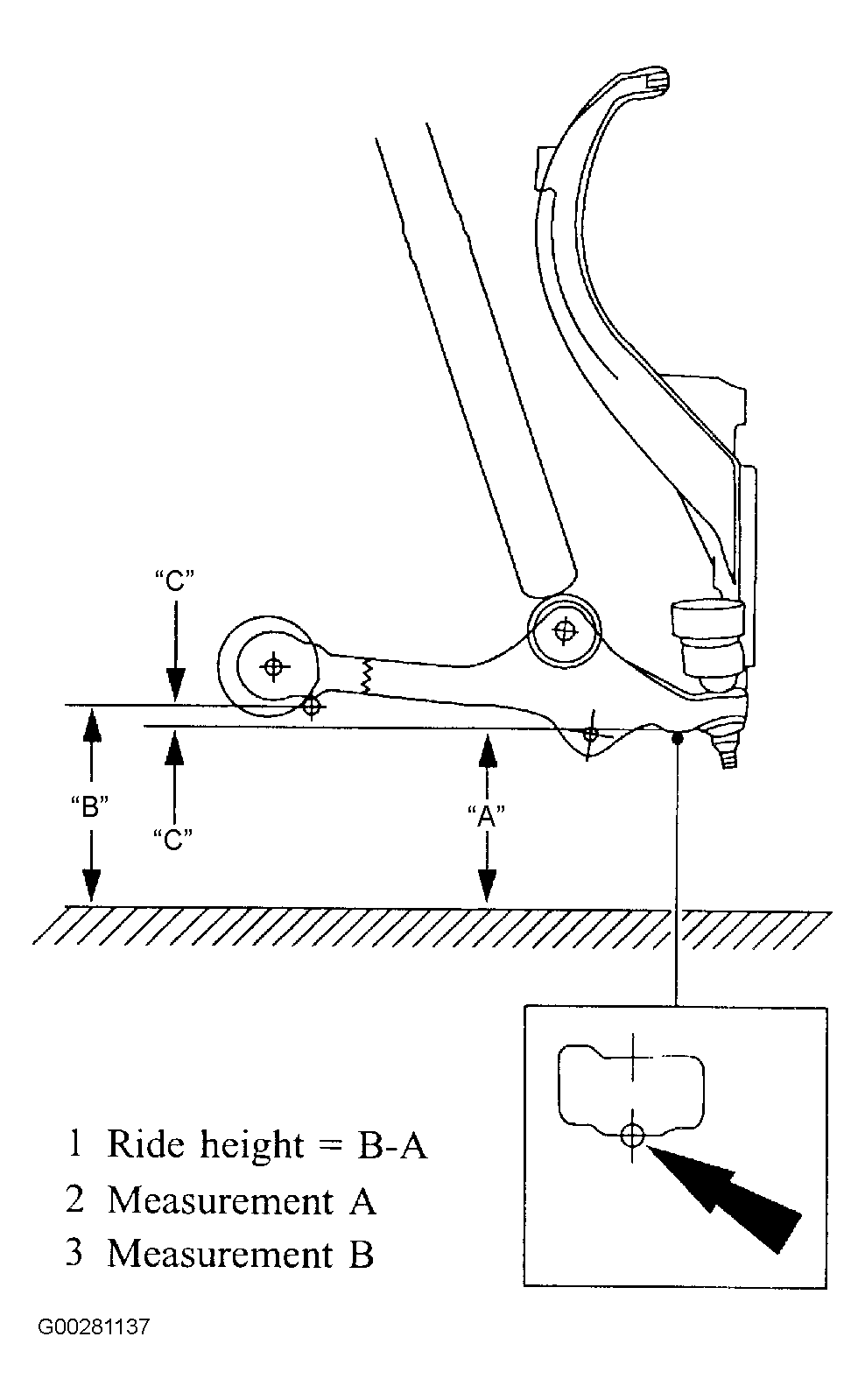

Fig 1: Front Ride Height Measurement (2002)

Courtesy of FORD MOTOR CO.

Fig 2: Front Ride Height Measurement (2003-04)

Courtesy of FORD MOTOR CO.

Fig 3: Rear Ride Height Measurement

Courtesy of FORD MOTOR CO.

RIDE HEIGHT SPECIFICATIONS

Application

⁽¹⁾ In. (mm)

2002

Front

2.1-2.7 (53-69)

Rear

0.7-1.3 (28-34)

2003 & 2004

Front

1.0-1.7 (27-43)

Rear

0.4-1.0 (11-27)

⁽¹⁾	See procedures for measurement calculations/points.
