Timing Belt: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Since the engine is not free-wheeling, timing procedures must be followed exactly or piston and valve damage can occur.
CAUTION: The camshaft must be held stationary with an open-ended wrench or a suitable pair of locking pliers. Do not use the alignment tool to hold the camshaft in position or damage to the camshaft may occur.
    NOTE: Do not tighten the bolts. The camshaft timing pulleys must be able to turn freely on the camshafts.

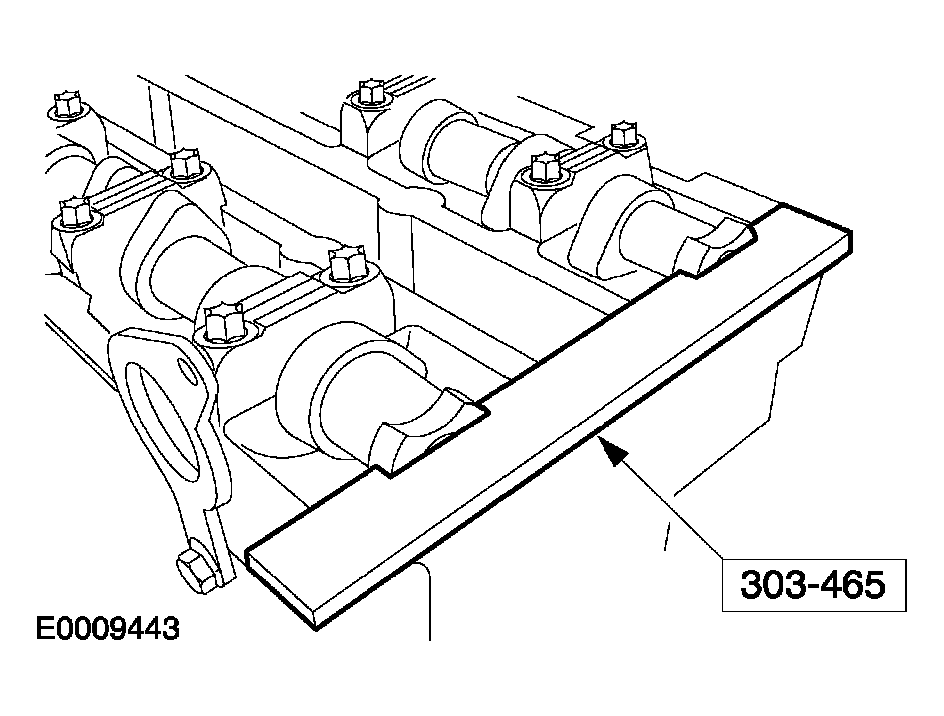

    Fig 1: Inserting Special Tool Into The Camshafts
    G04034987Courtesy of FORD MOTOR CO.
  1. Turn the camshafts to the ignition position on cylinder No. 1 and insert the special tool into the camshafts.
  2. Remove the blanking plug and install the special tool.
    Fig 2: Removing Blanking Plug
    G04034988Courtesy of FORD MOTOR CO.
  3. NOTE: At TDC the crankshaft keyway is in the 12 o'clock position.
    NOTE: Rotate the crankshaft clockwise.
    NOTE: Make sure that the crankshaft contacts the timing peg.

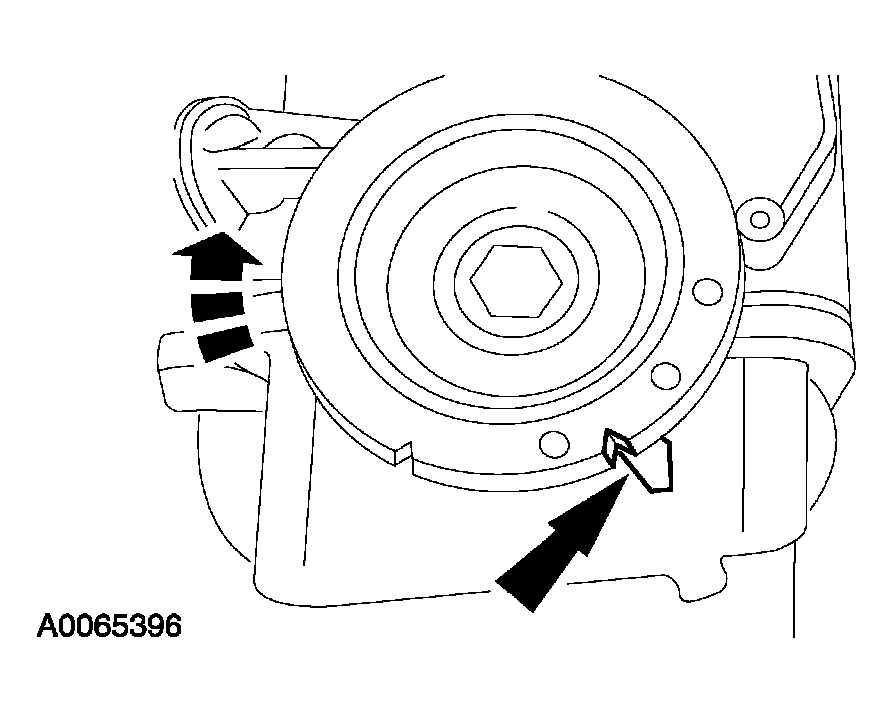

    Fig 3: Identifying Crankshaft Keyway Position
    G04034989Courtesy of FORD MOTOR CO.
  4. Rotate the crankshaft to TDC on cylinder No. 1.
  5. CAUTION: Do not kink the timing belt (do not bend the timing belt less than a diameter of 35 mm).
    CAUTION: Do not rotate the crankshaft, check that it is still resting against the timing pin.
    NOTE: The lug of the belt tensioner must not be hooked into the sheet metal cover during timing belt installation.

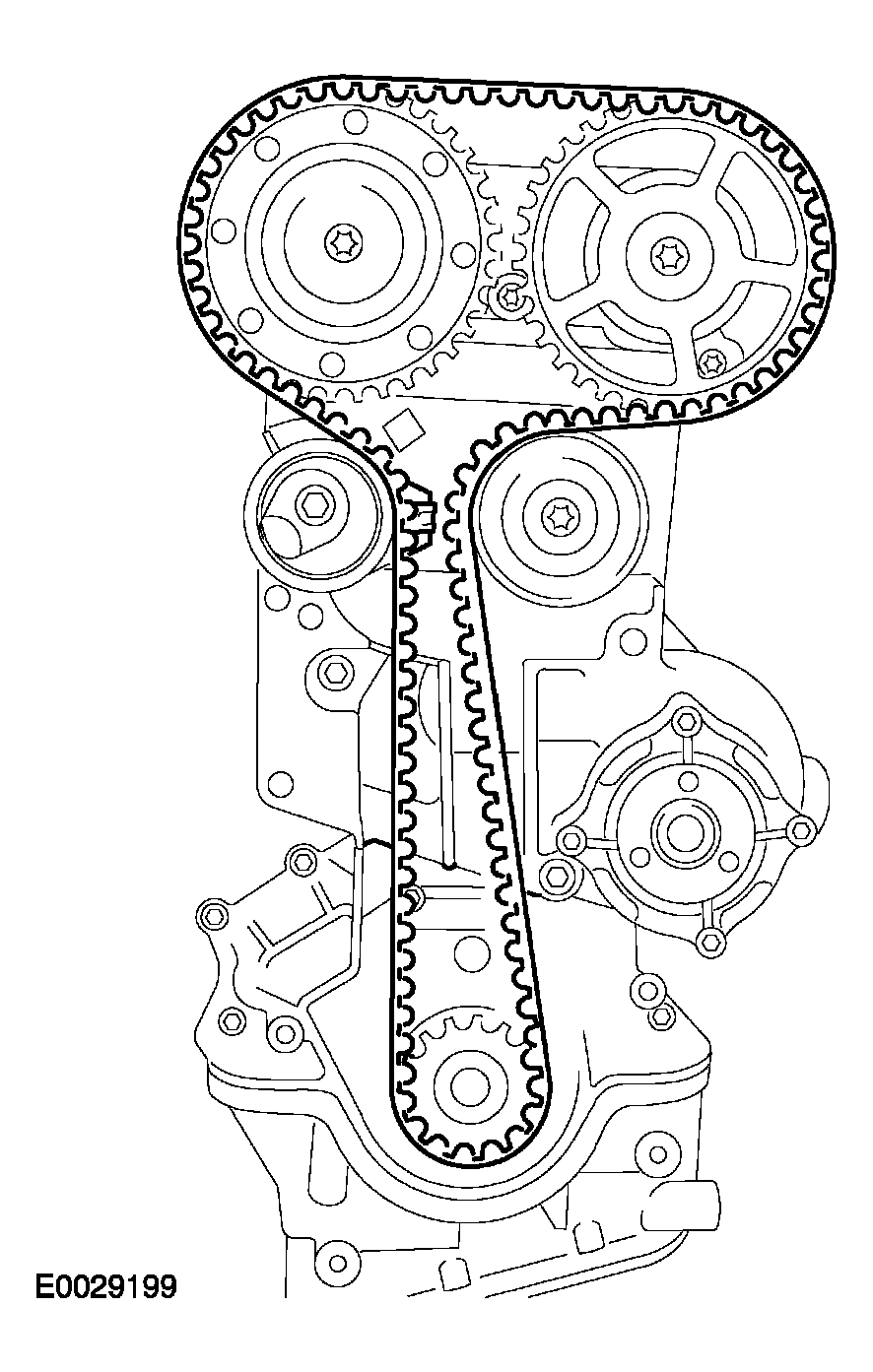

    Fig 4: Installing Timing Belt
    G04034990Courtesy of FORD MOTOR CO.
  6. Install a new timing belt.
    • Starting from the crankshaft timing belt pulley and working counterclockwise install the timing belt, keeping it under tension.
  7. CAUTION: Incorrect timing belt tension will result in incorrect valve timing.

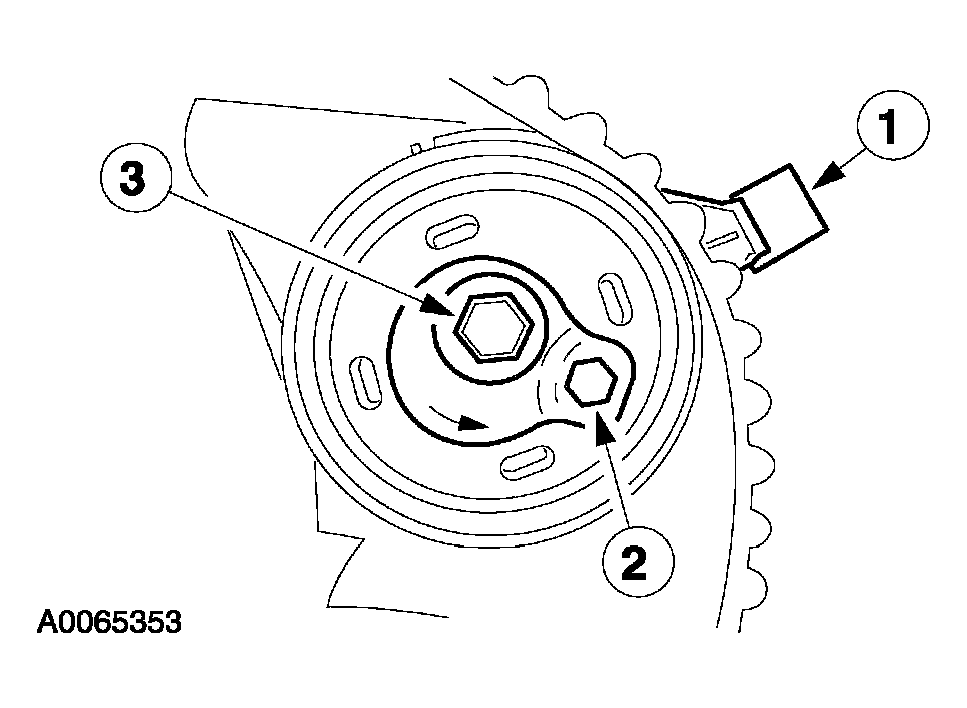

    Fig 5: Pretension The Timing Belt
    G04034991Courtesy of FORD MOTOR CO.
  8. Pretension the timing belt.
    1. Rotate the tensioner locating tab counterclockwise and insert the locating tab into the slot in the rear timing cover.
    2. Position the hexagonal key slot in the tensioner adjusting washer to the 4 o'clock position.
    3. Tighten the attaching bolt enough to seat the tensioner firmly against the rear timing cover, but still allow the tensioner adjusting washer to be rotated using a 6 mm hexagonal key.
  9. CAUTION: Tension the timing belt, working counterclockwise.

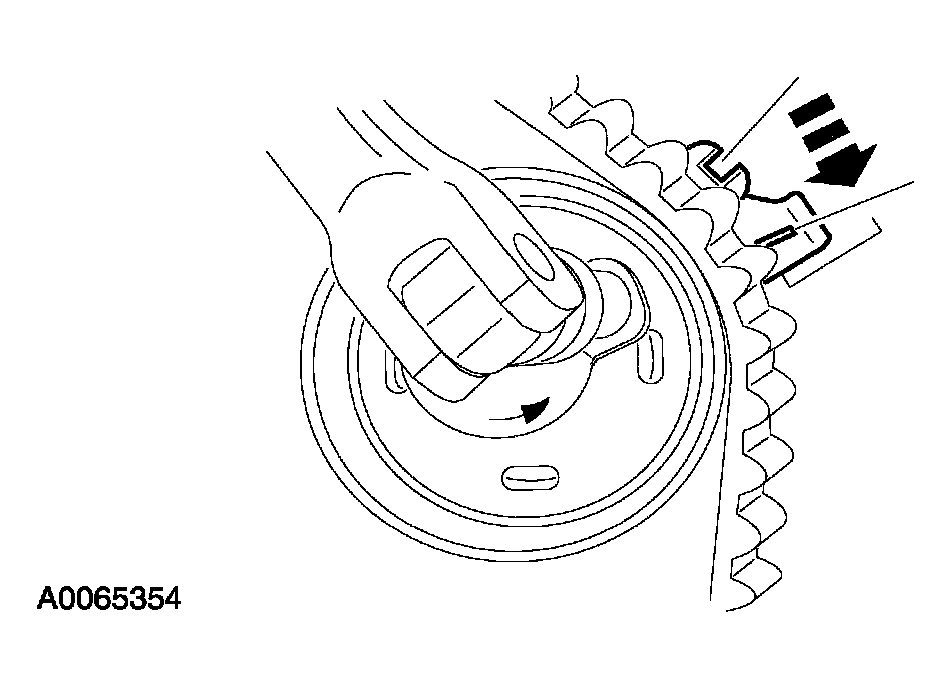

    Fig 6: Rotating Adjusting Washer Counterclockwise
    G04034992Courtesy of FORD MOTOR CO.
  10. Using the hexagonal key, rotate the adjusting washer counterclockwise until the notch in the pointer is centered over the index line on the locating tab (the pointer will move clockwise during adjustment).
  11. Tighten the bolt, while holding the adjusting washer in position.

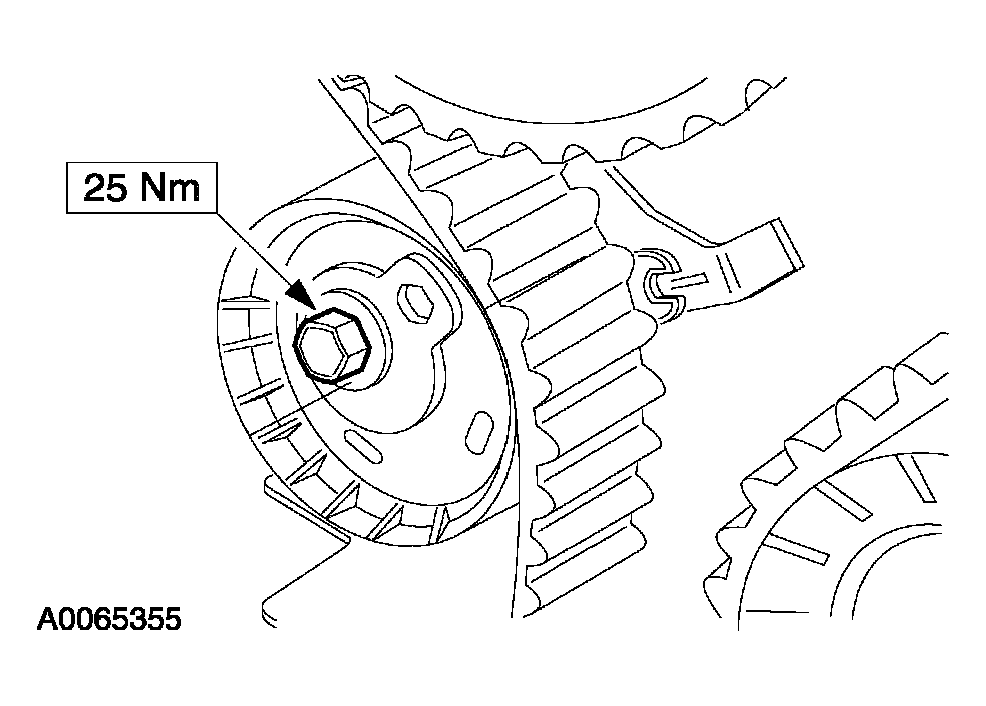

    Fig 7: Tightening Bolt
    G04034993Courtesy of FORD MOTOR CO.
  12. NOTE: Use an open-ended wrench to prevent the camshaft from rotating.

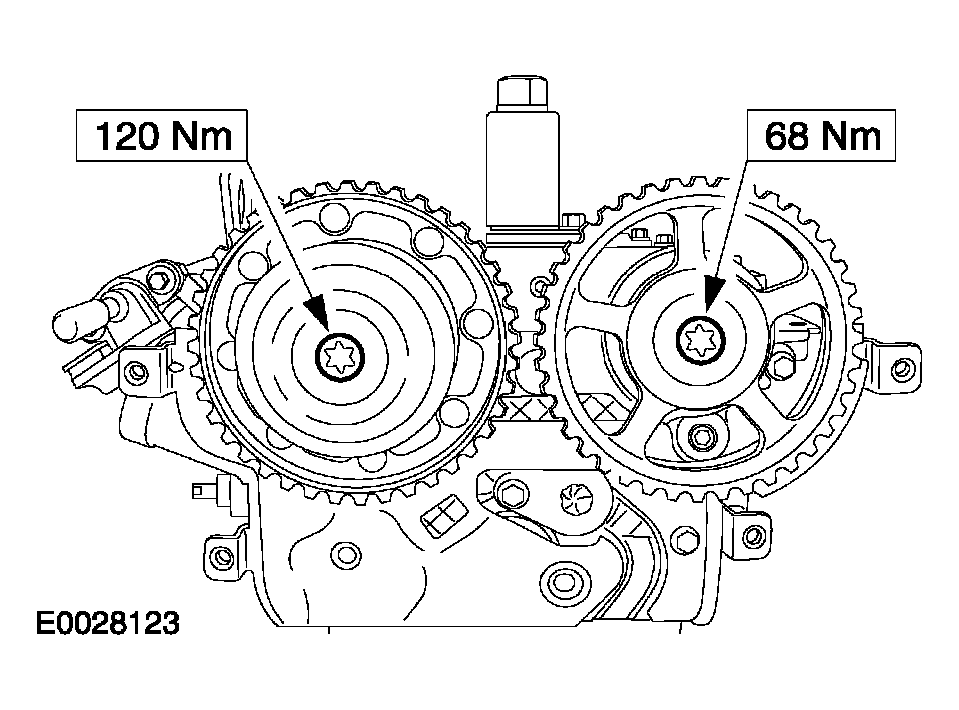

    Fig 8: Tightening Camshaft Pulley Retaining Bolts
    G04034994Courtesy of FORD MOTOR CO.
  13. Tighten the camshaft pulley retaining bolts.
  14. Remove the special tool.
    Fig 9: Removing Special Tool
    G04034995Courtesy of FORD MOTOR CO.
  15. Remove the special tool 303-465 from the camshafts.
  16. NOTE: Turn the crankshaft two revolutions in the normal direction of rotation.
  17. Check the valve timing by inserting the special tool. Correct it if necessary.
    • Install the special tool and make sure that the it is contact with the crankshaft.
    • Install the special tool into the camshafts; if necessary loosen the timing pulleys and correct the camshaft alignment.
    • Remove the special tools.
  18. NOTE: Use an open-ended wrench to prevent the camshaft from rotating.
    Fig 10: Installing Intake Camshaft Pulley Blanking Plug
    G04034996Courtesy of FORD MOTOR CO.
  19. Install the intake camshaft pulley blanking plug.
  20. Install the blanking plug.

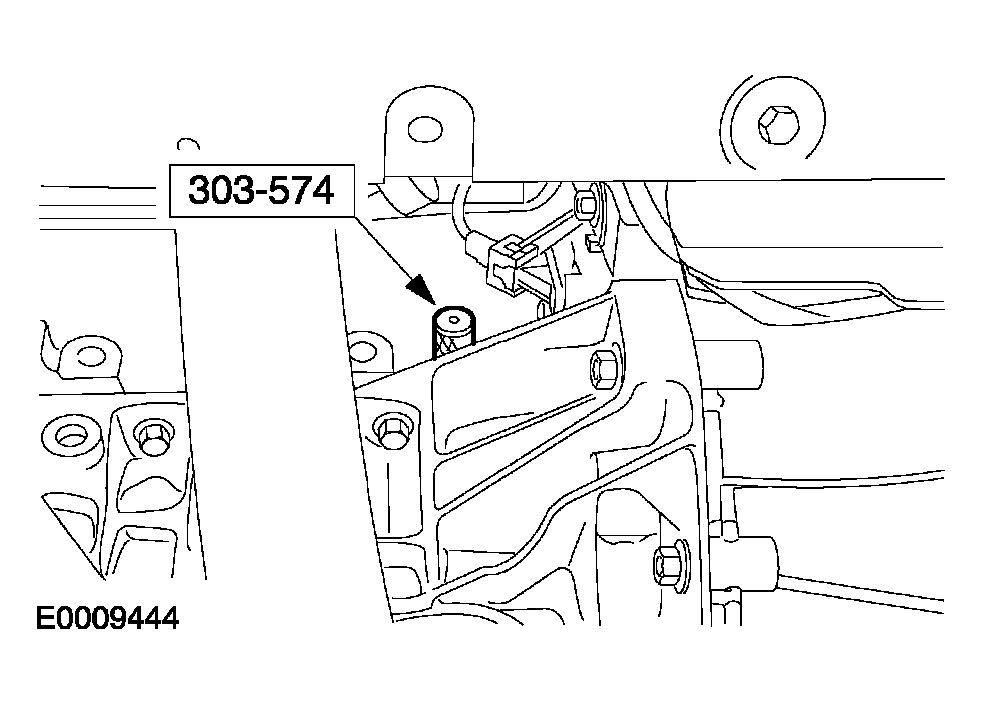

    Fig 11: Installing Blanking Plug
    G04034997Courtesy of FORD MOTOR CO.
  21. Install the spark plugs.
    Fig 12: Installing Spark Plugs
    G04034998Courtesy of FORD MOTOR CO.
  22. CAUTION: Use a blunt object (a plastic cable tie) to apply the silicone grease, to avoid damaging the spark plug connectors.
    CAUTION: Push on the spark plug connectors, keeping them in line with the spark plugs.
    NOTE: Coat the inside of the spark plug connectors with silicone grease to a depth of 5-10 mm.

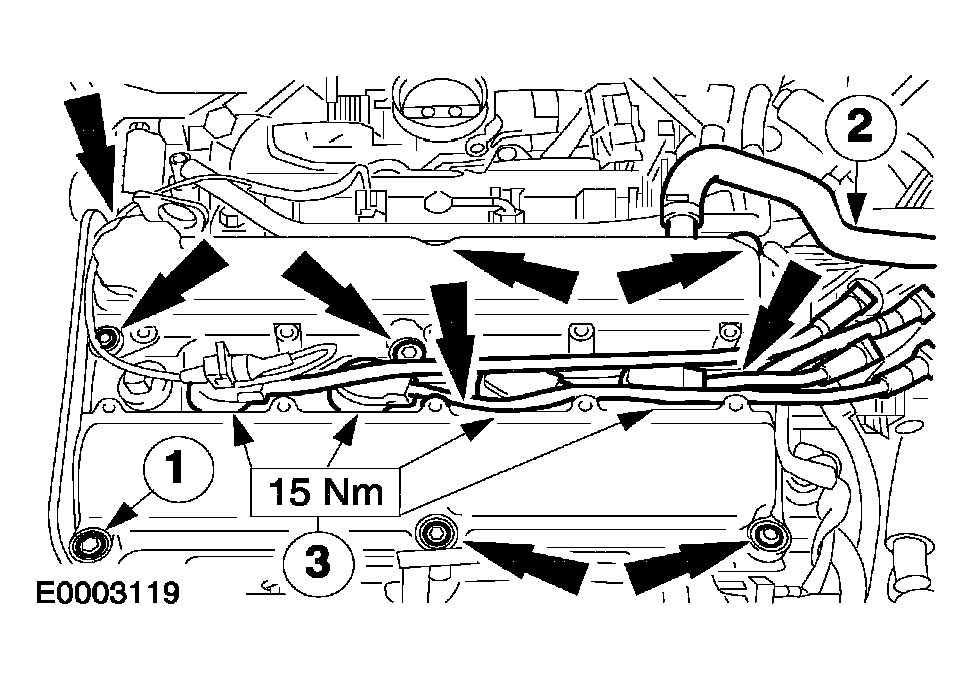

    Fig 13: Installing Valve Cover
    G04034999Courtesy of FORD MOTOR CO.
  23. Install the valve cover.
    1. Tighten the bolts in two stages.
      • Stage 1: 2 Nm.
      • Stage 2: 7 Nm.
    2. Attach the PCV hose to the valve cover.
      • Connect the VCT actuator electrical connector.
    3. Coat the spark plug thread with anti-seize grease, screw in the spark plugs and push in the spark plug connector until it engages.
  24. Connect the VCT valve electrical connector.

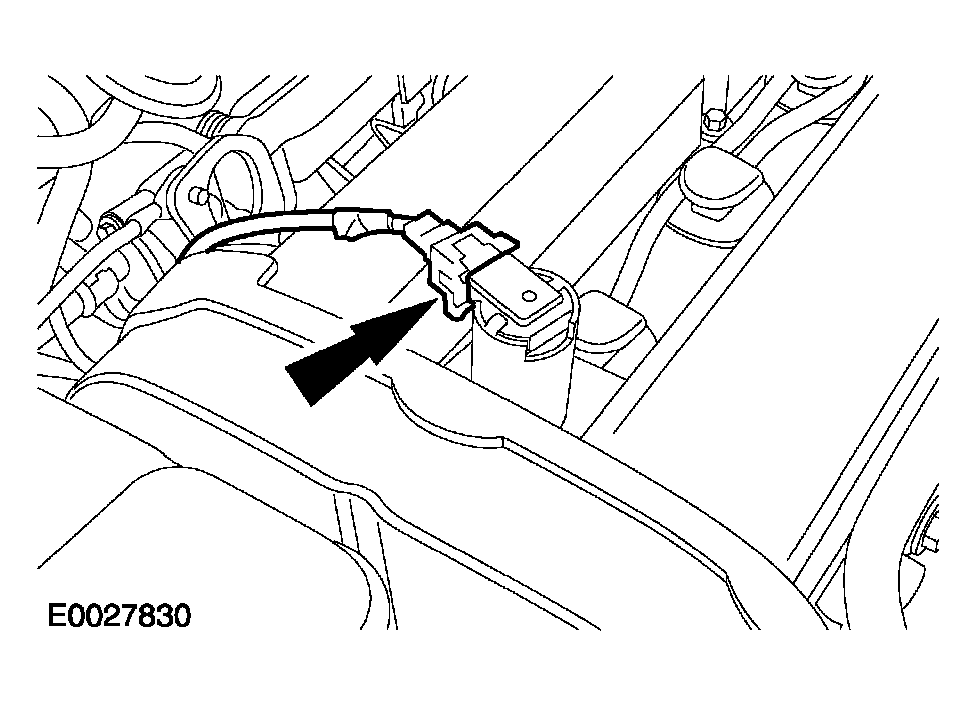

    Fig 14: Connecting VCT Valve Electrical Connector
    G04035000Courtesy of FORD MOTOR CO.
  25. Install the engine cover.

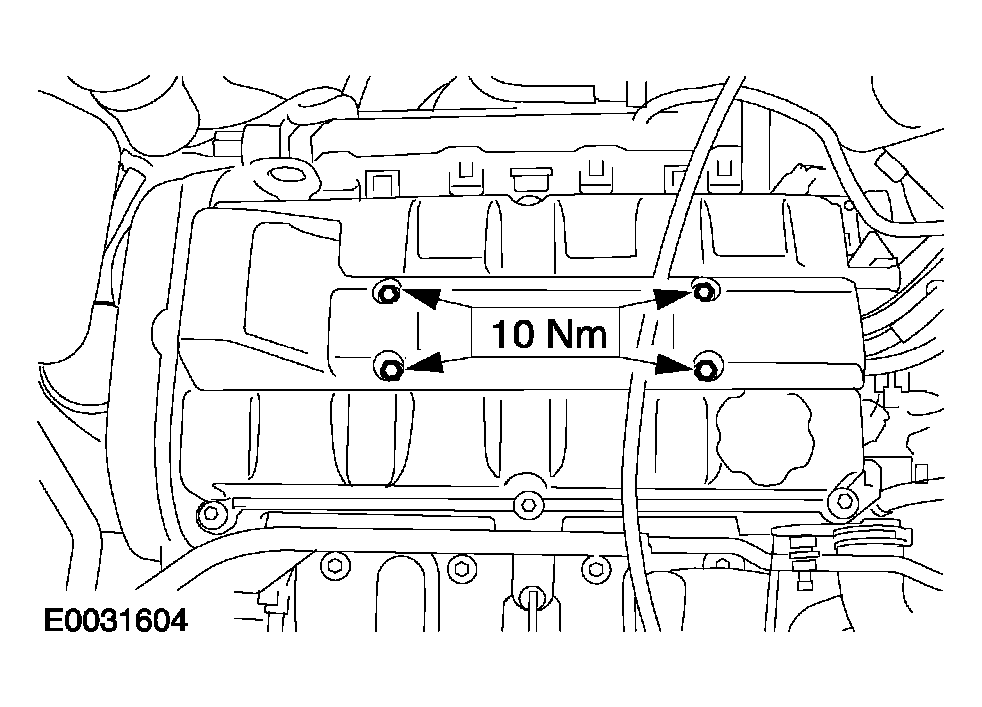

    Fig 15: Installing Engine Cover
    G04035001Courtesy of FORD MOTOR CO.
  26. Install the ignition coil pack cover.
    1. Attach the retaining clips.
    2. Attach the coolant pipe to the retaining clip.

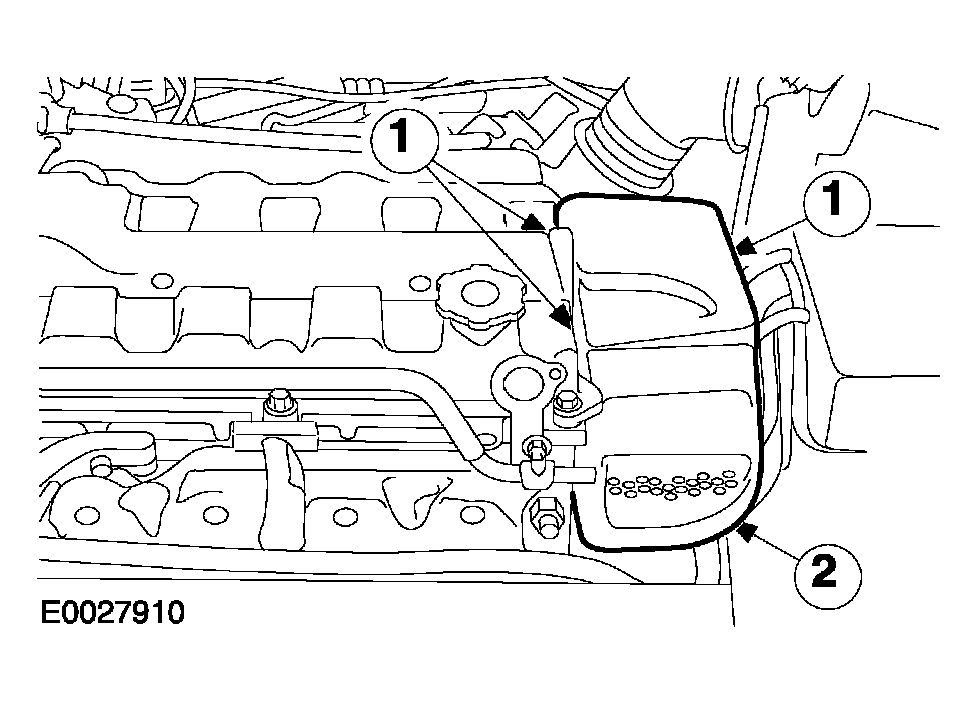

    Fig 16: Installing Ignition Coil Pack Cover
    G04035002Courtesy of FORD MOTOR CO.
  27. NOTE: Position the upper timing belt cover and the center timing belt.

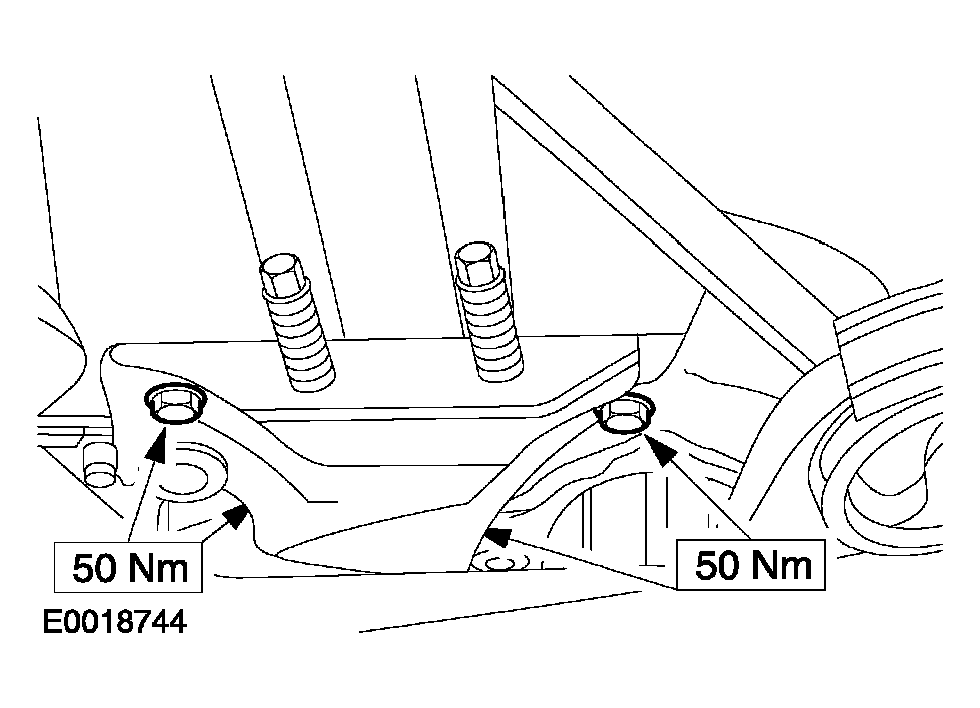

    Fig 17: Installing Engine Front Mount Bracket
    G04035003Courtesy of FORD MOTOR CO.
  28. Install the engine front mount bracket.
  29. NOTE: Check the seating of the timing belt upper cover gasket and correct as necessary.

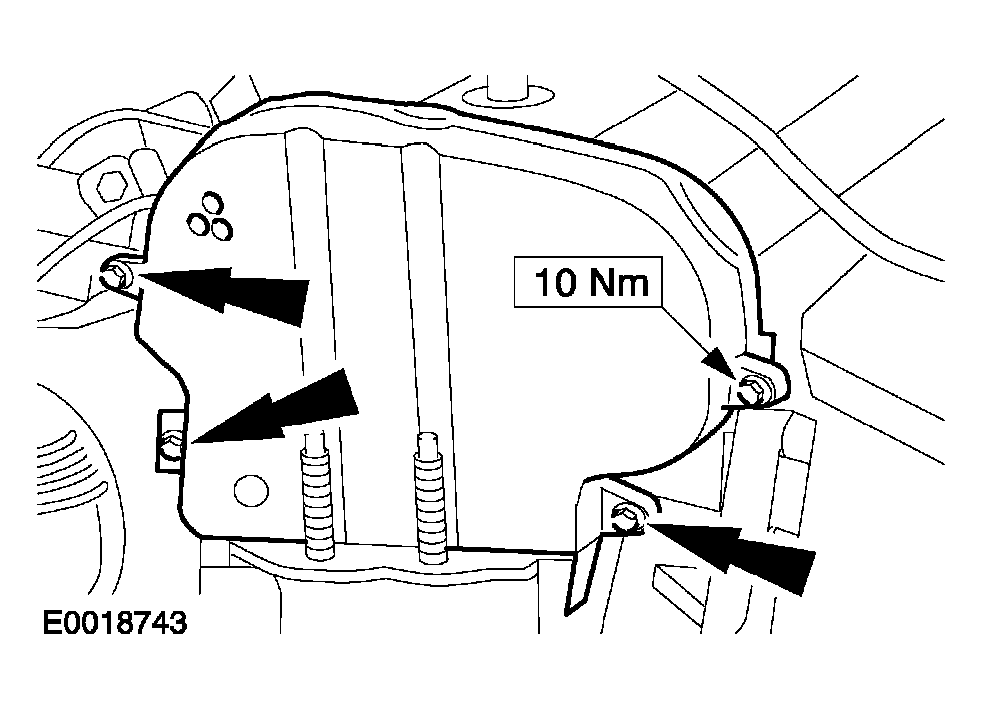

    Fig 18: Attaching Timing Belt Upper Cover
    G04035004Courtesy of FORD MOTOR CO.
  30. Attach the timing belt upper cover.
  31. Install the accessory drive belt idler.

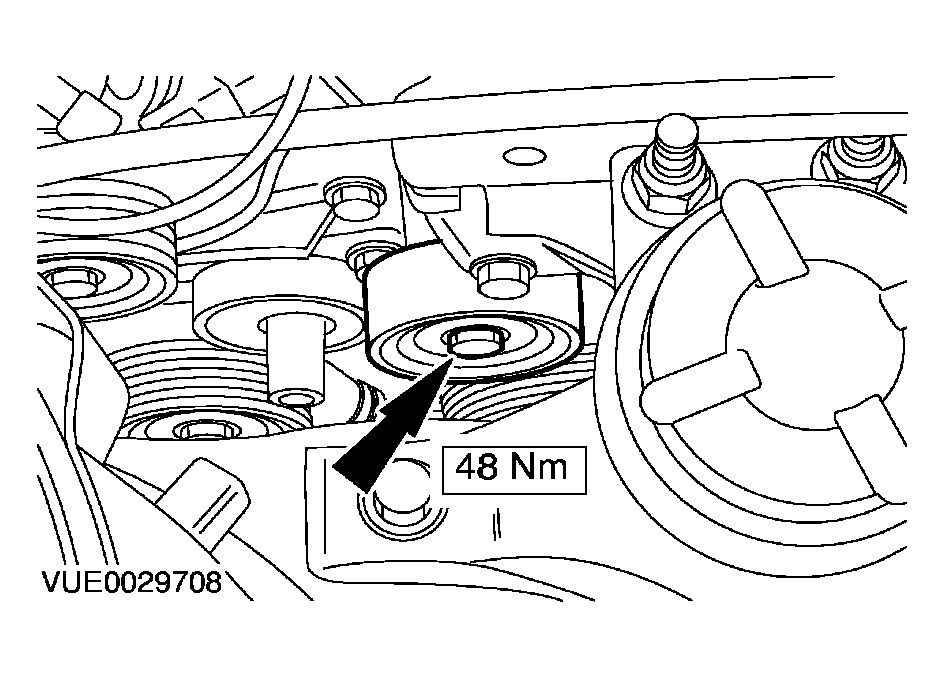

    Fig 19: Installing Accessory Drive Belt Idler
    G04035005Courtesy of FORD MOTOR CO.
  32. Install the engine front mount.

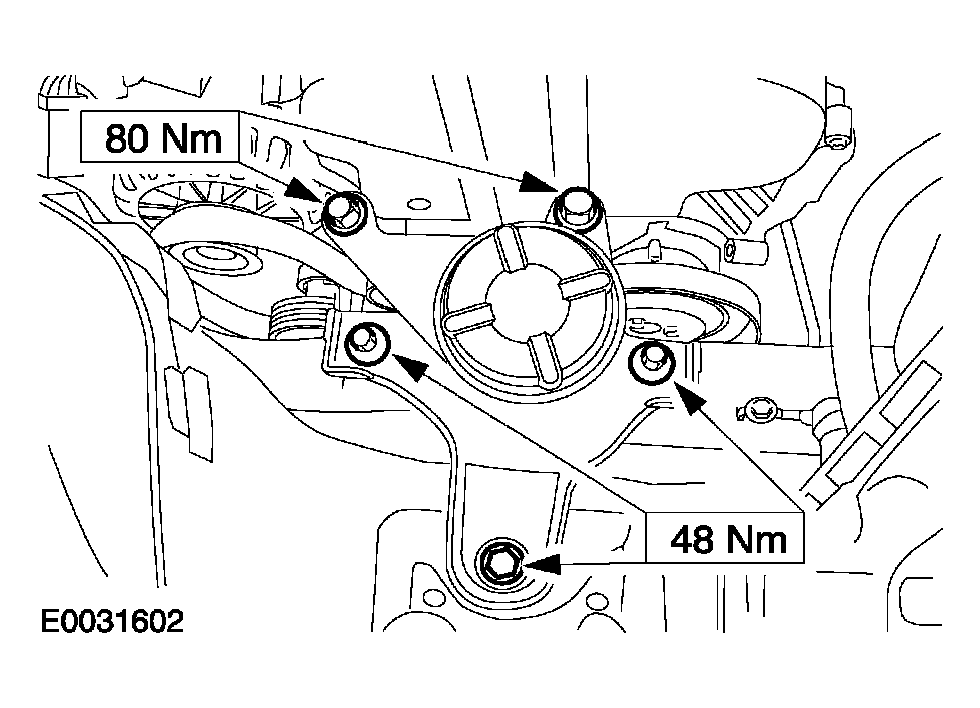

    Fig 20: Installing Engine Front Mount
    G04035006Courtesy of FORD MOTOR CO.
  33. Attach the power steering pump fluid reservoir.

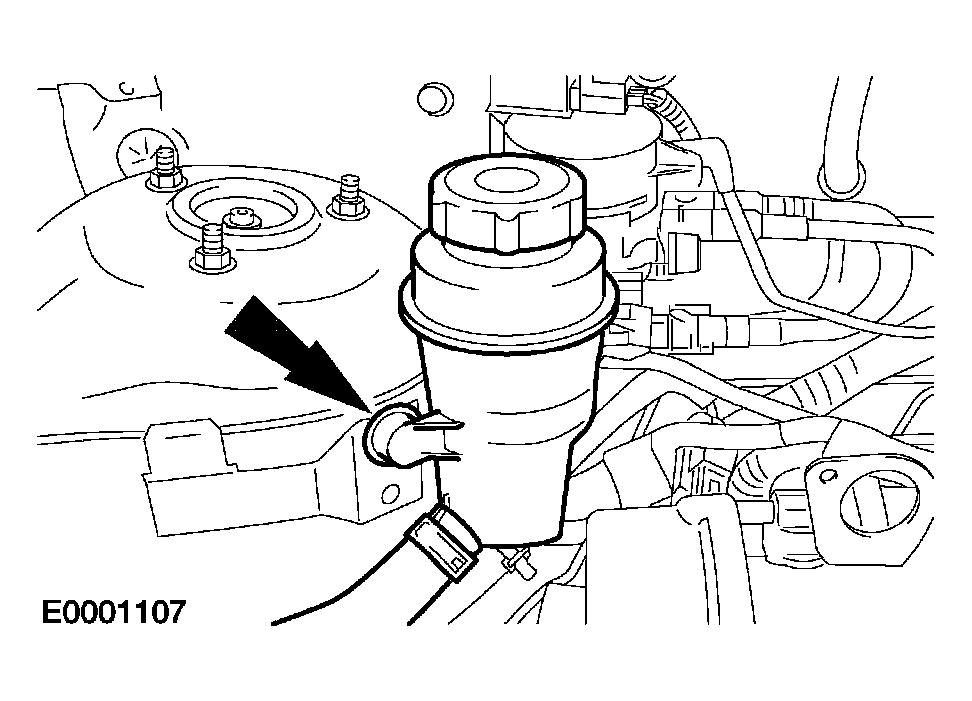

    Fig 21: Attaching Power Steering Pump Fluid Reservoir
    G04035007Courtesy of FORD MOTOR CO.
  34. Attach the coolant expansion tank.

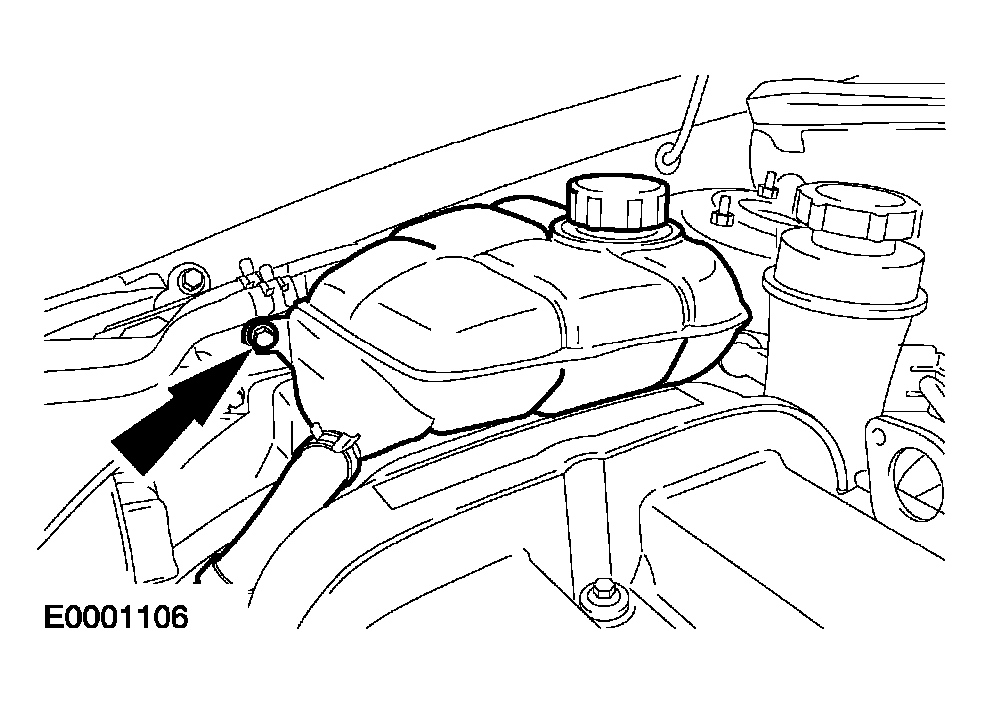

    Fig 22: Attaching Coolant Expansion Tank
    G04035008Courtesy of FORD MOTOR CO.
  35. Remove the hydraulic jack and wooden block.
  36. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
  37. Attach the lower timing belt cover.

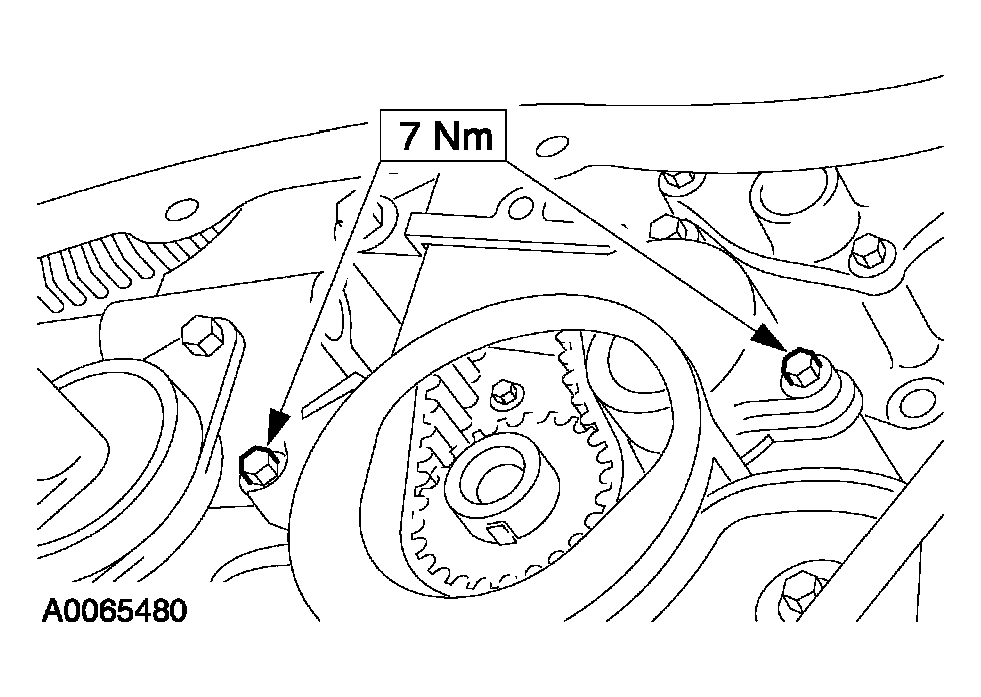

    Fig 23: Attaching Lower Timing Belt Cover
    G04035009Courtesy of FORD MOTOR CO.
  38. NOTE: Do not tighten the bolts at this stage.
    Fig 24: Installing Coolant Pump Pulley Retaining Bolts
    G04035010Courtesy of FORD MOTOR CO.
  39. Install the coolant pump pulley retaining bolts.
  40. Install the crankshaft pulley.

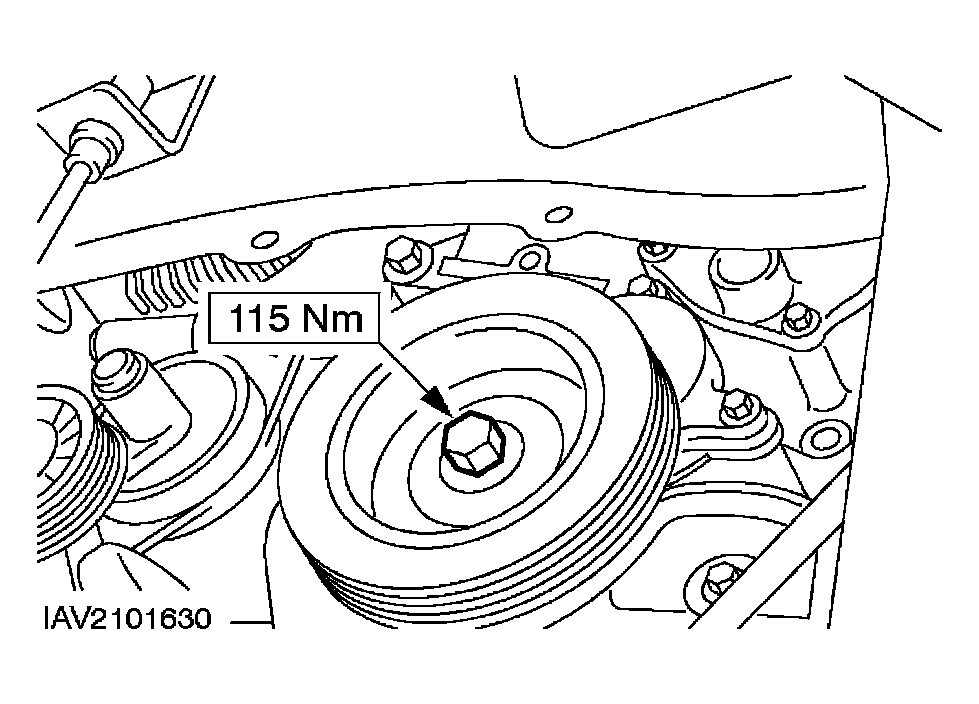

    Fig 25: Installing Crankshaft Pulley
    G04035011Courtesy of FORD MOTOR CO.
  41. NOTE: Direction of travel on a used drive belt.

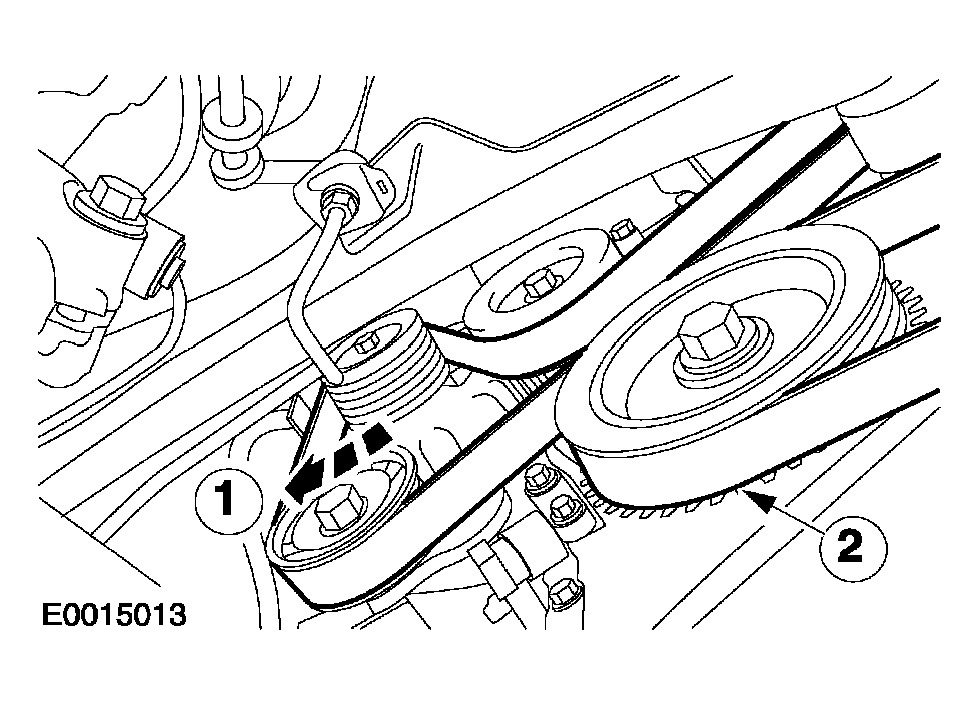

    Fig 26: Installing Accessory Drive Belt
    G04035012Courtesy of FORD MOTOR CO.
  42. Install the accessory drive belt.
    1. Rotate the accessory drive belt tensioner clockwise.
    2. Install the accessory drive belt.
  43. Tighten the bolts on the coolant pump pulley.
    Fig 27: Tightening Bolts On Coolant Pump Pulley
    G04035013Courtesy of FORD MOTOR CO.
  44. Attach the drive belt cover.
    Fig 28: Attaching Drive Belt Cover

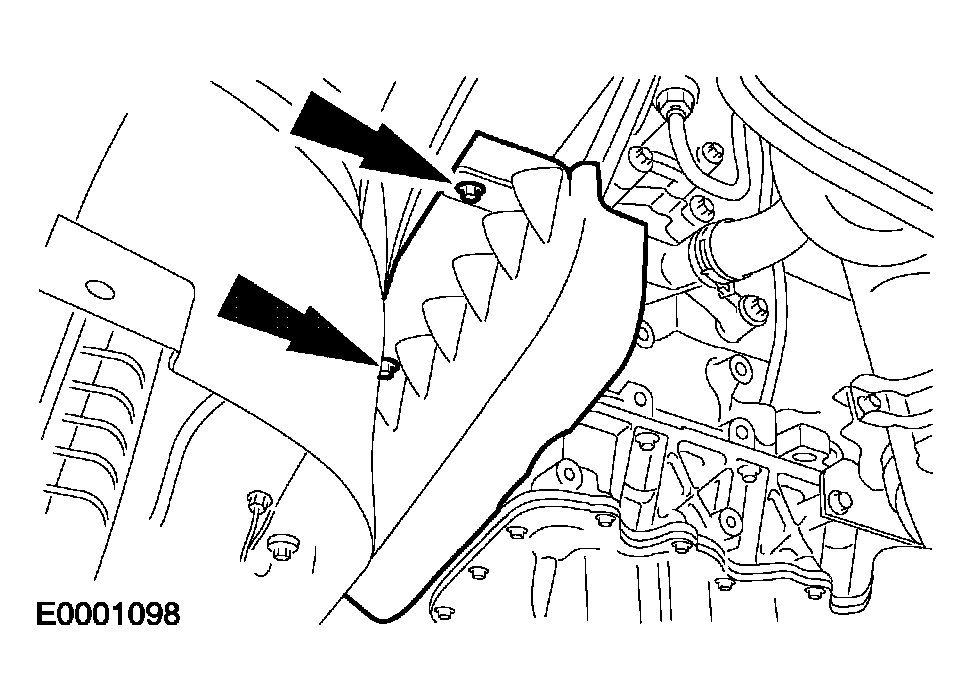

    G04035014Courtesy of FORD MOTOR CO.
  45. Lower the vehicle.
  46. Connect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  47. NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  48. Standard finishing operations:
    • Connect the battery negative cable.
    • Install the battery cover.
    • Check fluid levels and correct if necessary.
    • Check the routing of vacuum hoses and cables and secure them with cable ties.
