Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

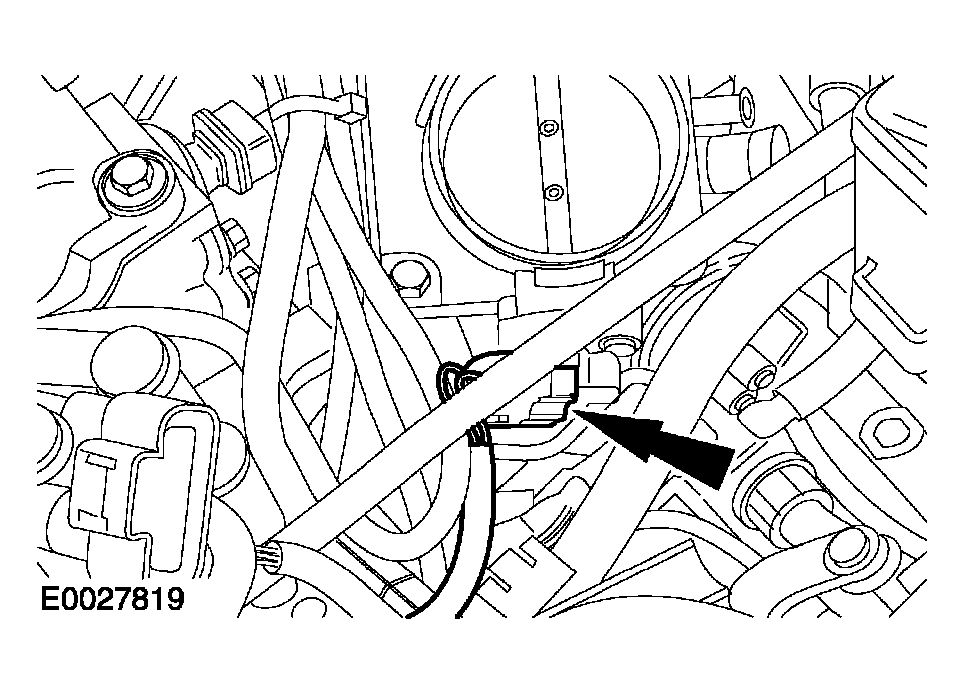

Disconnect the throttle position (TP) sensor electrical connector (air cleaner shown removed for clarity).

Fig 1: Disconnecting Throttle Position Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

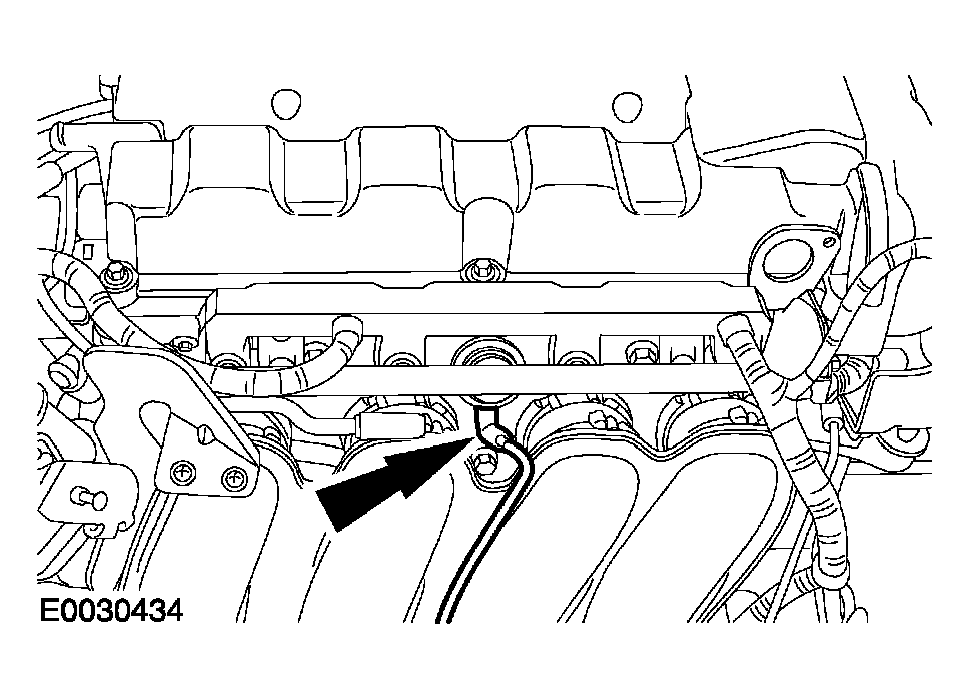

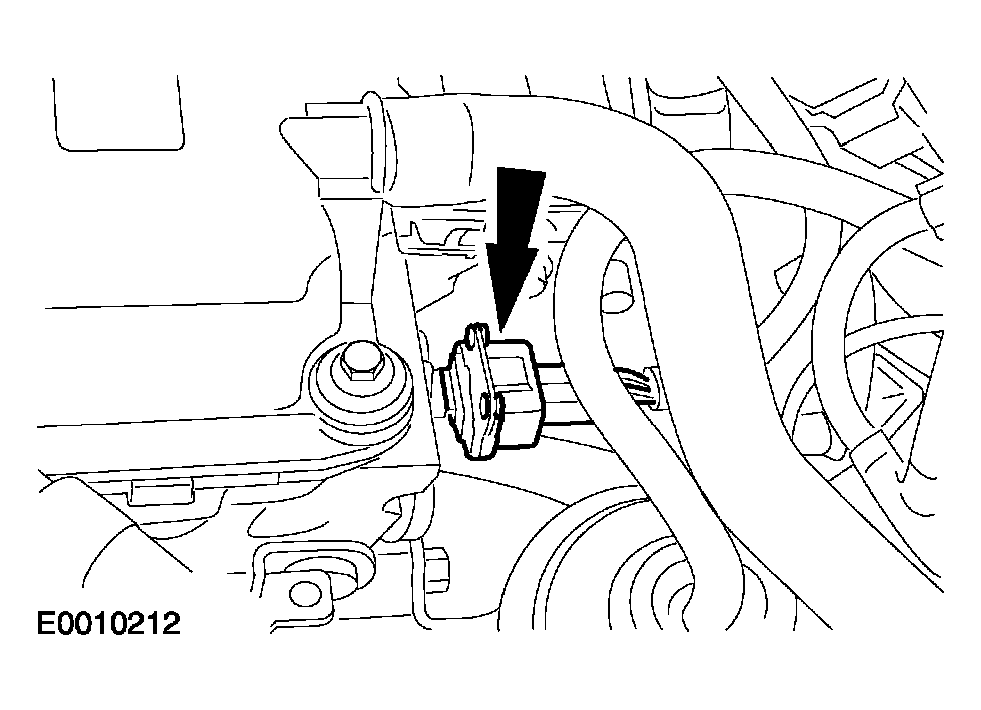

Disconnect the camshaft position (CMP) sensor electrical connector.

Fig 2: Disconnecting Camshaft Position Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

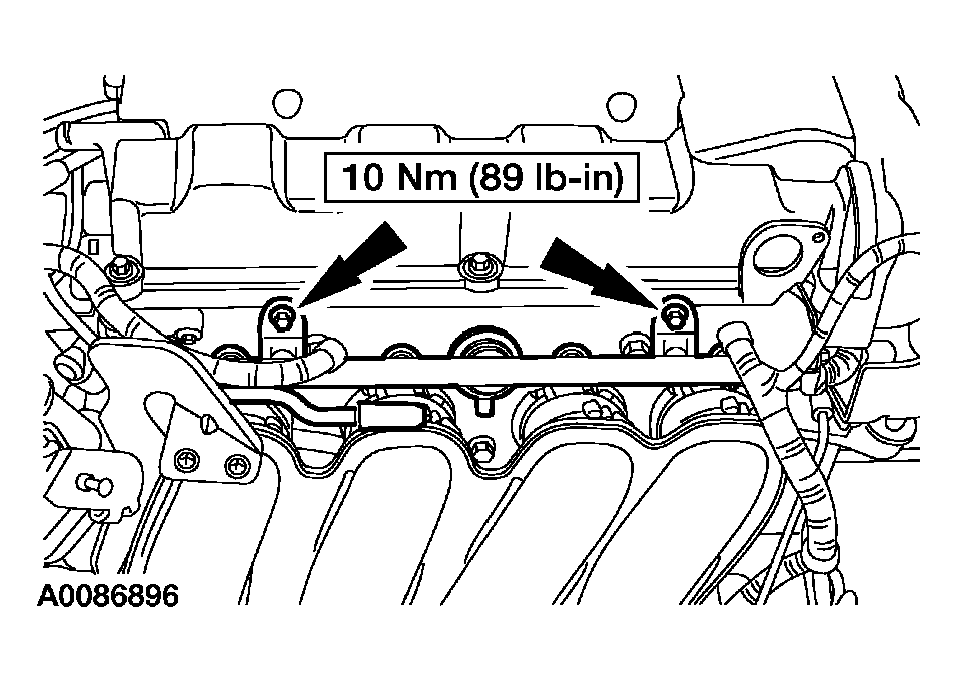

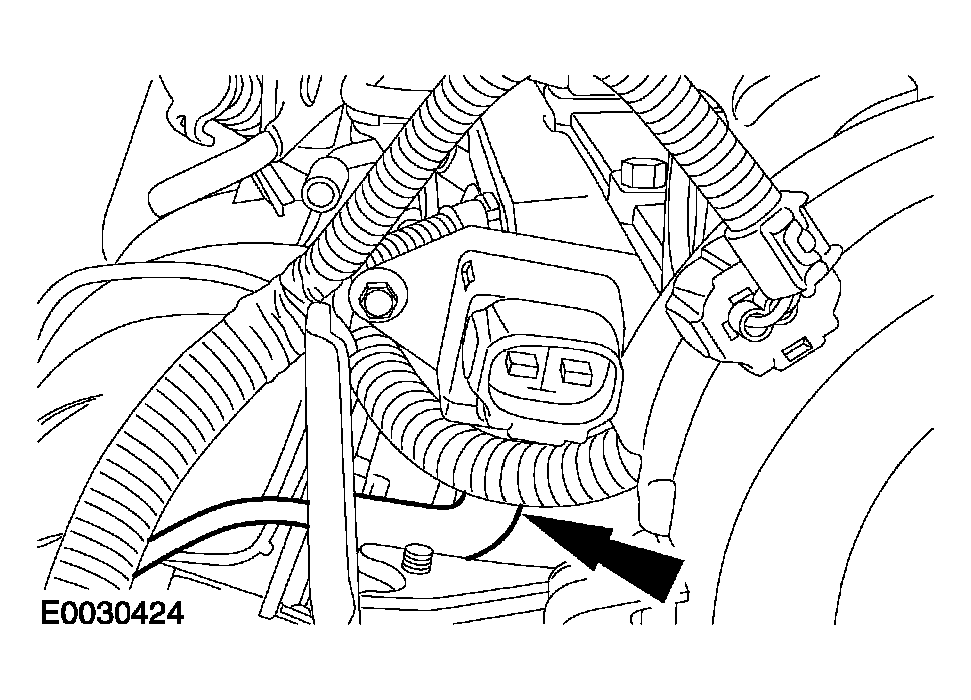

Disconnect the idle air control (IAC) valve electrical connector (air cleaner shown removed for clarity).

Fig 3: Disconnecting Idle Air Control Valve Electrical Connector
Courtesy of FORD MOTOR CO.

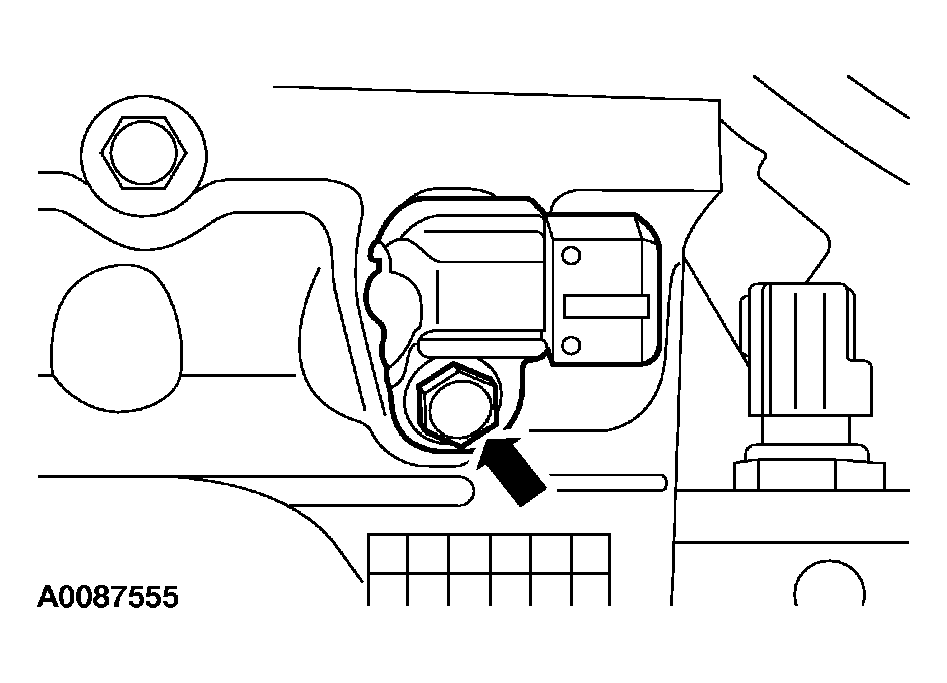

Remove the CMP sensor.

Fig 4: Removing CMP Sensor
Courtesy of FORD MOTOR CO.

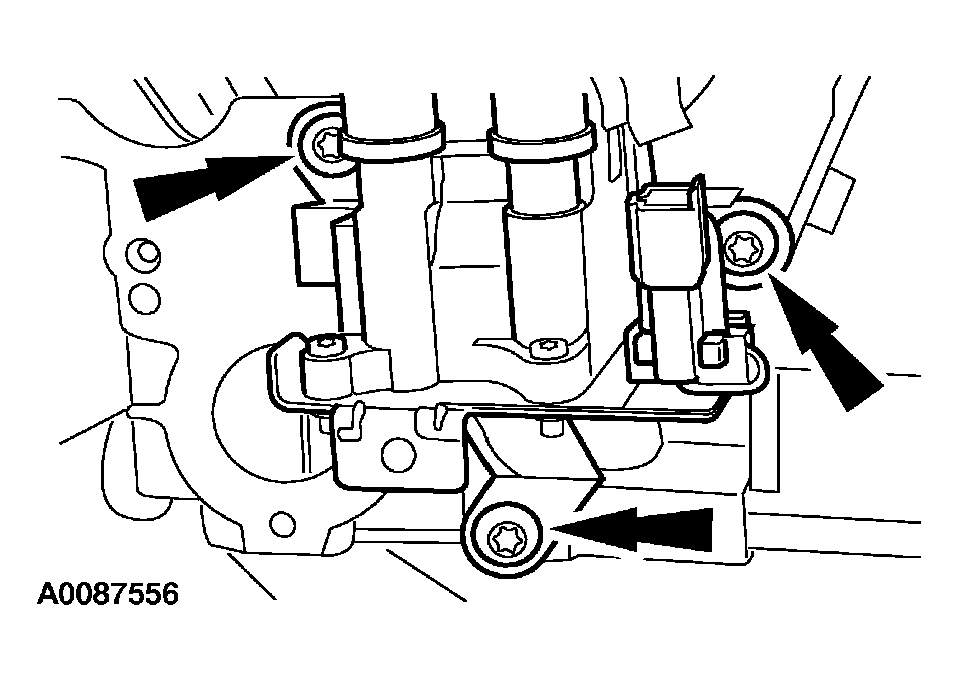

Remove the electronic ignition (EI) coil pack.

Fig 5: Removing Electronic Ignition Coil Pack
Courtesy of FORD MOTOR CO.

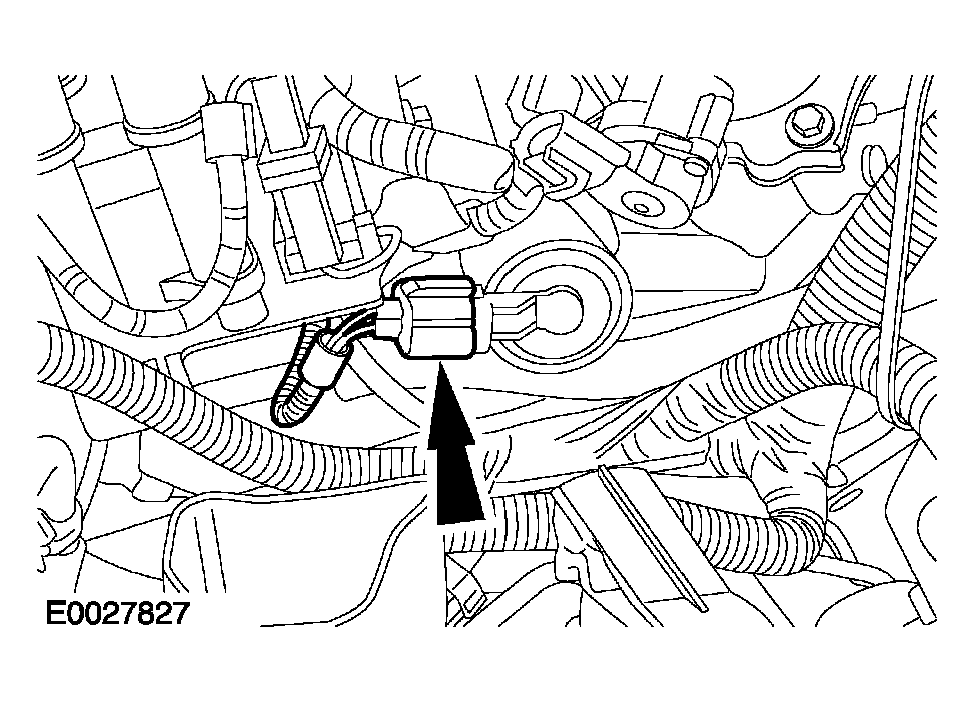

Disconnect the vacuum line from the fuel pressure sensor.

Fig 6: Disconnecting Vacuum Line From Fuel Pressure Sensor
Courtesy of FORD MOTOR CO.
Disconnect the vacuum line from the fuel pulse damper.

Fig 7: Disconnecting Vacuum Line From Fuel Pulse Damper
Courtesy of FORD MOTOR CO.
Remove the fuel injection supply manifold.

Fig 8: Removing Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.

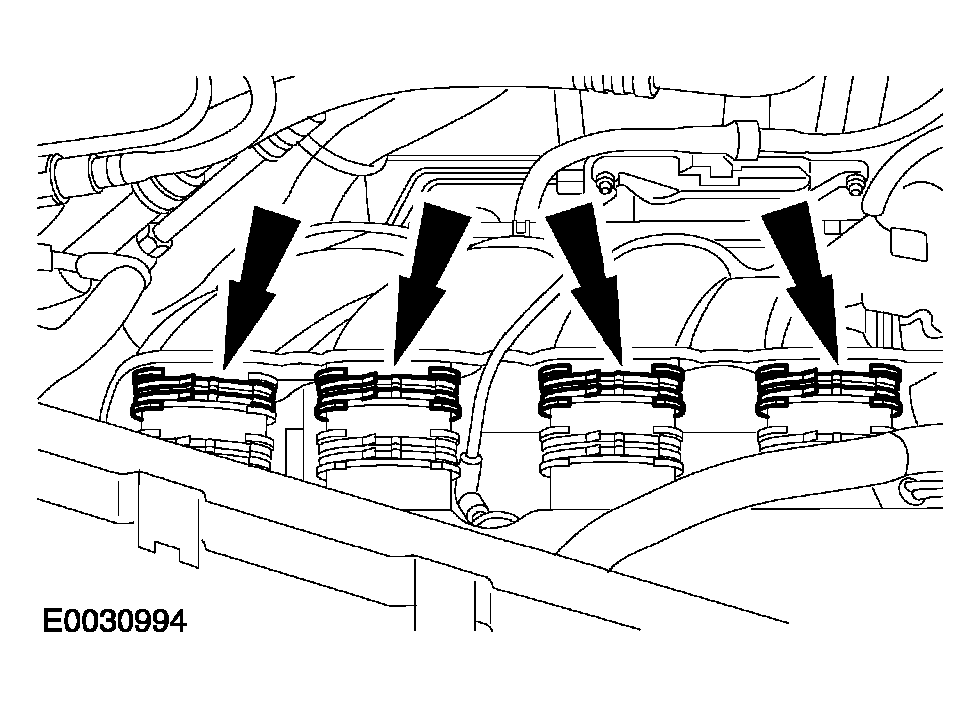

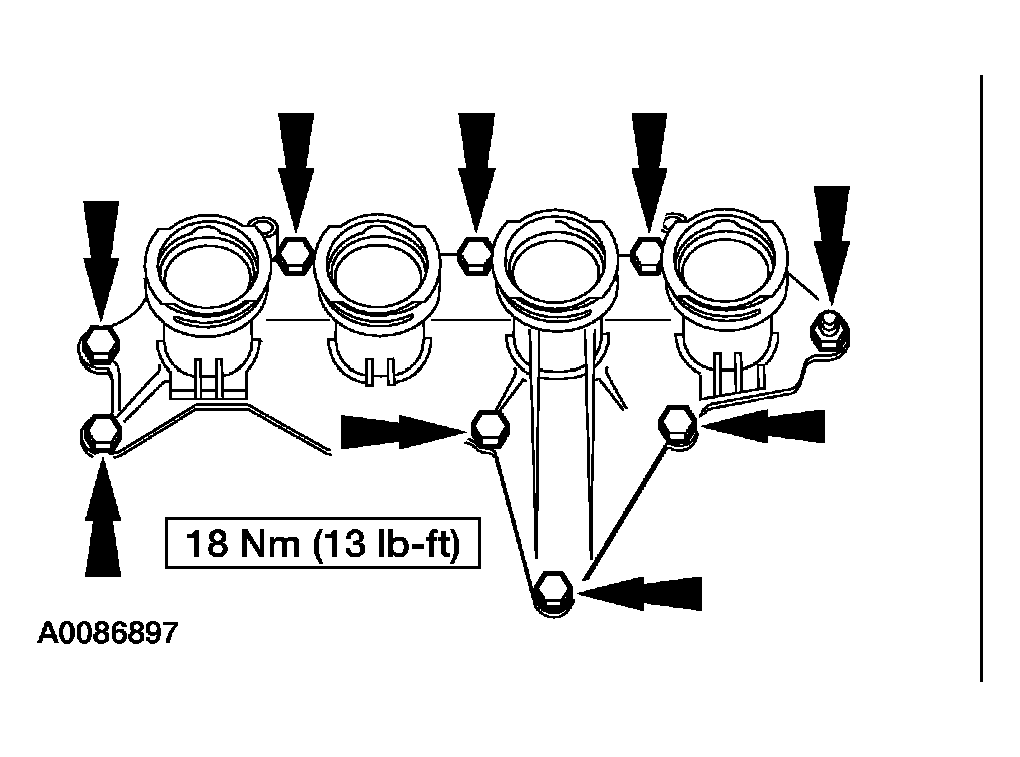

Separate the two sections of the intake manifold.

Fig 9: Separating Sections Of Intake Manifold
Courtesy of FORD MOTOR CO.
Remove the bracket.

Fig 10: Removing Bracket
Courtesy of FORD MOTOR CO.

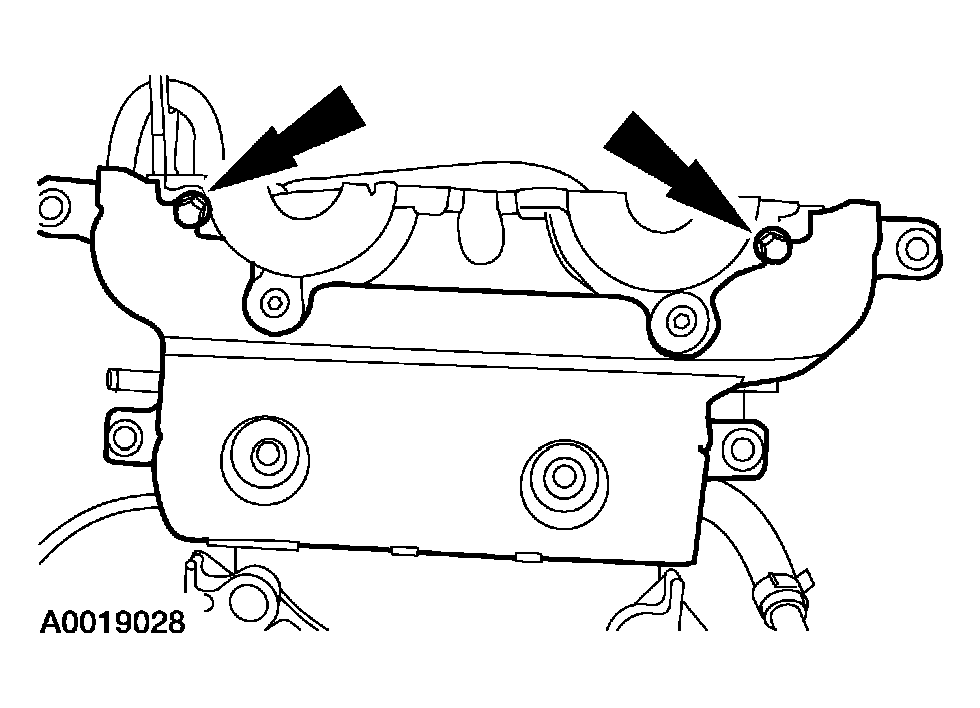

Remove the intake manifold inner section locknut and bolts (intake manifold shown removed for clarity).
- Discard the locknut.
Fig 11: Removing Intake Manifold Inner Section Locknut And Bolts
Courtesy of FORD MOTOR CO.
Remove the intake manifold inner section.

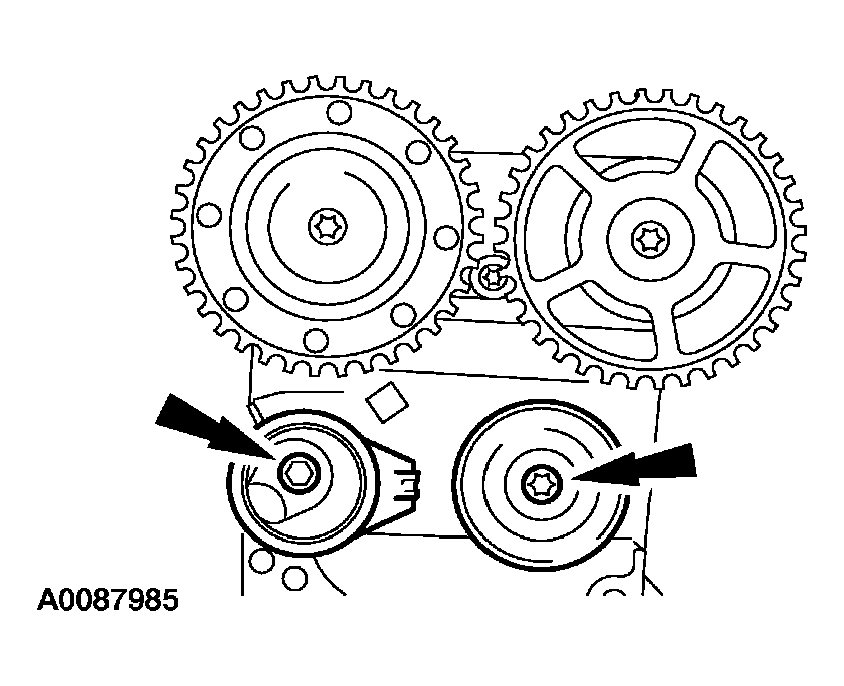

Remove the timing belt tensioner and idler pulley.

Fig 12: Removing Timing Belt Tensioner And Idler Pulley
Courtesy of FORD MOTOR CO.
Remove the inner timing belt cover.

Fig 13: Removing Inner Timing Belt Cover
Courtesy of FORD MOTOR CO.
Remove the rear lifting eye.

Fig 14: Removing Rear Lifting Eye
Courtesy of FORD MOTOR CO.
Remove the front lifting eye.

Fig 15: Removing Front Lifting Eye
Courtesy of FORD MOTOR CO.

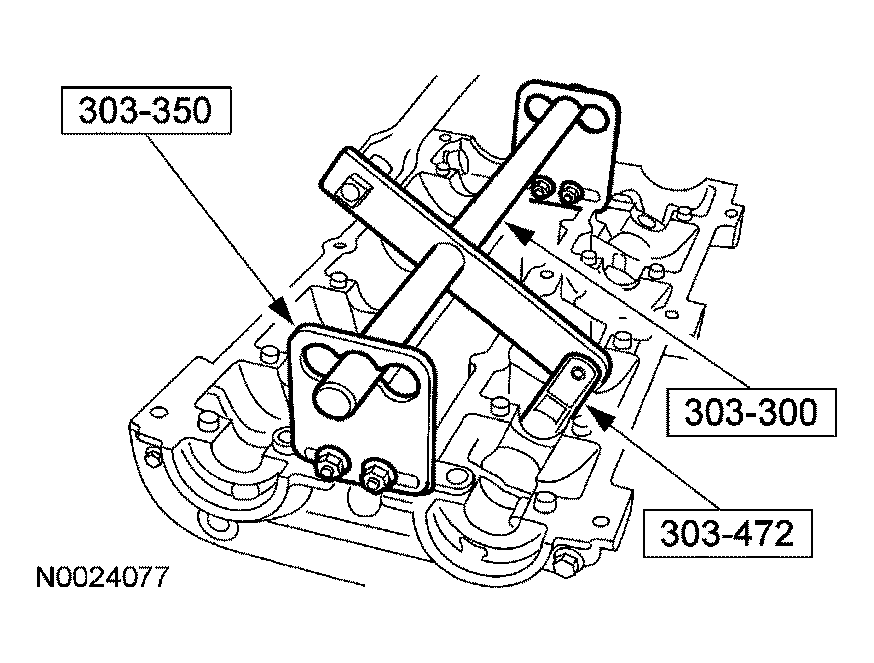

Using the special tools, compress the valve spring and remove the valve spring retainer keys, the valve spring retainers and the valve springs.
- Remove the special tools.
Fig 16: Removing Valve Spring Retainer Keys, Valve Spring Retainers And Valve Springs
Courtesy of FORD MOTOR CO.
Inspect the valve spring, valve spring retainer and valve spring retainer key. Install new parts as necessary.

NOTE: Mark each valve if the original valves are to be used.

Fig 17: Removing Valves

Courtesy of FORD MOTOR CO.

Remove the valves.

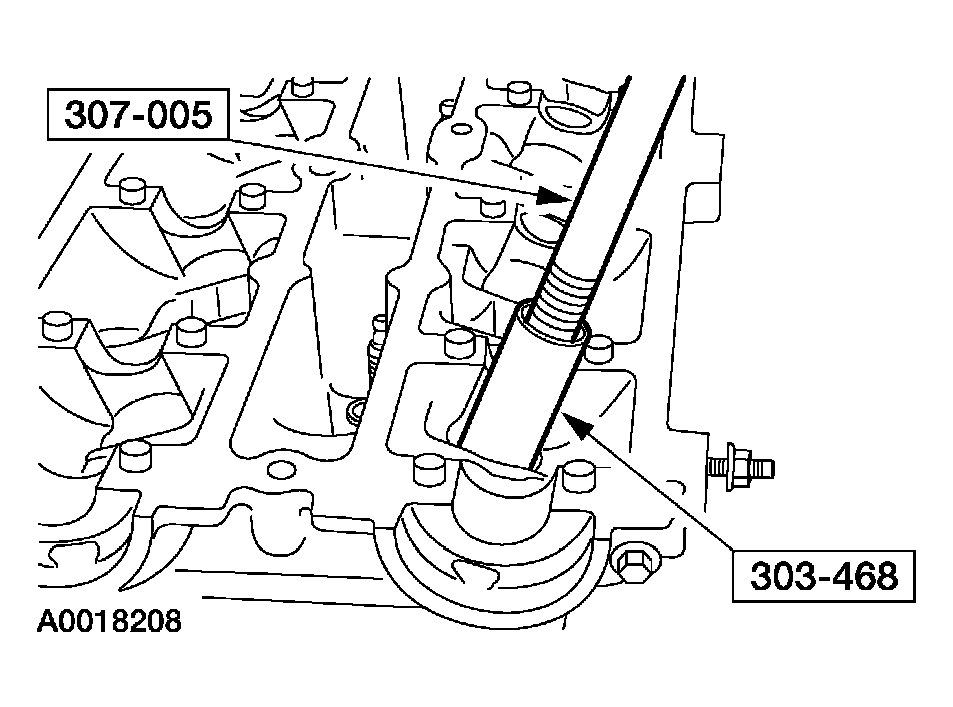

Using the special tools, remove and discard the valve stem seals.

Fig 18: Removing Valve Stem Seals
Courtesy of FORD MOTOR CO.
Inspect the valves. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION . Install new parts as necessary.
