Upper Engine Components

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

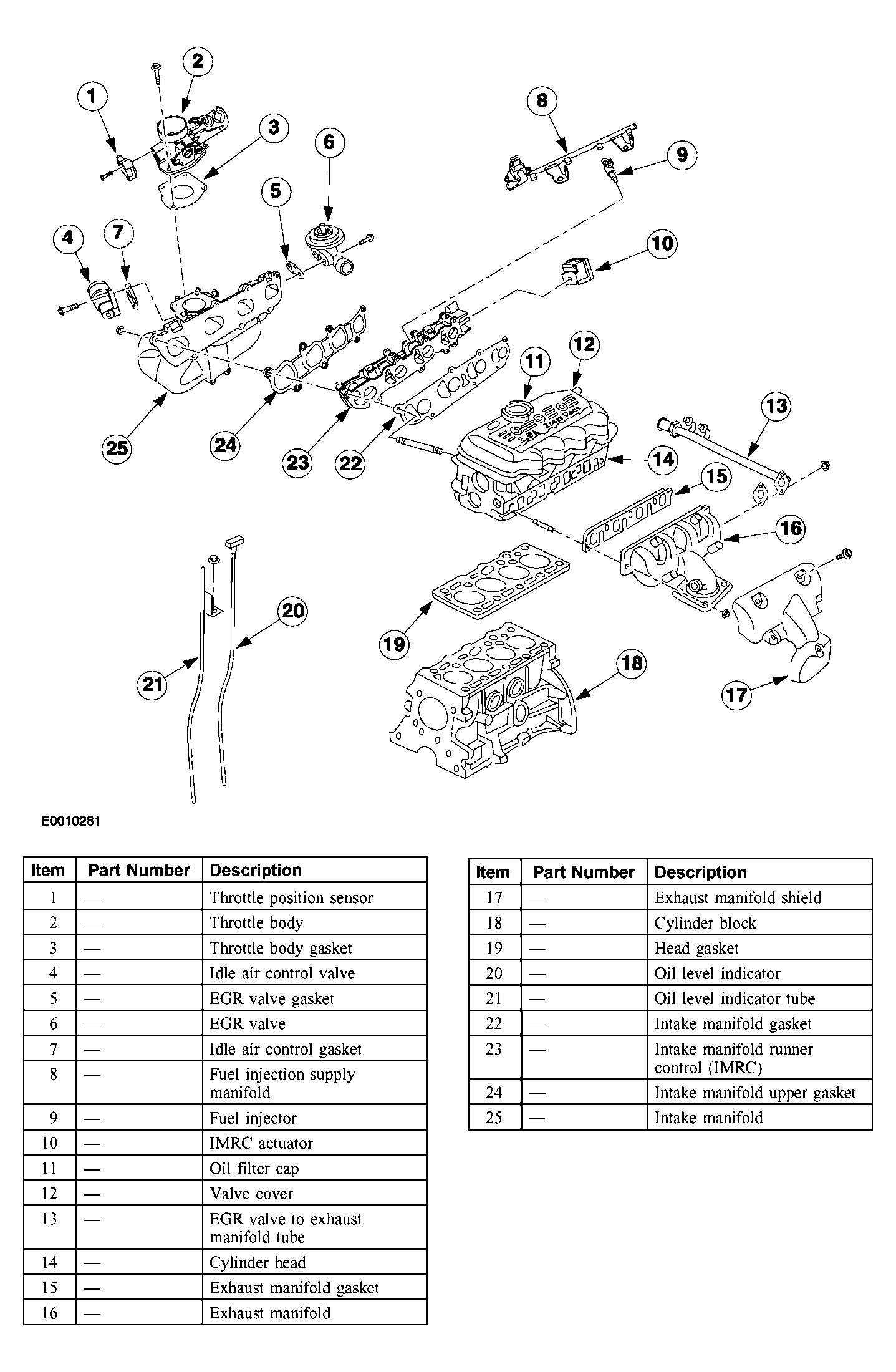

Fig 1: Identifying Upper Engine Components
G04034338Courtesy of FORD MOTOR CO.
