Accessory Drive

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

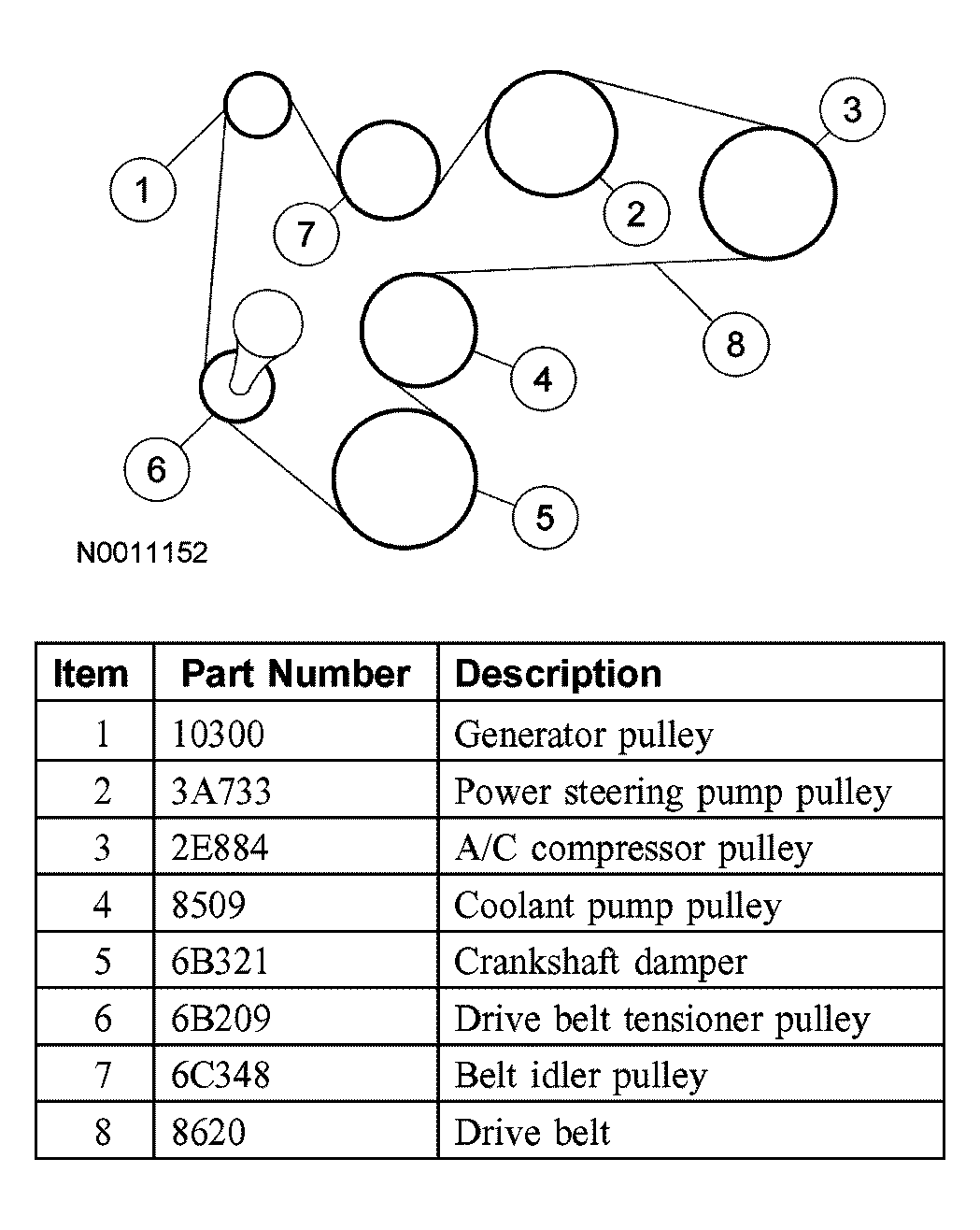

Fig 1: Accessory Drive Belt Routing & Components - 4.0L SOHC

Courtesy of FORD MOTOR CO.

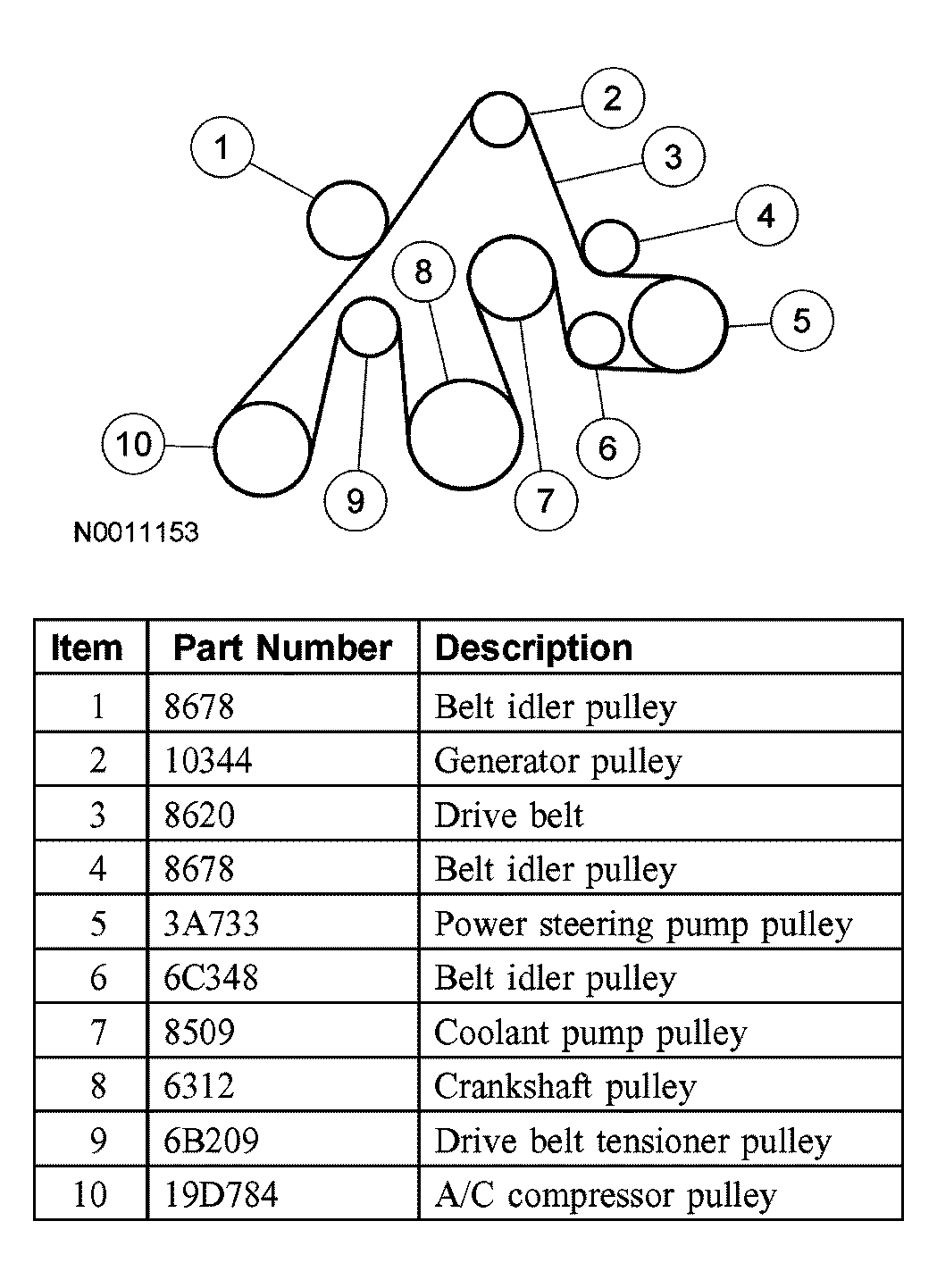

Fig 2: Accessory Drive Belt Routing & Components - 4.6L (2V)

Courtesy of FORD MOTOR CO.

The accessory drive:

has a single serpentine drive belt (6 ribs).
has an automatic tensioner.
is not adjustable.
