Steering Wheel Controls: MKZ

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

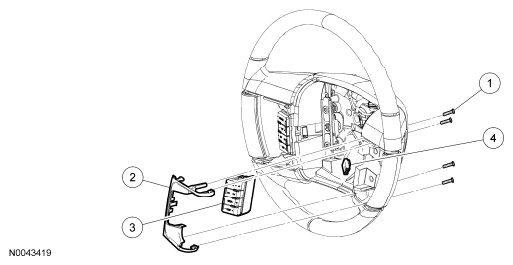

Fig 1: Identifying Steering Wheel Controls Components - MKZ

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Steering wheel controls bezel screws (4 required)
2	-	Steering wheel controls bezel
3	9C888	Steering wheel controls
4	-	Steering wheel controls electrical connector (part of 14A411)
