Keyless Entry Keypad: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

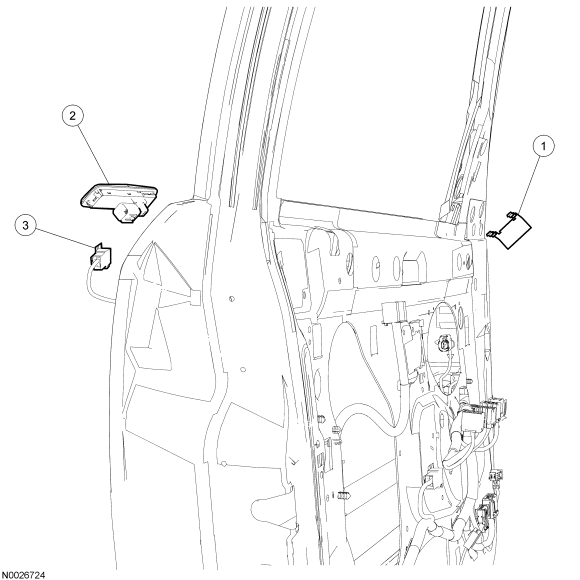

Fig 1: Exploded View Of Keyless Entry Keypad
GF0013262Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A667 Keyless entry keypad clip
2 14A626 Keyless entry keypad
3 - Keyless entry keypad electrical connector (part of 14A005)
