Door Lock Control Switch: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

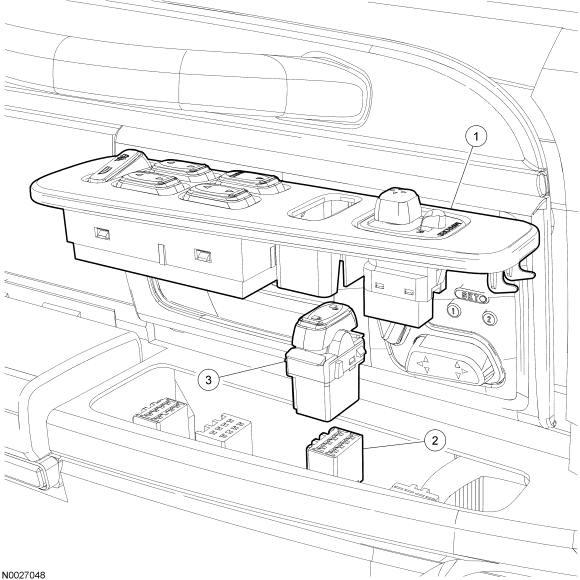

Driver side shown in the illustration, passenger side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14527/14528 |
Door lock control switch plate (RH/LH) |
| 2 |
- |
Door lock control switch electrical connector (part of 14A005) |
| 3 |
14028 |
Door lock control switch |
