Suction Accumulator - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

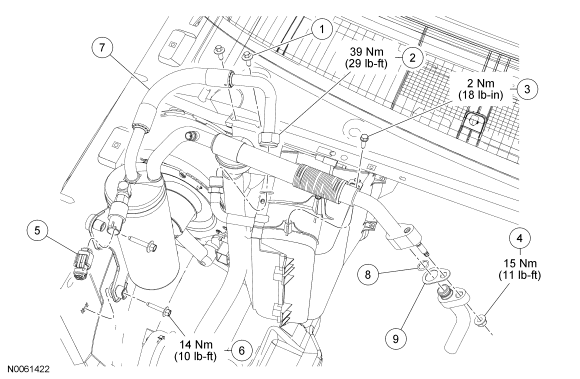

| Item | Part Number | Description |
|---|---|---|
| 1 | N800369 | Washer reservoir filler tube bolt |
| 2 | - | Evaporator outlet fitting (part of 19C836) |
| 3 | W701696 | Suction accumulator outlet line bracket screw |
| 4 | W520413 | Suction accumulator outlet fitting nut |
| 5 | 12A581 | A/C cycling switch electrical connector |
| 6 | W703845 | Suction accumulator bolt (2 required) |
| 7 | 19C836 | Suction accumulator |
| 8 | 19E889 | O-ring seal (2 required) |
| 9 | 19588 | Gasket seal |
