Seat Control Switch: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
  1. Install the seat regulator control switch.
    1. Connect the electrical connector.
    2. Install the screws.

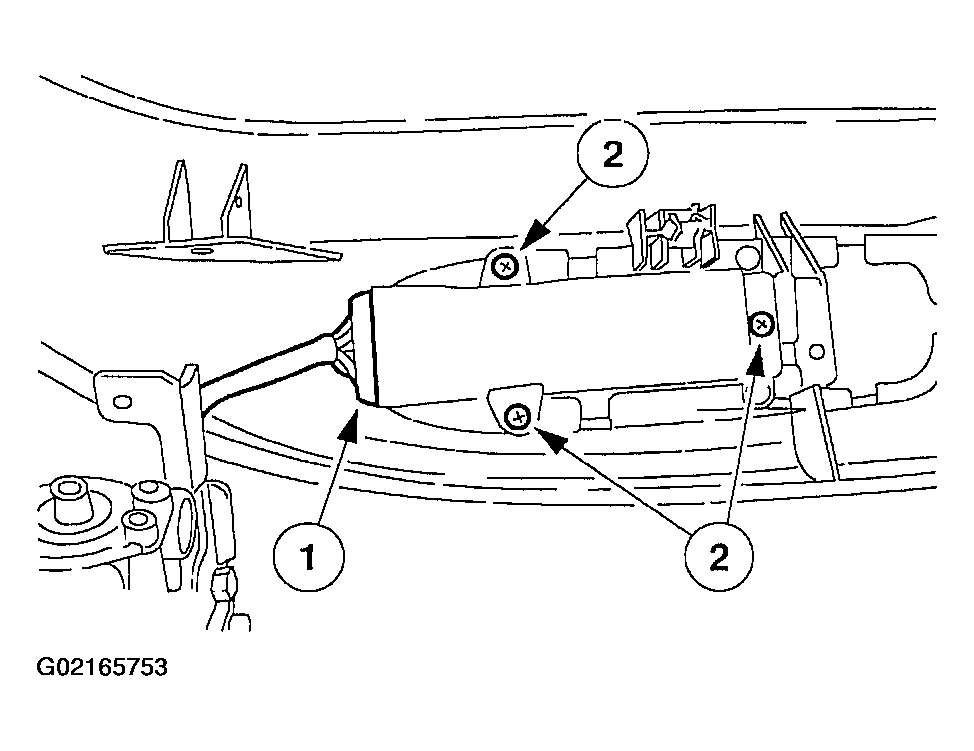

    Fig 1: Installing Seat Regulator Control Switch
    G02165753Courtesy of FORD MOTOR CO.
  2. Position the front cushion side shield and install the screw.

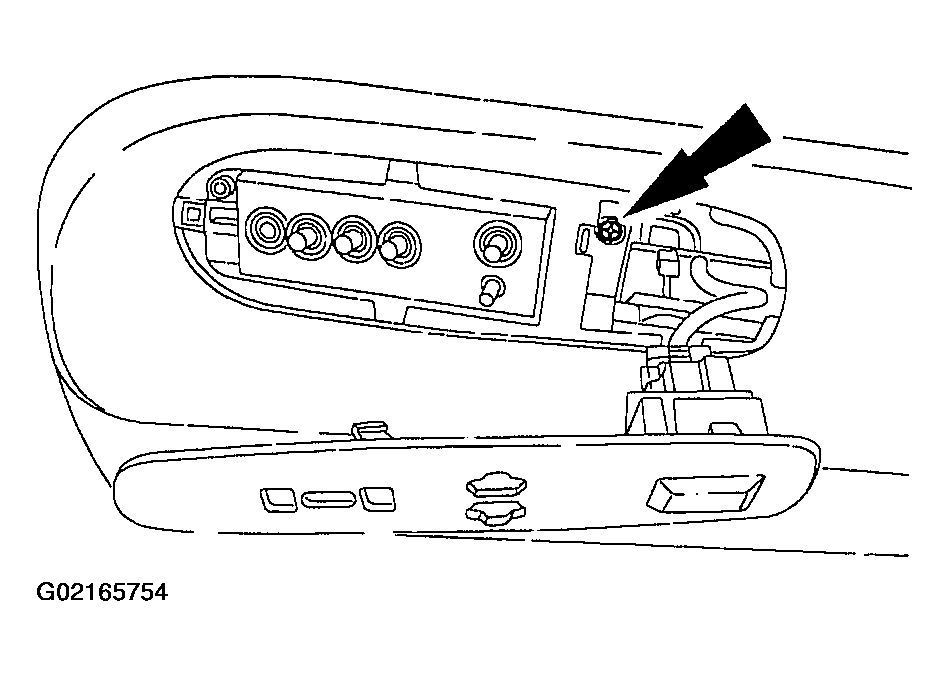

    Fig 2: Installing Front Cushion Side Shield
    G02165754Courtesy of FORD MOTOR CO.
  3. Install the seat regulator control switch plate.
    Fig 3: Installing Seat Regulator Control Switch Plate
    G02165755Courtesy of FORD MOTOR CO.
  4. Install the seat control knobs.
    Fig 4: Installing Seat Control Knobs
    G02165756Courtesy of FORD MOTOR CO.
  5. Install the side trim panel screw.

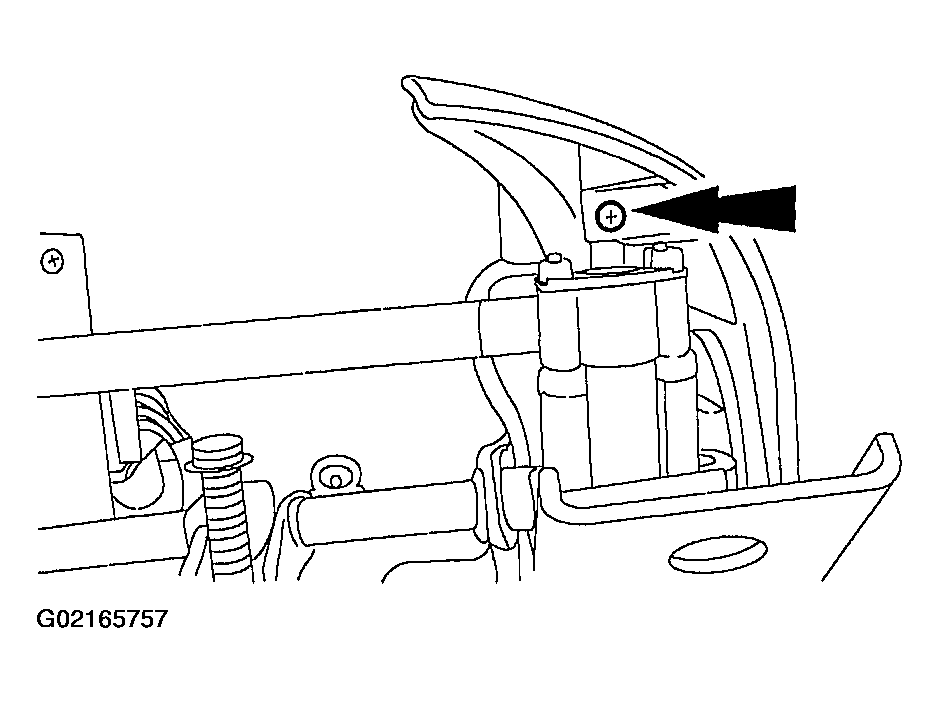

    Fig 5: Installing Side Trim Panel Screw
    G02165757Courtesy of FORD MOTOR CO.
  6. Install the side panel trim screw.
    Fig 6: Installing Side Trim Panel Screw
    G02165758Courtesy of FORD MOTOR CO.
  7. Install the front safety belt cover.
    Fig 7: Installing Front Safety Belt Cover
    G02165759Courtesy of FORD MOTOR CO.
  8. Restore the vehicle to operating condition.
      WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the seat removal and installation procedure.
    1. Install the affected seat. For additional information, see FRONT SEAT .
      2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the supplemental restraint system (SRS) deactivation and reactivation procedure.
    2. Reactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
      3. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    3. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, see SYSTEM OPERATION CHECK .
    4. Check the active restraint system for correct operation.
