Identification
>>
In-Line Fuse (Sedan)
In-Line Fuse (Sedan)
NOTE:
In-line fuse is located behind luggage compartment lining, LH side. See
Fig 1
.

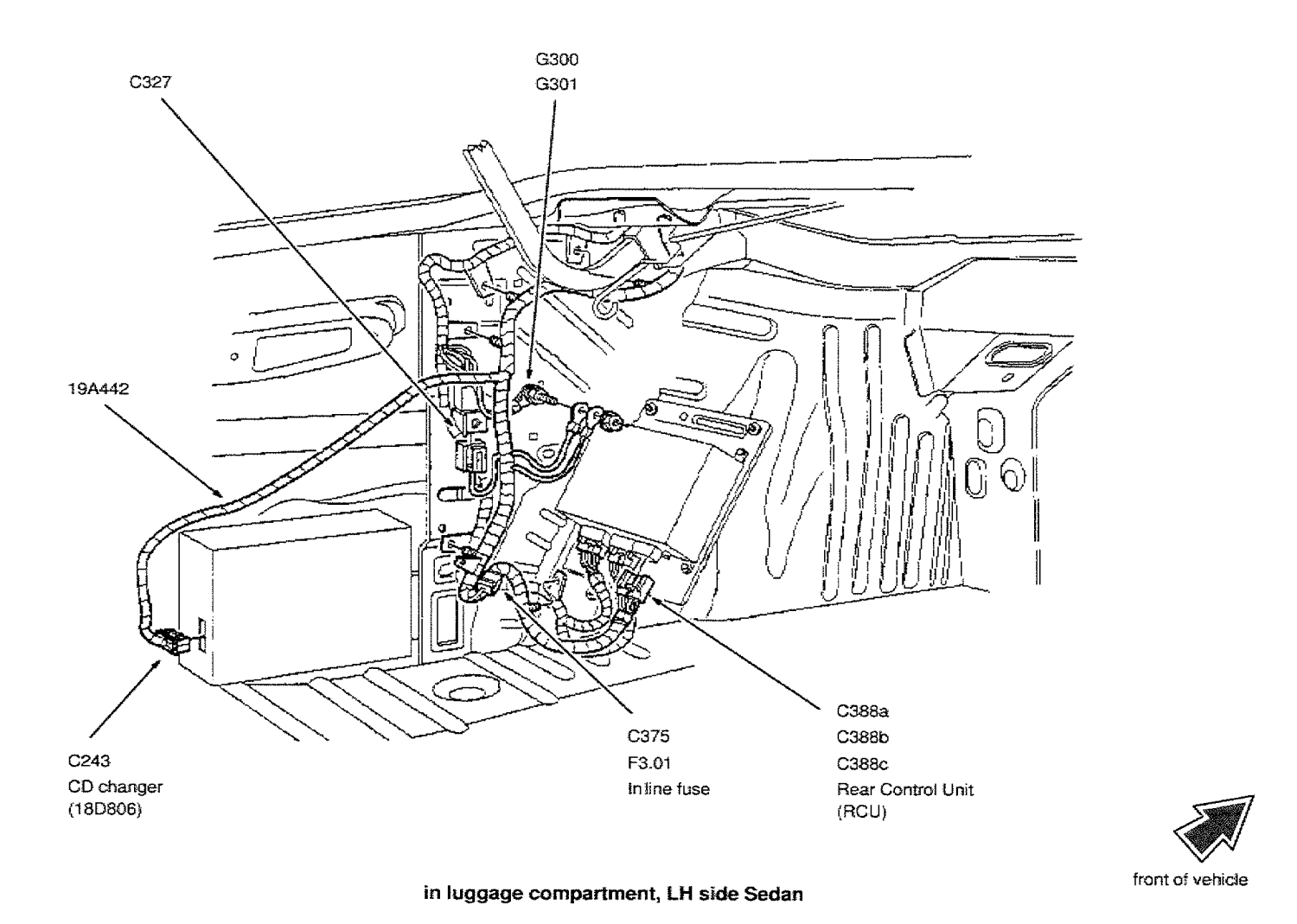

Fig 1: Left Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.
