Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Central Timer Module (CTM) | Behind center of dash. See Figure . |
| Daytime Running Lamps (DRL) Module (2.5L) | Left side of lower radiator support. See Figure . |
| Daytime Running Lamps (DRL) Module (3.0L) | Left side of lower radiator support. See Figure . |
| Daytime Running Lamps (DRL) Module (4.0L) | Left side of lower radiator support. See Figure . |
| Electric Shift Control Module | Behind center of dash. See Figure . |
| Generic Electronic Module (GEM) | Behind center of dash. See Figure . |
| Instrument Illumination Dimming Module | Top left side of dash. See Figure . |
| One Touch Down Relay Module | In relay box. |
| Passive Anti-Theft System (PATS) Module | Behind right side of dash. |

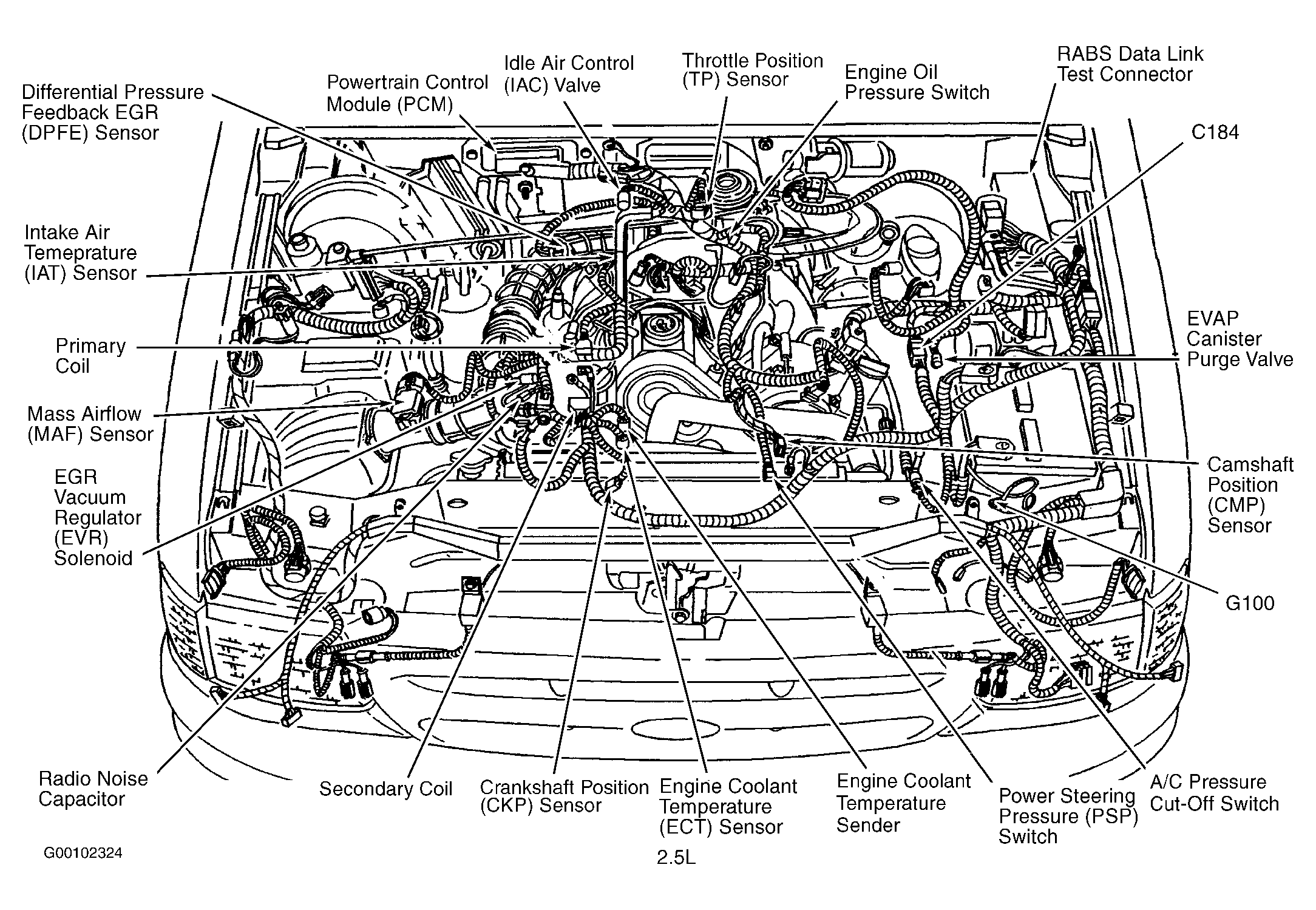

| Powertrain Control Module (PCM) (2.5L) | Right rear of engine compartment, through firewall. See Figure . |

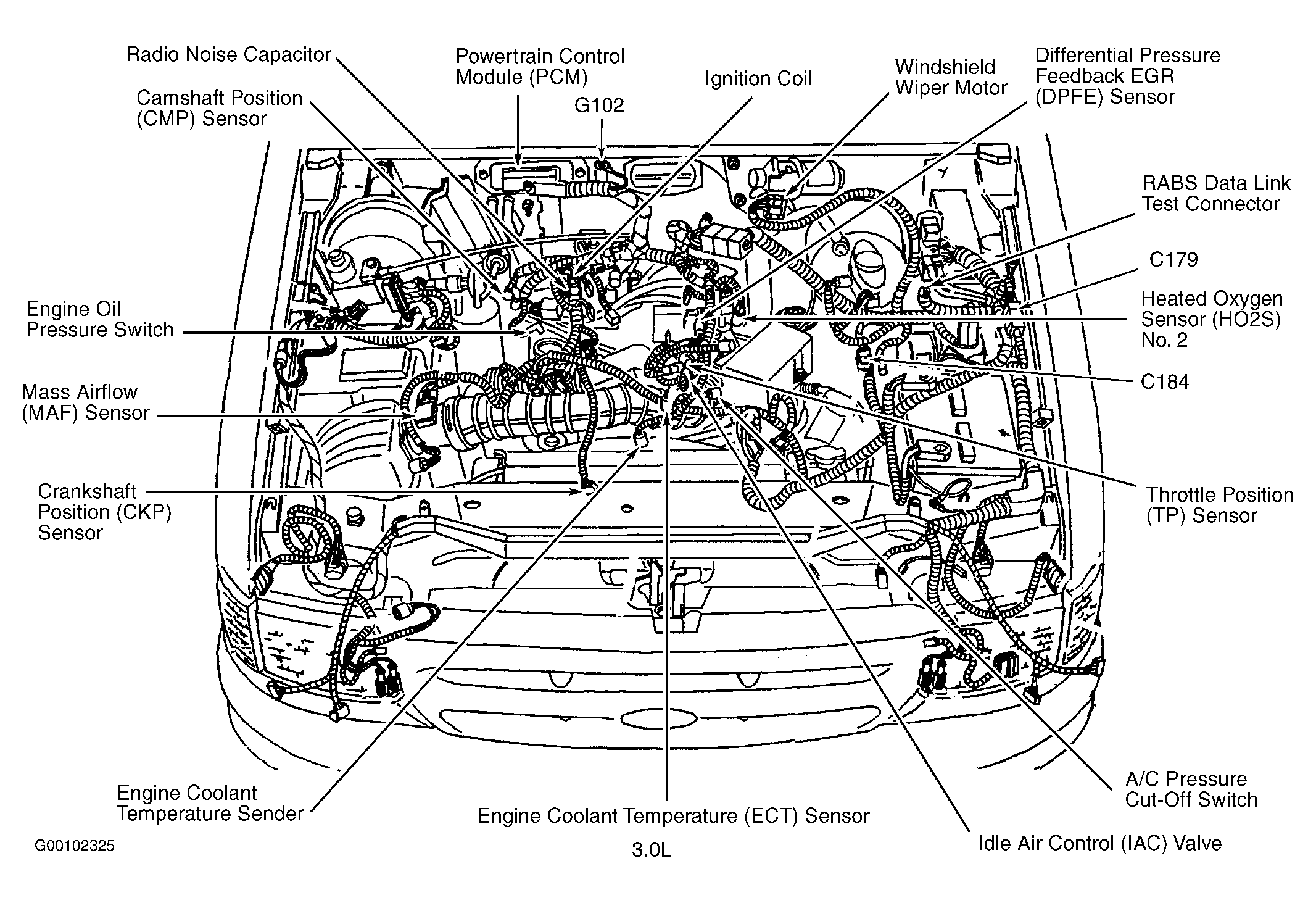

| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment, through firewall. See Figure . |

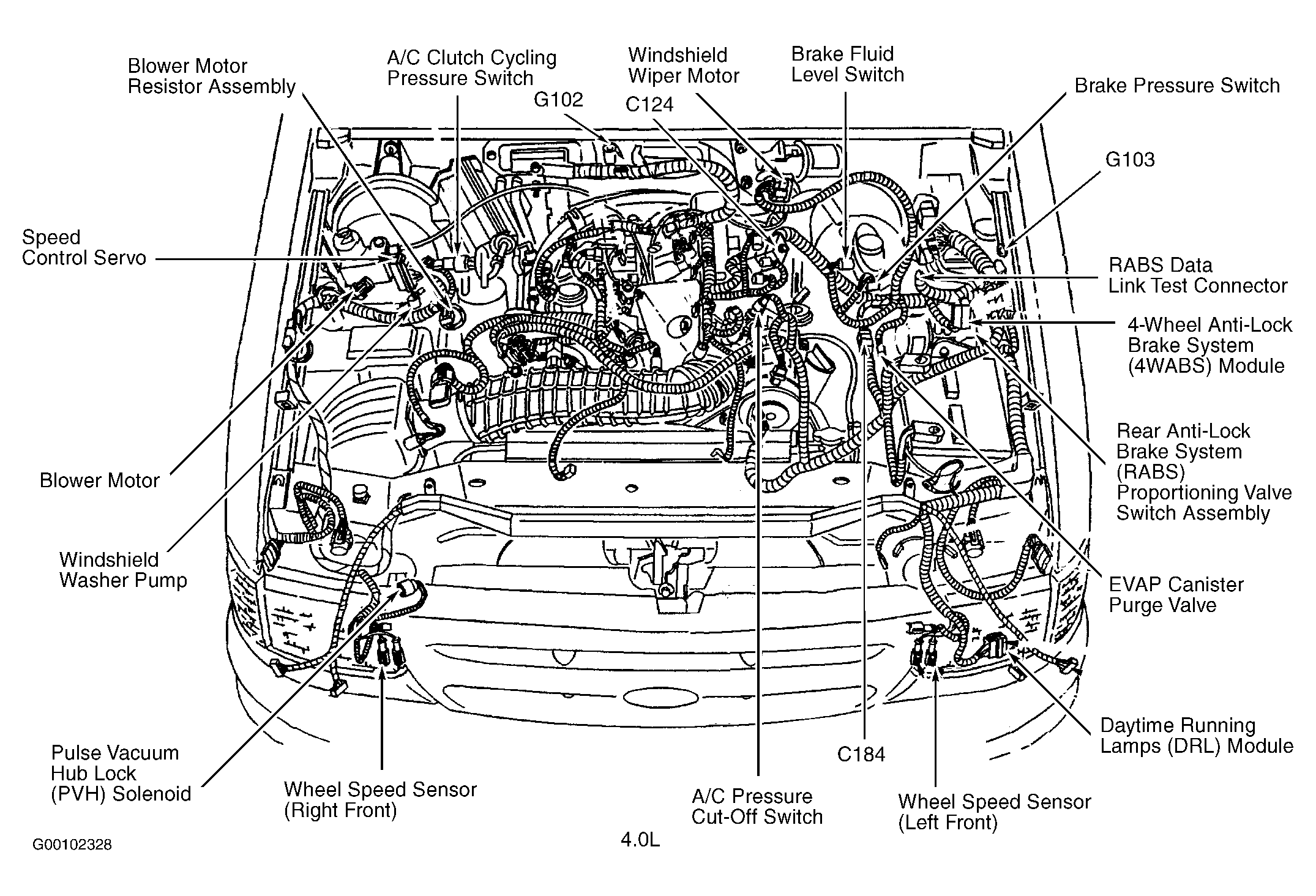

| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment, through firewall. See Figure . |
| Rear Anti-Lock Brake System (RABS) Module | Behind lower center of dash, right side of ashtray assembly. See Figure . |
| Remote Anti-Theft Personality (RAP) Module | In left rear corner of cab. |
| Restraints Control Module | In center of vehicle, under dash. |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (2.5L) | On left front of engine compartment. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (3.0L) | On left front of engine compartment. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (4.0L) | On left front of engine compartment. See Figure . |
