Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

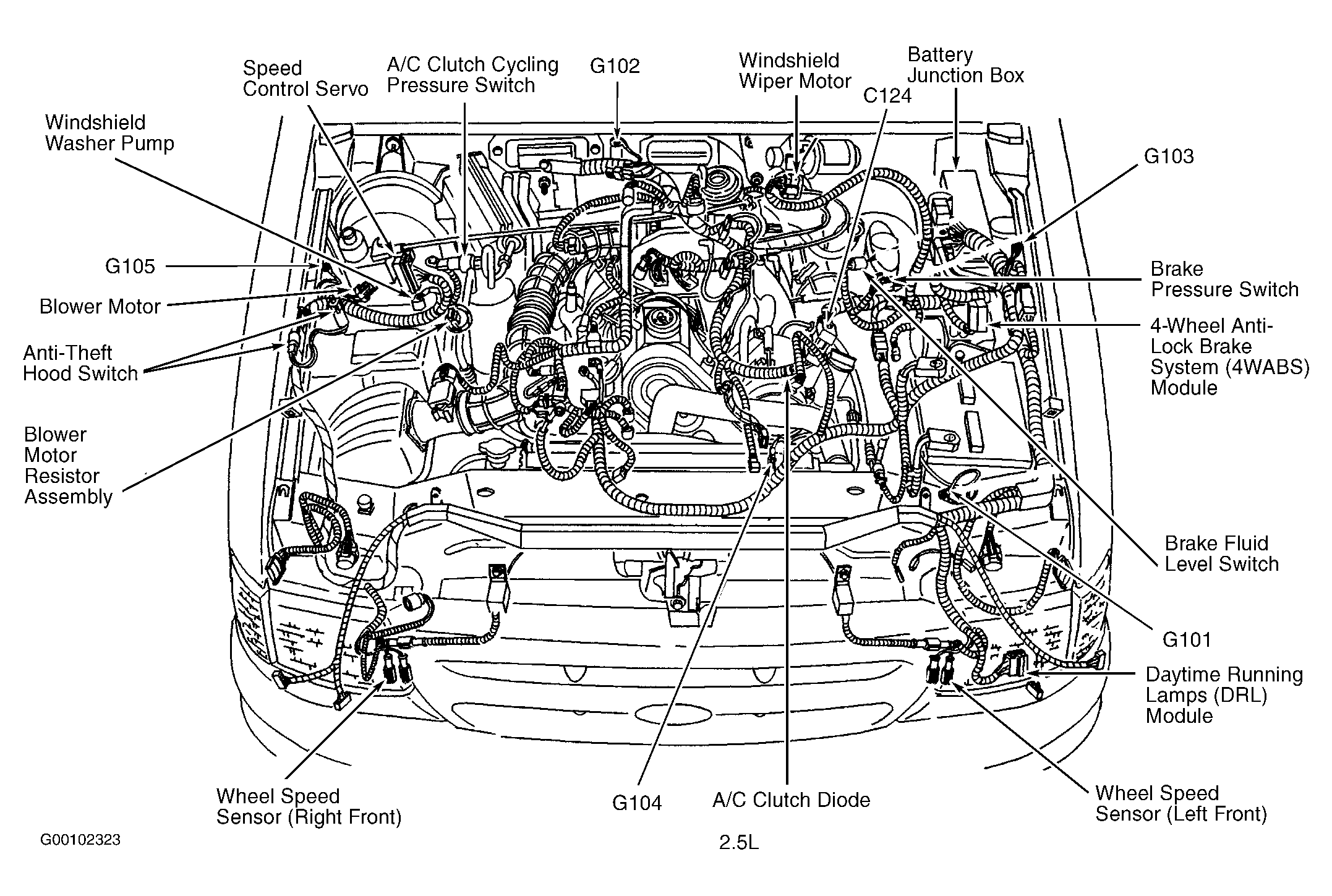

Battery Junction Box (2.5L) Left rear of engine compartment. See Figure .

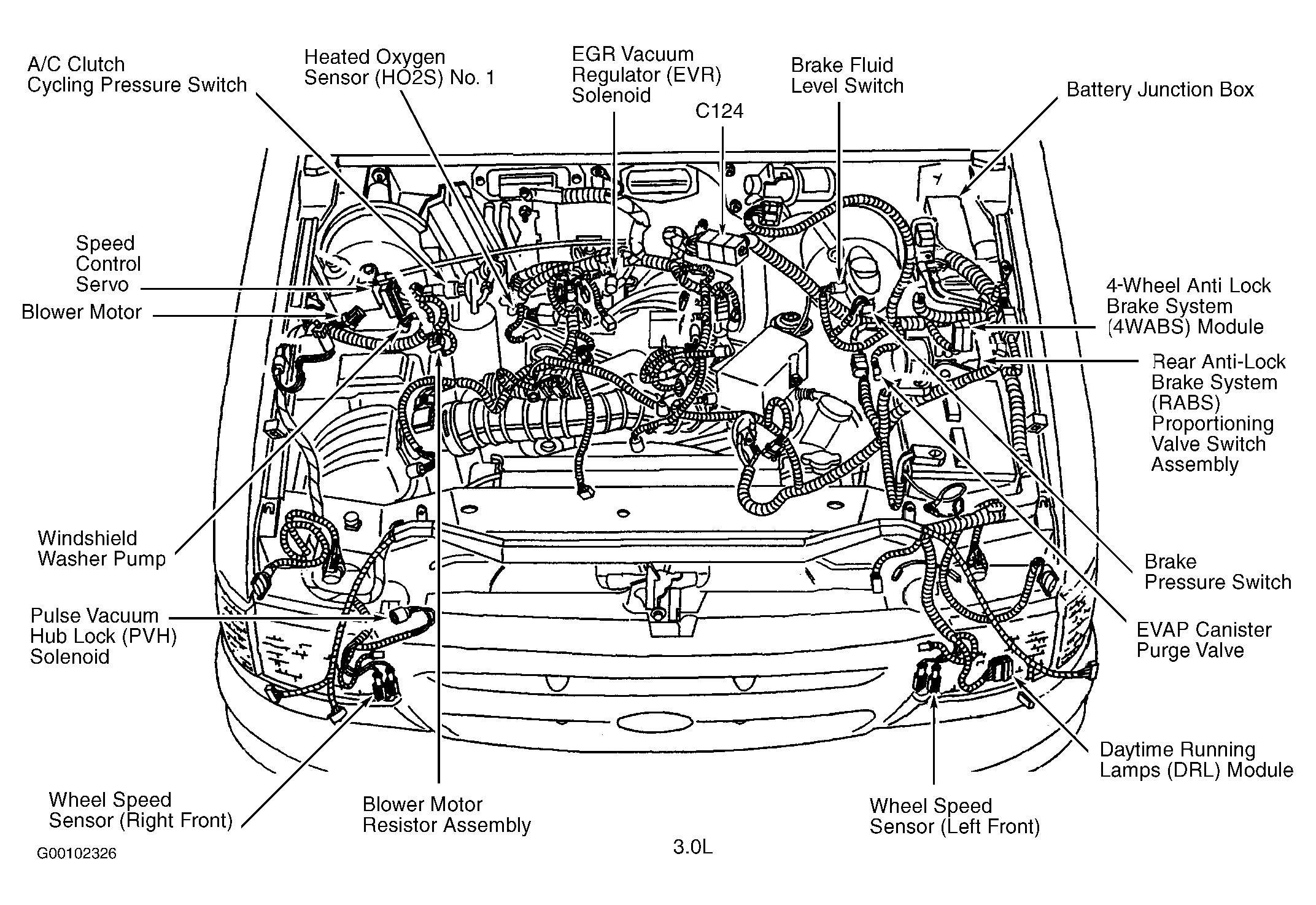

Battery Junction Box (3.0L) Left rear of engine compartment. See Figure .

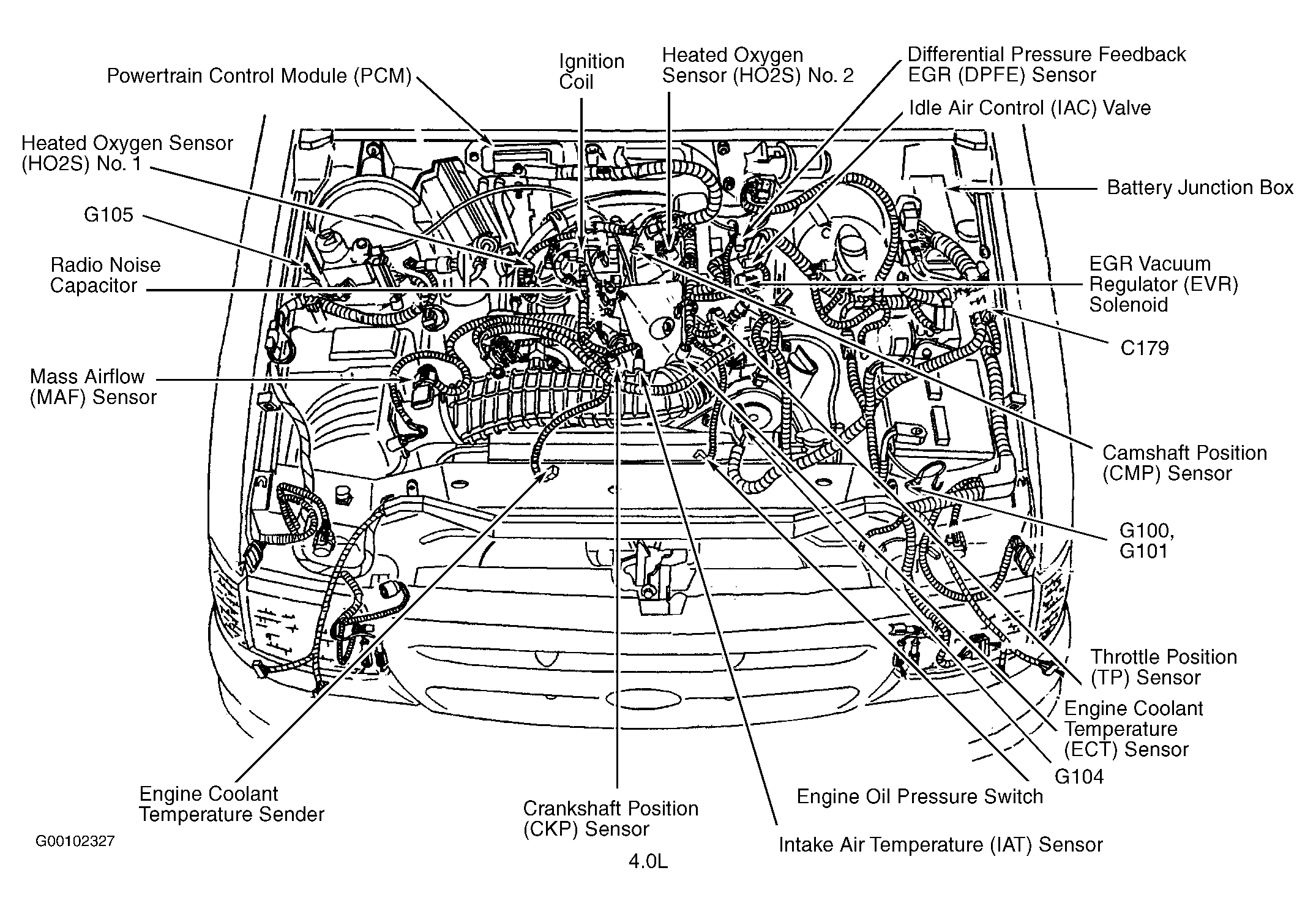

Battery Junction Box (4.0L) Left rear of engine compartment. See Figure .

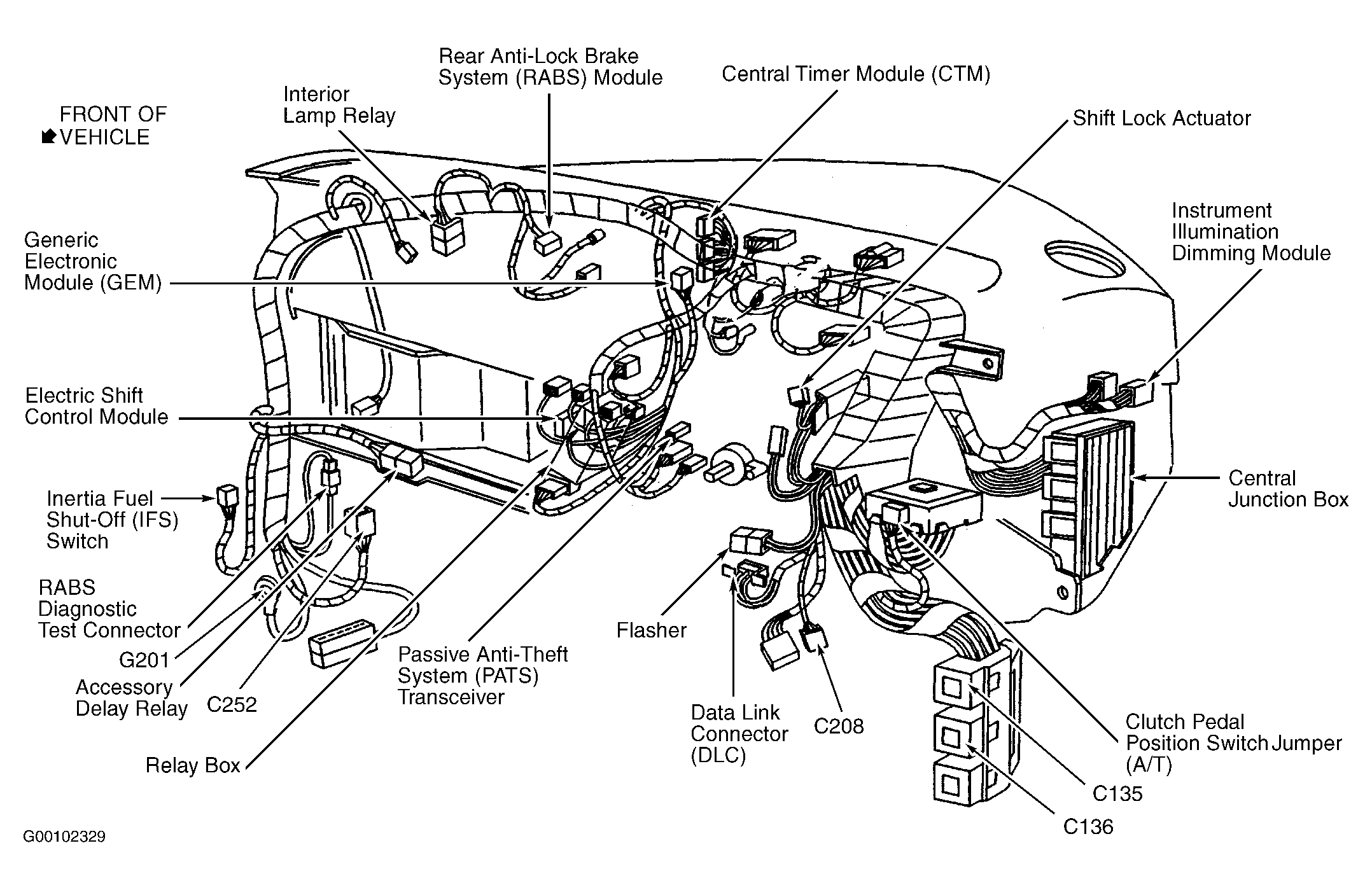

Central Junction Box Behind left side of dash. See Figure .
Relay Box Behind dash, right of steering column. See Figure .
