Fuel Tank: Installation

CAUTION: Lubricate the filler pipe check valve area and the tank-to-filler pipe grommet with Serfactant prior to assembly or damage to the filler pipe check valve will occur.

NOTE: A new grommet must be used for the installation procedure due to its destruction during removal.

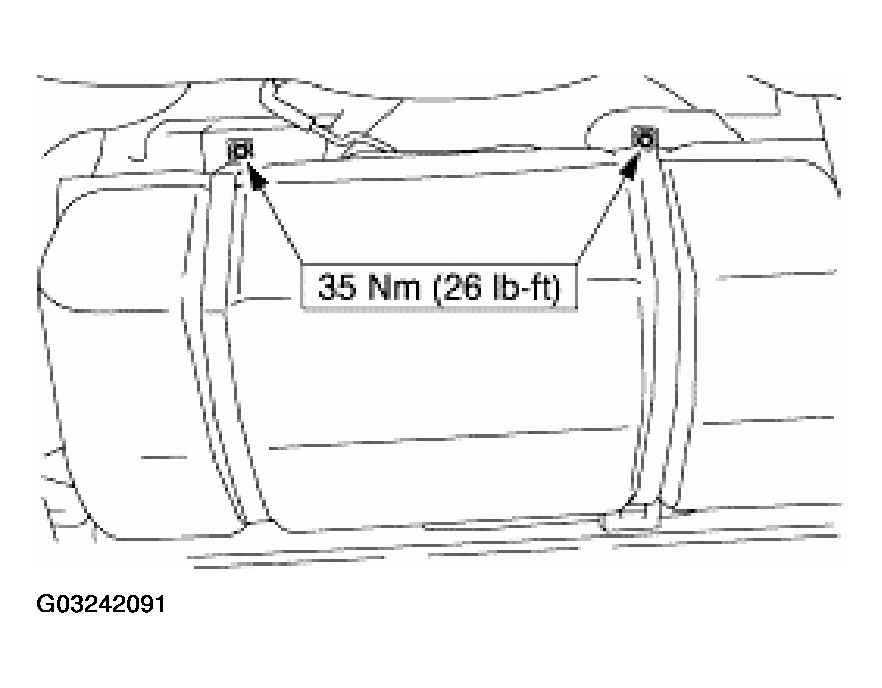

Fig 1: Tightening Fuel Tank Support Straps Front Bolts

Courtesy of FORD MOTOR CO.

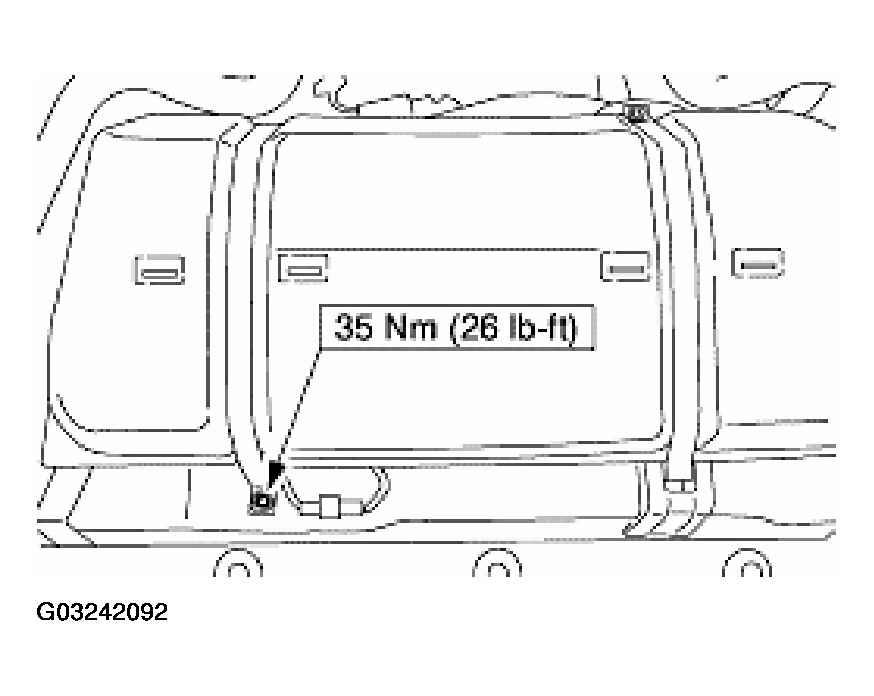

Fig 2: Tightening RH Fuel Tank Support Strap Bolt

Courtesy of FORD MOTOR CO.

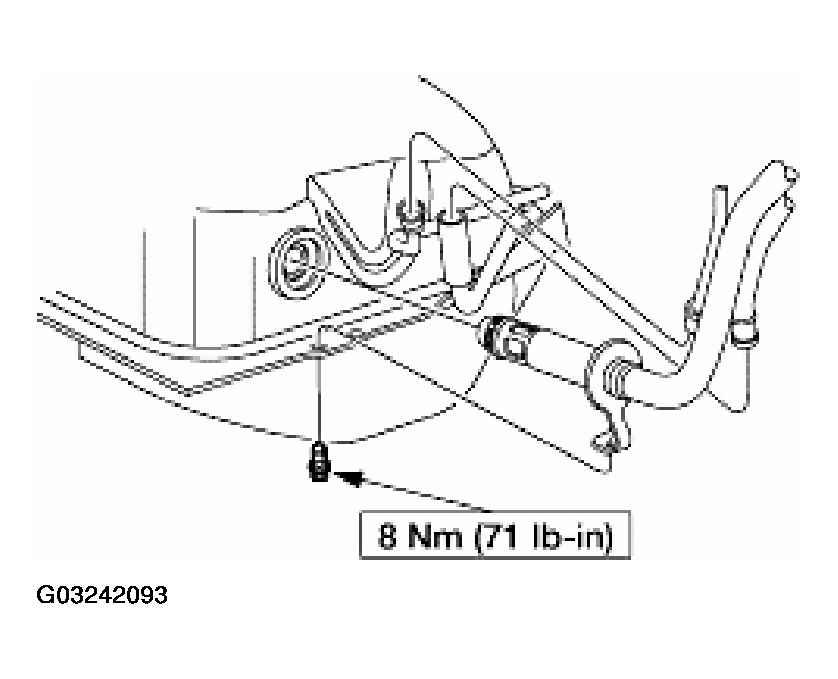

Fig 3: Connecting Filler Pipe Hose Connections To Fuel Tank

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
