Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Front Electronic Module C201a - Connector Pinout

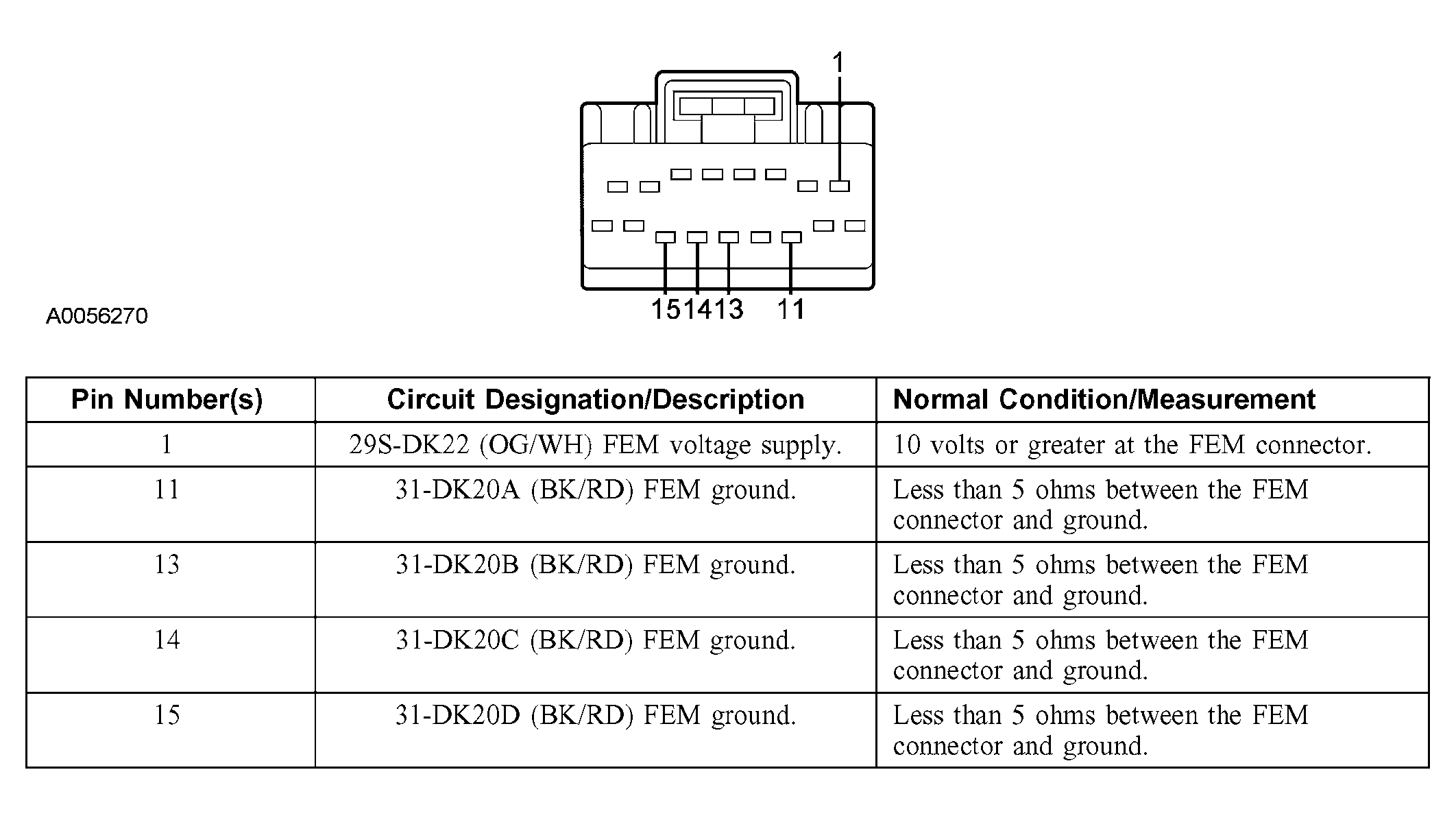

Fig 1: Identifying Front Electronic Module C201a - Connector Pinout
G03999200Courtesy of FORD MOTOR CO.

Front Electronic Module C201c - Connector Pinout

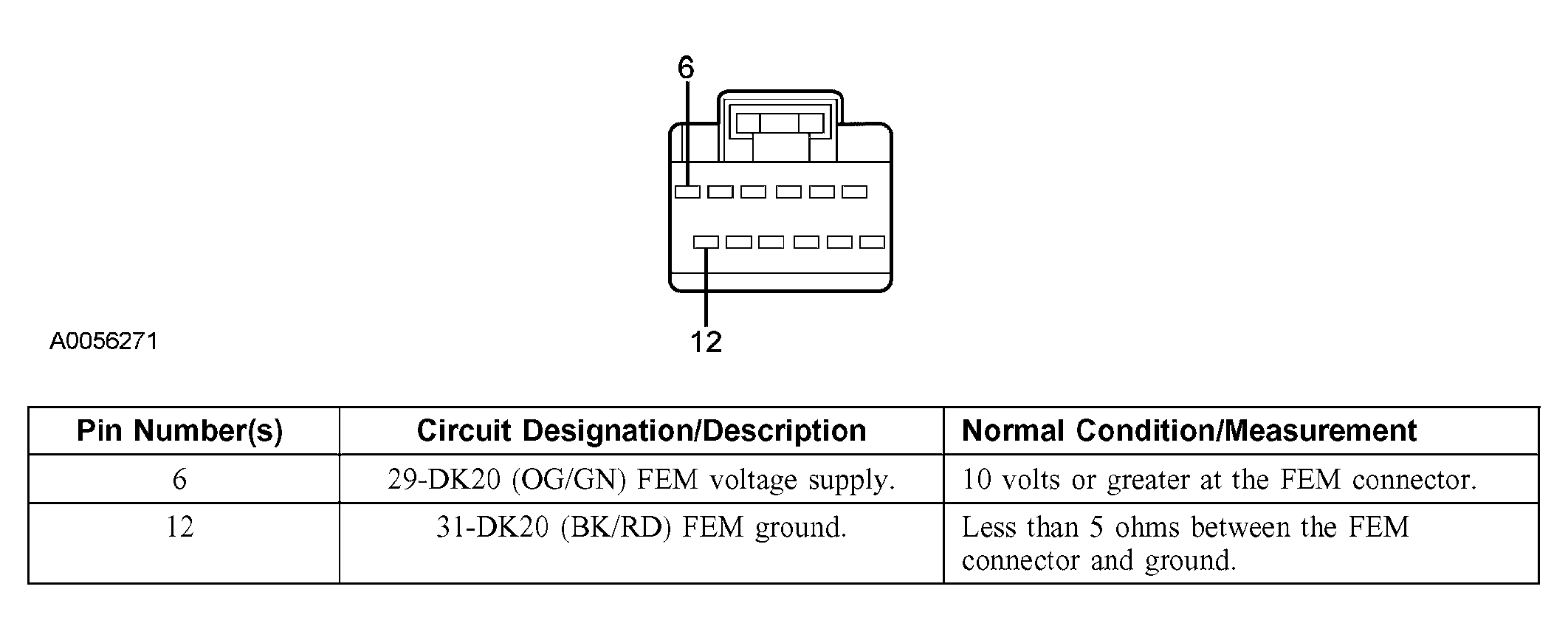

Fig 2: Identifying Front Electronic Module C201c - Connector Pinout
G03999201Courtesy of FORD MOTOR CO.
