Rear Quarter Glass (Convertible)

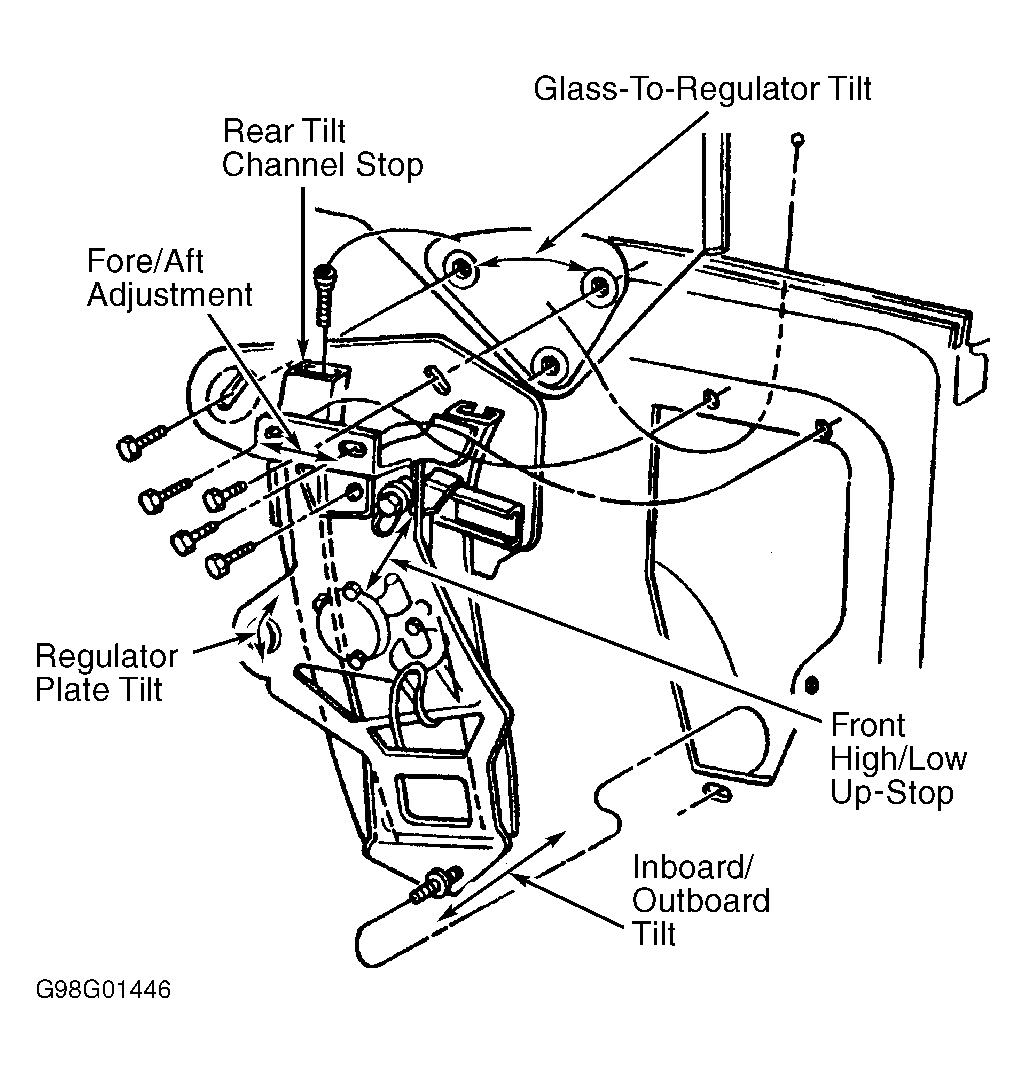

Rear quarter glass has 6 adjustment points. Adjustments that can be made are: fore/aft adjustment, regulator plate tilt, glass-to-regulator tilt, front high/low up stop, rear high/low/tilt channel stop, and inboard/outboard tip. Refer to illustration for proper adjustment points. See Fig 1 .
