Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Open the sunglass storage compartment.

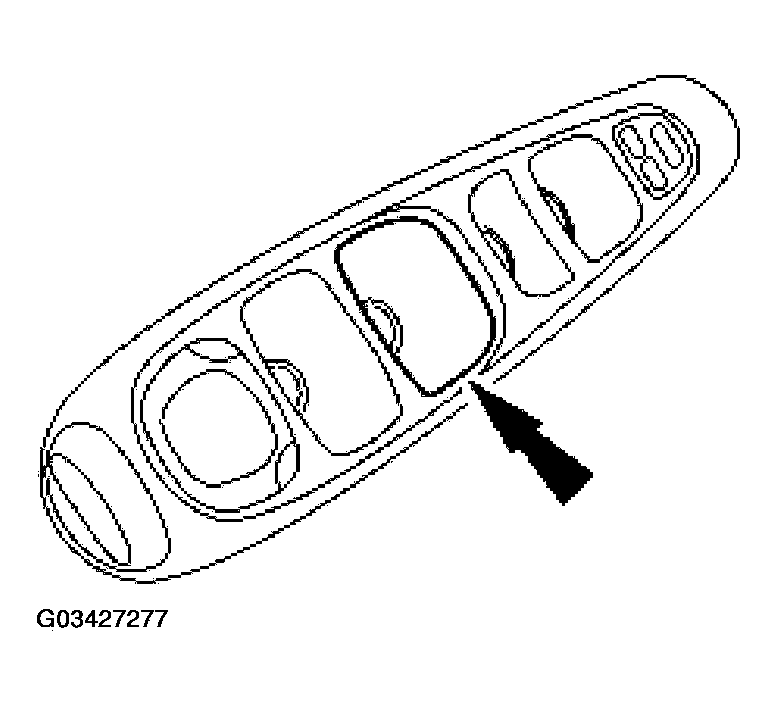

Fig 1: Opening Sunglass Storage Compartment
Courtesy of FORD MOTOR CO.
Remove the overhead console screw.

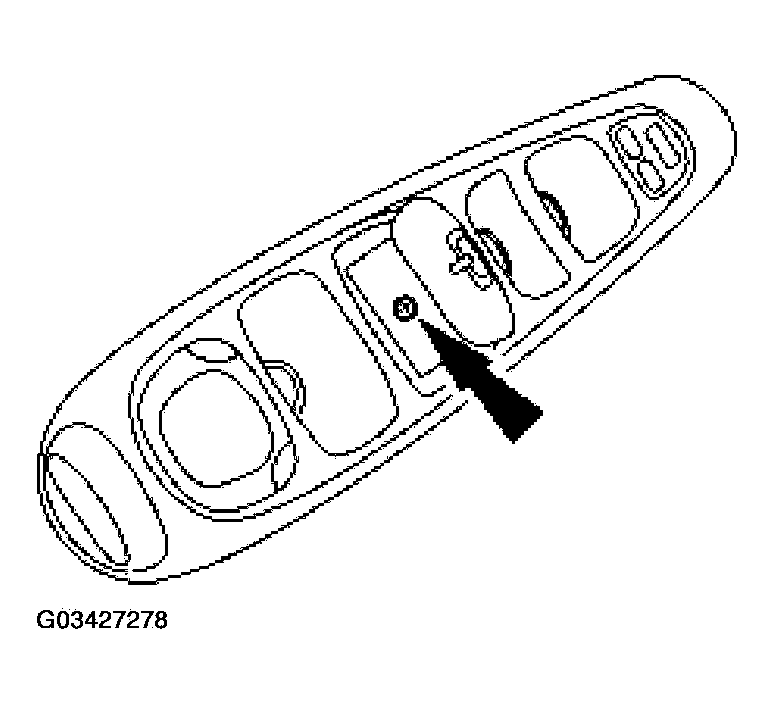

Fig 2: Removing Overhead Console Screw
Courtesy of FORD MOTOR CO.

NOTE: Disengage the four clip attachments by first pulling down on the front end of the overhead console and then the rear end of the overhead console.

Remove the overhead console.
- Disconnect the electrical connectors.
To install, reverse the removal procedure.
