Lamp Assembly - Cargo: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lamp assembly aside.
    • Push the lamp assembly forward and pull the lamp assembly down.

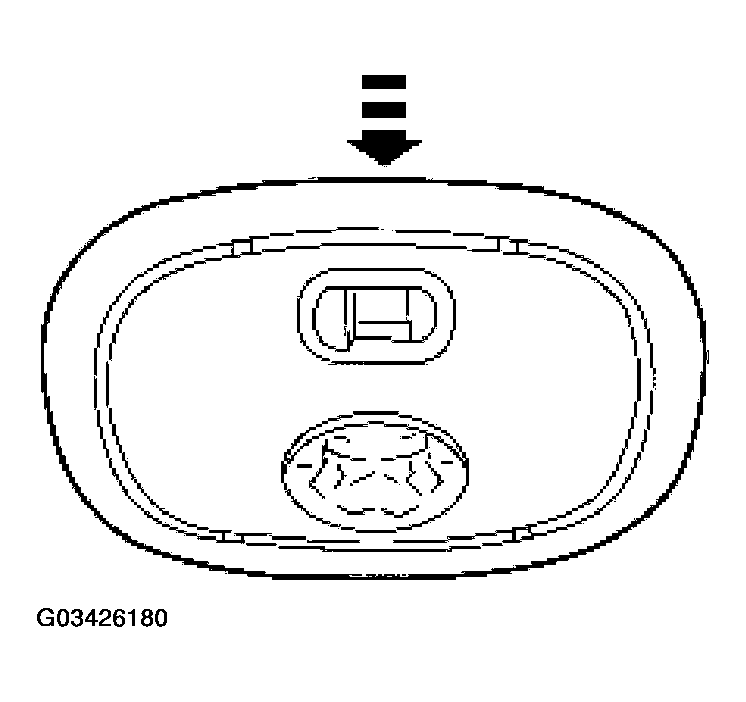

      Fig 1: Pulling Lamp Assembly Down
      G03426180Courtesy of FORD MOTOR CO.
  2. Remove the lamp assembly.
    • Disconnect the electrical connector.

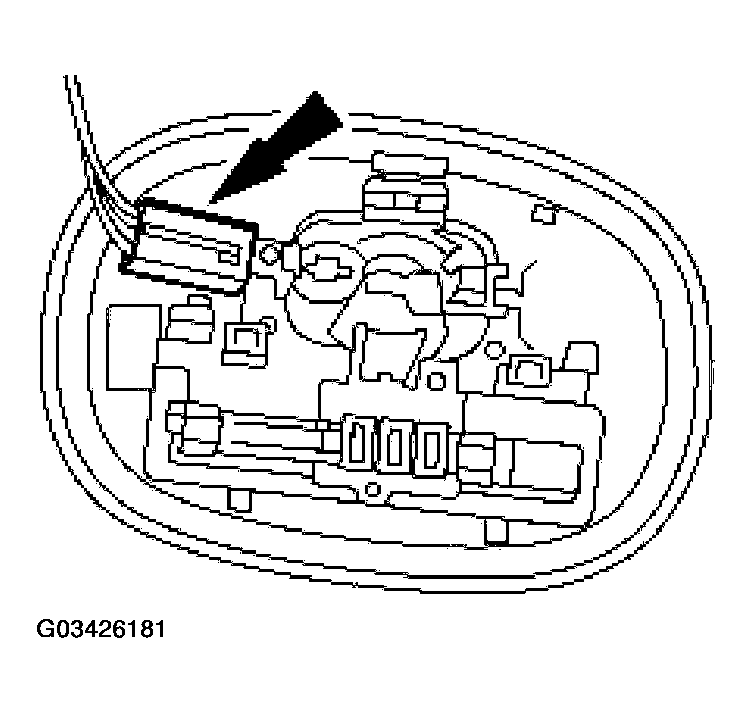

      Fig 2: Disconnecting Electrical Connector
      G03426181Courtesy of FORD MOTOR CO.
