A/C Cycling Switch
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

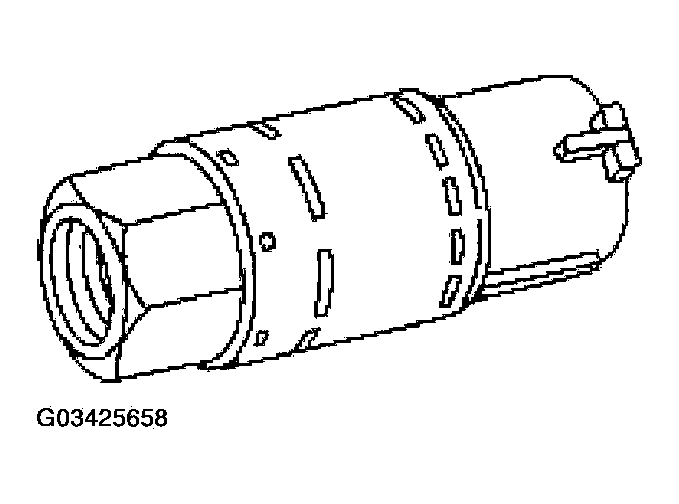

The A/C cycling switch is mounted on a Schrader-type valve fitting on the suction refrigerant line.
- A valve depressor, located inside the threaded end of the A/C cycling switch, presses in on the Schrader valve stem.
- This allows the suction pressure inside the suction accumulator/drier to control the operation of the A/C cycling switch.
- The electrical switch contacts open when the suction pressure drops, the contacts close when the suction pressure rises. For specifications regarding operating pressure(s), refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
- When the A/C cycling switch contacts close, the A/C clutch field coil is energized.
- When the A/C cycling switch contacts open, the A/C clutch field coil is de-energized and compressor operation stops.
- The A/C cycling switch will control the A/C evaporator core pressure at a point where the plate/fin surface temperature will be maintained slightly above freezing.
- This prevents icing of the A/C evaporator core and blockage of air flow.
- It is not necessary to discharge the refrigerant system to remove the A/C cycling switch.
