Module - Parking Aid: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RR quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Position the sound insulator aside.

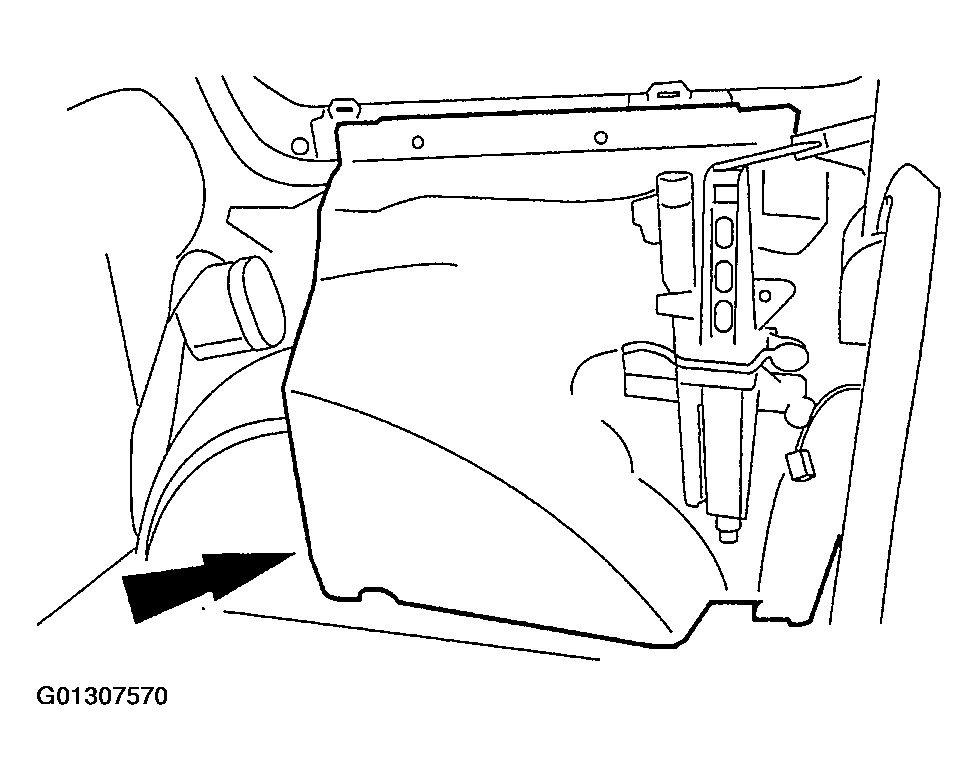

Fig 1: Identifying Module - Parking Aid
Courtesy of FORD MOTOR CO.
Remove the PAM.
1. Disconnect the electrical connector.
2. Remove the nut.
3. Remove the PAM.

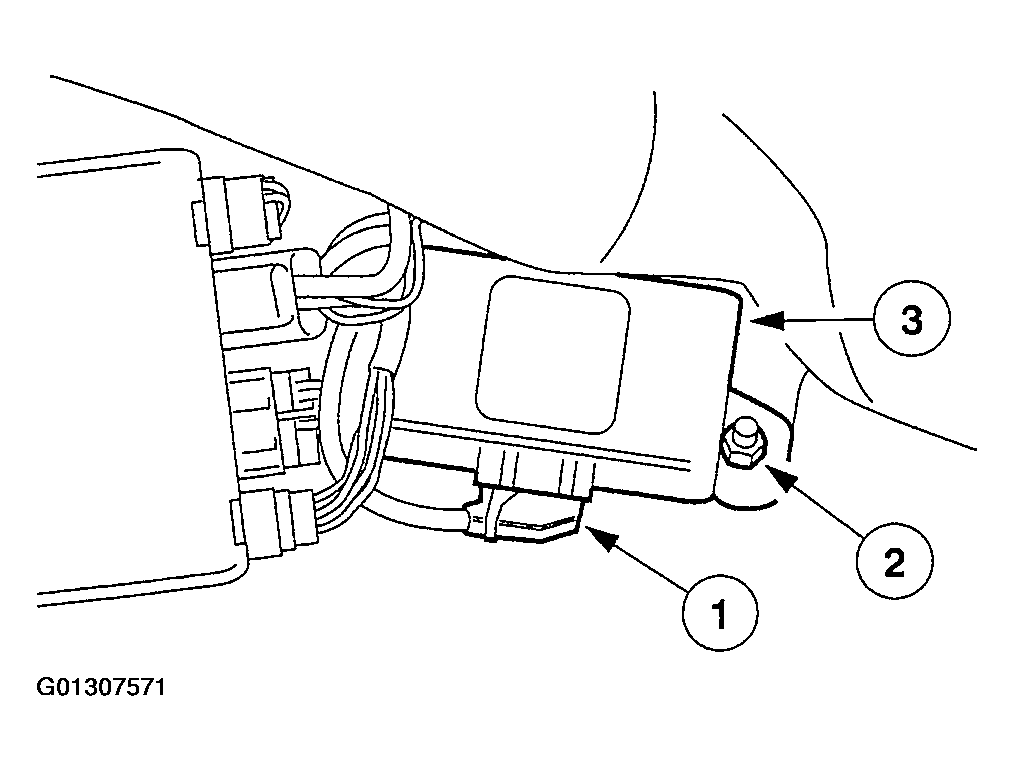

  Fig 2: Identifying Electrical Connector And Pam
  Courtesy of FORD MOTOR CO.
