Gearshift Lever: Removal

WARNING: This page is about a different car, the 2002 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the gearshift lever cover.
    1. Remove the gearshift lever knob.
    2. Unclip the cover.
      • Disconnect the connectors (number and configuration depends on equipment).

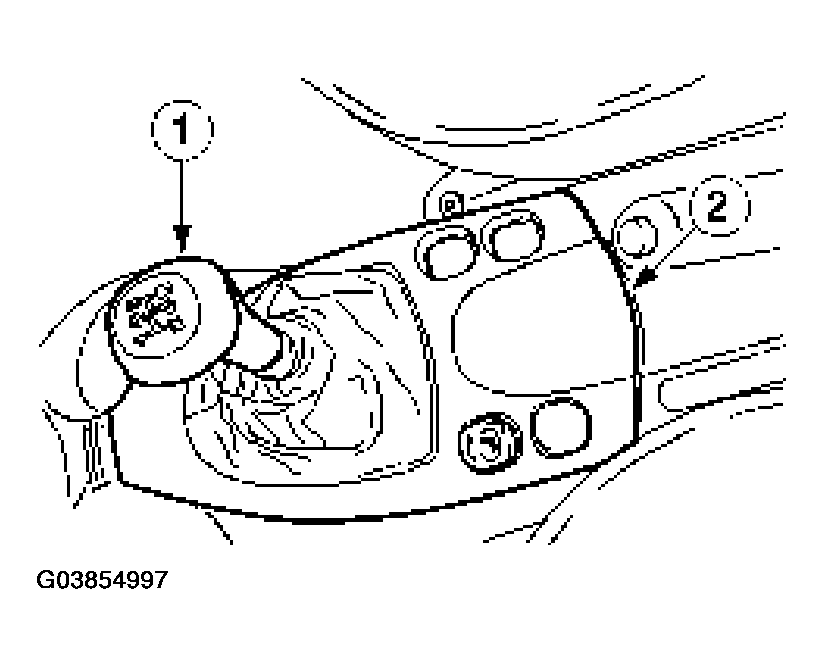

    Fig 1: Removing Gearshift Lever Cover
    G03854997Courtesy of FORD MOTOR CO.
  2. Remove the manual transaxle gearshift lever.
    1. Detach the gearshift and selector cables.
    2. Remove the bolts.

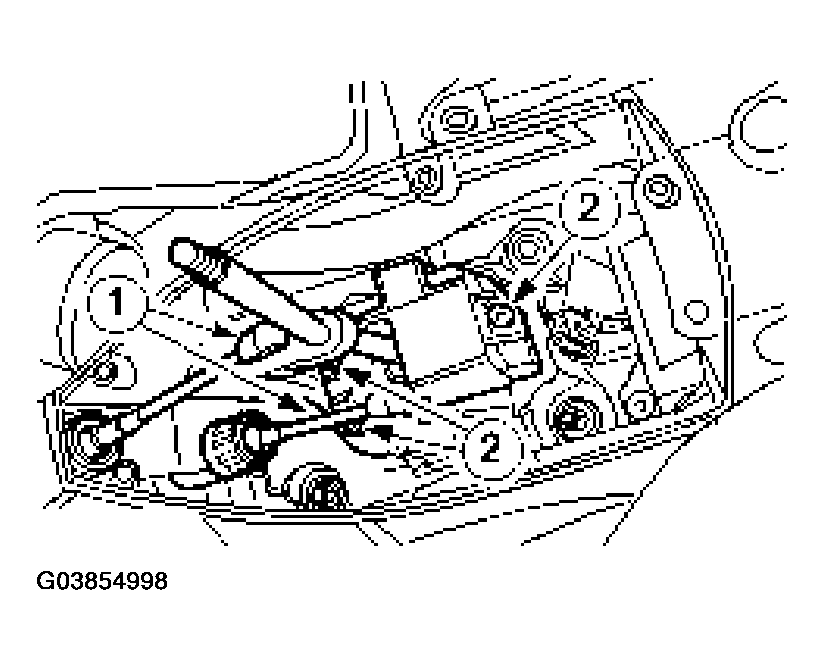

    Fig 2: Removing Manual Transaxle Gearshift Lever
    G03854998Courtesy of FORD MOTOR CO.
