Gearshift Cables: Installation

WARNING: This page is about a different car, the 2002 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the components in reverse order.

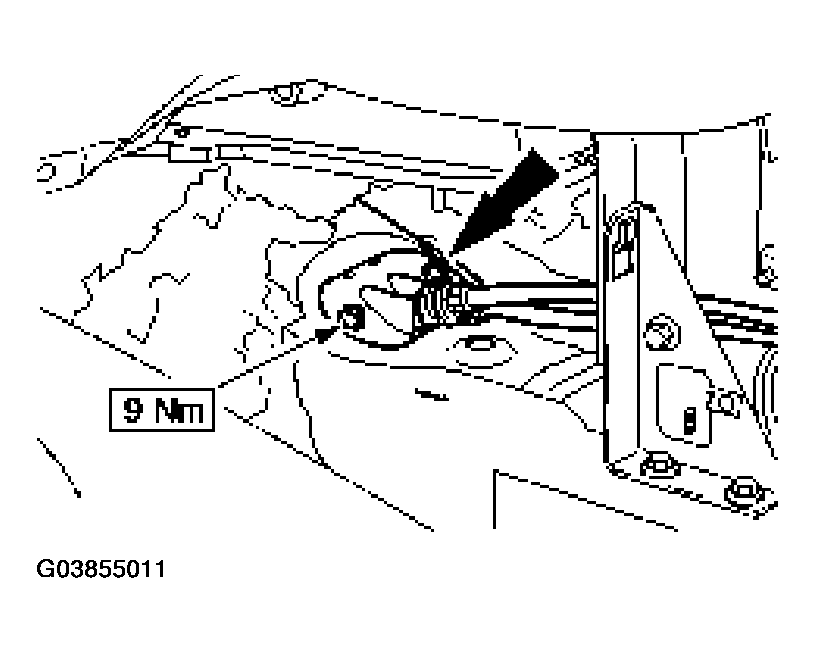

    Fig 1: Installing Components
    G03855011Courtesy of FORD MOTOR CO.

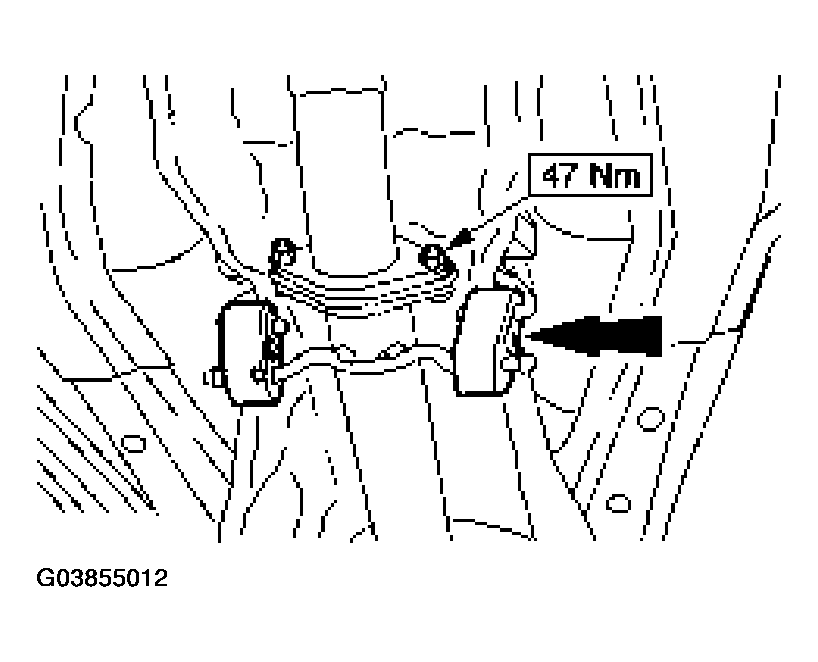

    Fig 2: Installing Components
    G03855012Courtesy of FORD MOTOR CO.
  2. Adjust the shift and selector cables. Refer to MANUAL TRANSMISSION/TRANSAXLE AND CLUTCH - GENERAL INFORMATION .
