Component Locations

RESTRAINT SYSTEM COMPONENT LOCATIONS

Component (1)Location
Clockspring On steering column, behind steering wheel
Driver-side air bag module Center of steering wheel
Passenger-side air bag module Right side of instrument panel, above glove box
Restraints Control Module (RCM) Under center console, forward of hand brake
Seat belt pretensioner Attached to buckle end of front seat belts
Side air bag crash sensors On support, under front seats
Side air bag modules Behind outboard bolster of front seat backs
(1) See Fig 1.

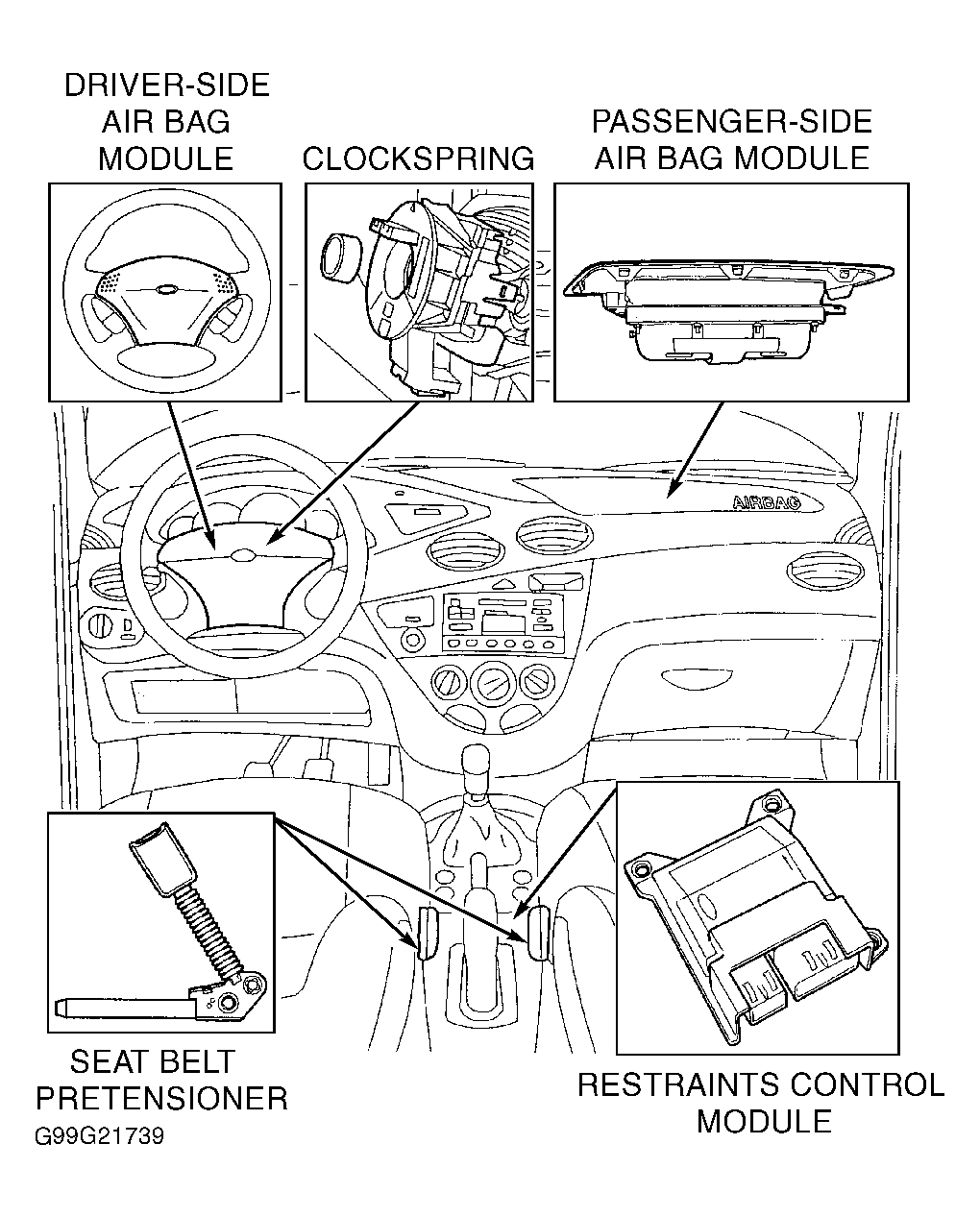

Fig 1: Locating Restraint System Components (1 Of 2)
G99G21739Courtesy of FORD MOTOR CO.

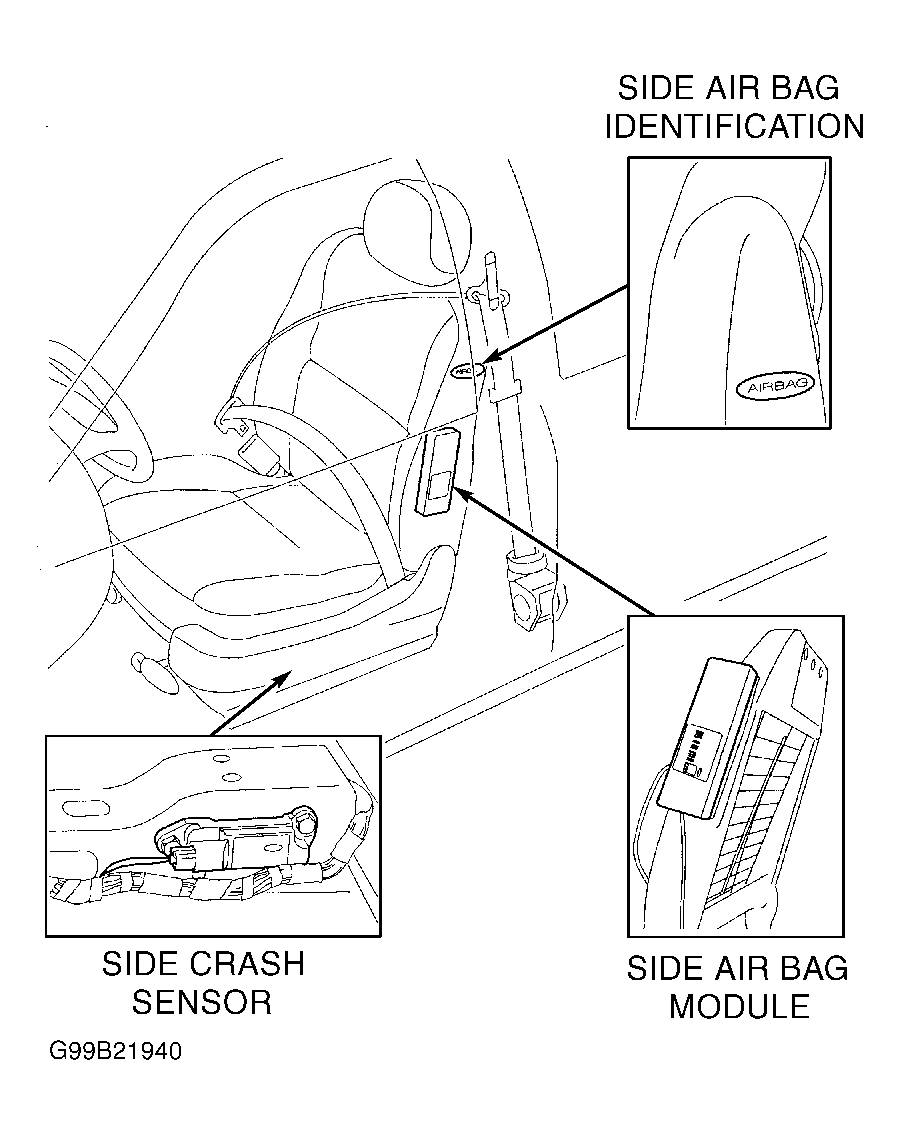

Fig 2: Locating Restraint System Components (2 Of 2)
G99B21940Courtesy of FORD MOTOR CO.
