Crankshaft End Play
WARNING: This page is about a different car, the 2002 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL EQUIPMENT
| Dial indicator |
| Dial indicator fixture |
- Determine the end float

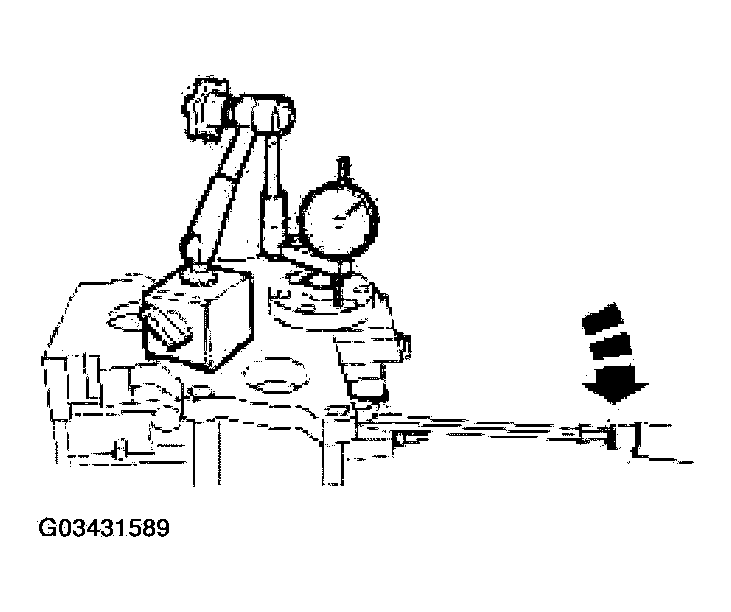

- Place on the dial indicator and bracket.
- Determine the end float by raising the crankshaft with the aid of a screwdriver.
- If necessary, correct the end float by using new thrust half washers.
NOTE:
Operation for vehicles with Zetec-E engines only. Dismantling the crank gear is not permitted on Zetec-SE engines.
