Camshaft End Play

WARNING: This page is about a different car, the 2002 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the camshaft is to specification.

Using a Dial Indicator Gauge, measure the end play.
- Slide the camshaft in both directions. Read and note the maximum and minimum values on the Dial Indicator Gauge.
  - End play = maximum value minus minimum value
- If the measurement is out of specification, install new components.

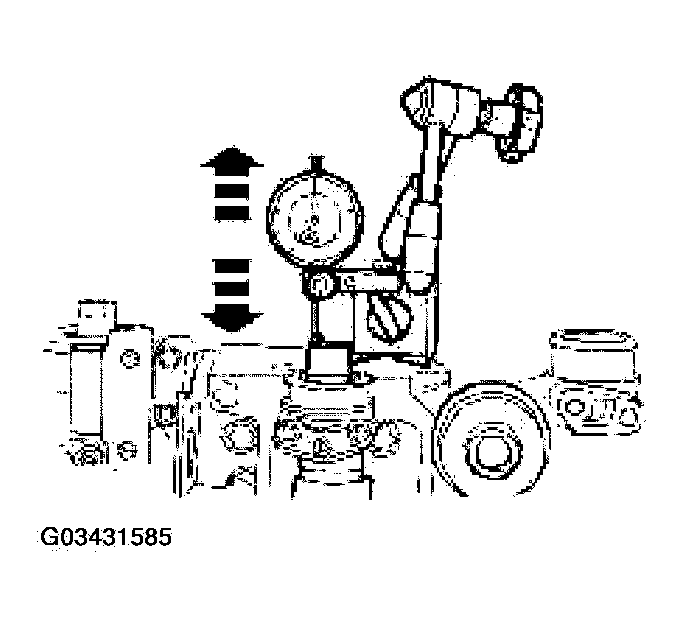

  Fig 1: Measuring Camshaft End Play
  Courtesy of FORD MOTOR CO.
