Bypass Tube: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
    • Install a new O-ring.

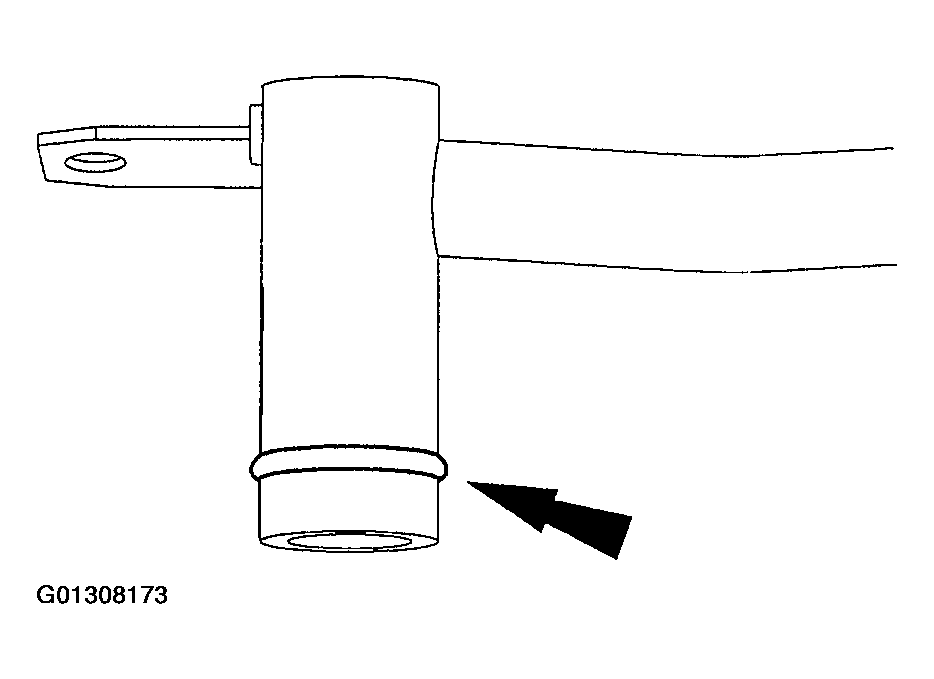

      Fig 1: Locating O-Ring
      G01308173Courtesy of FORD MOTOR CO.

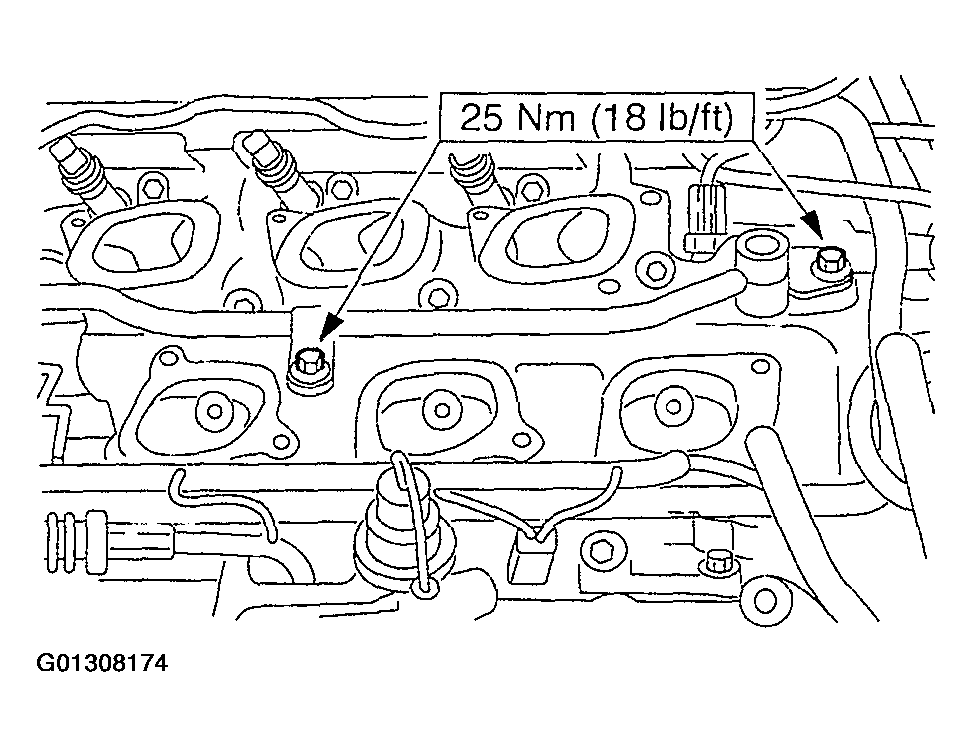

      Fig 2: Identifying Water Bypass Tube Bolt Tightening Torque
      G01308174Courtesy of FORD MOTOR CO.
