Pinpoint Test K: The Instrument Cluster Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

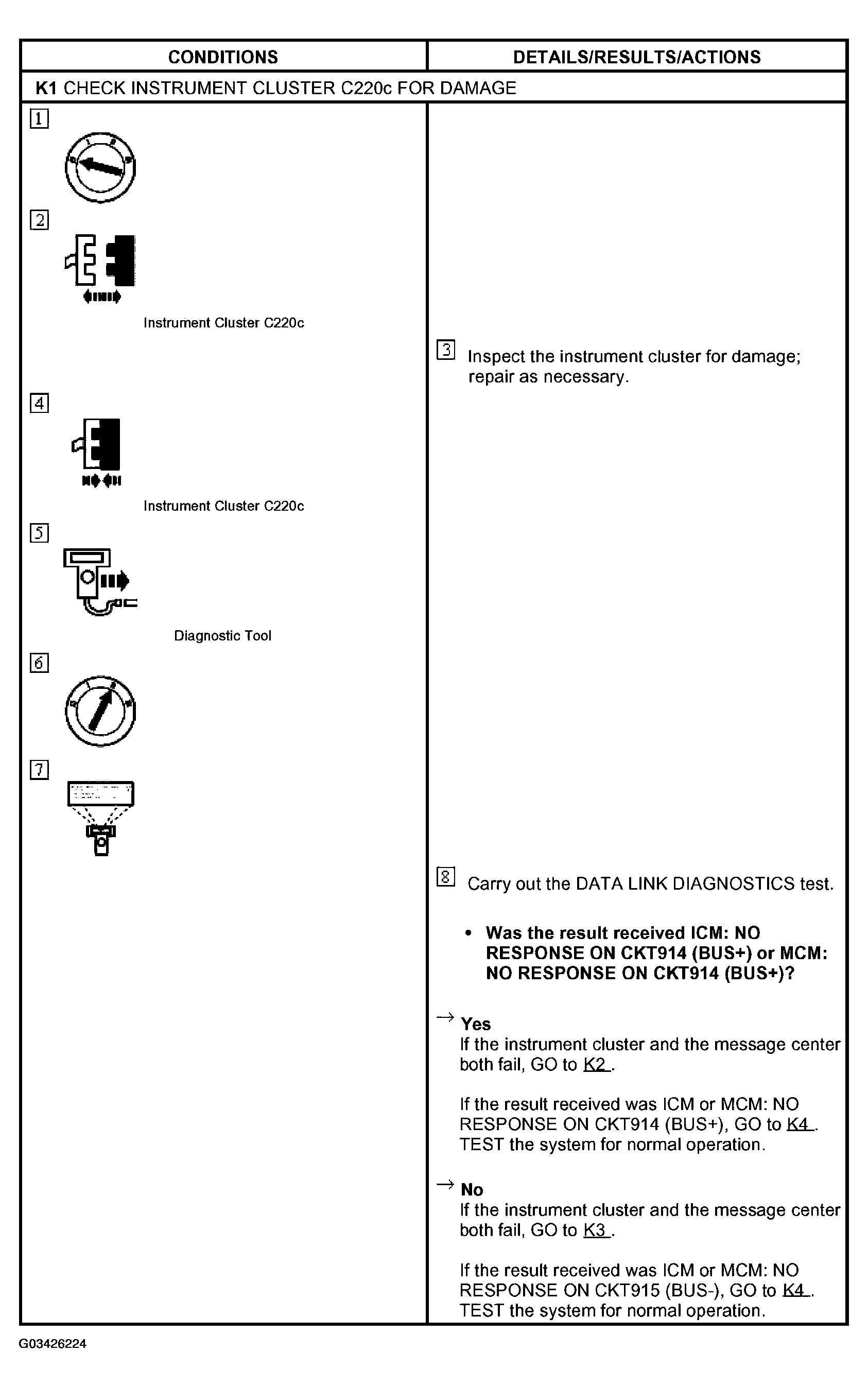

Fig 1: Pinpoint Test K Chart - Instrument Cluster Does Not Respond To Diagnostic Tool (K1)
Courtesy of FORD MOTOR CO.

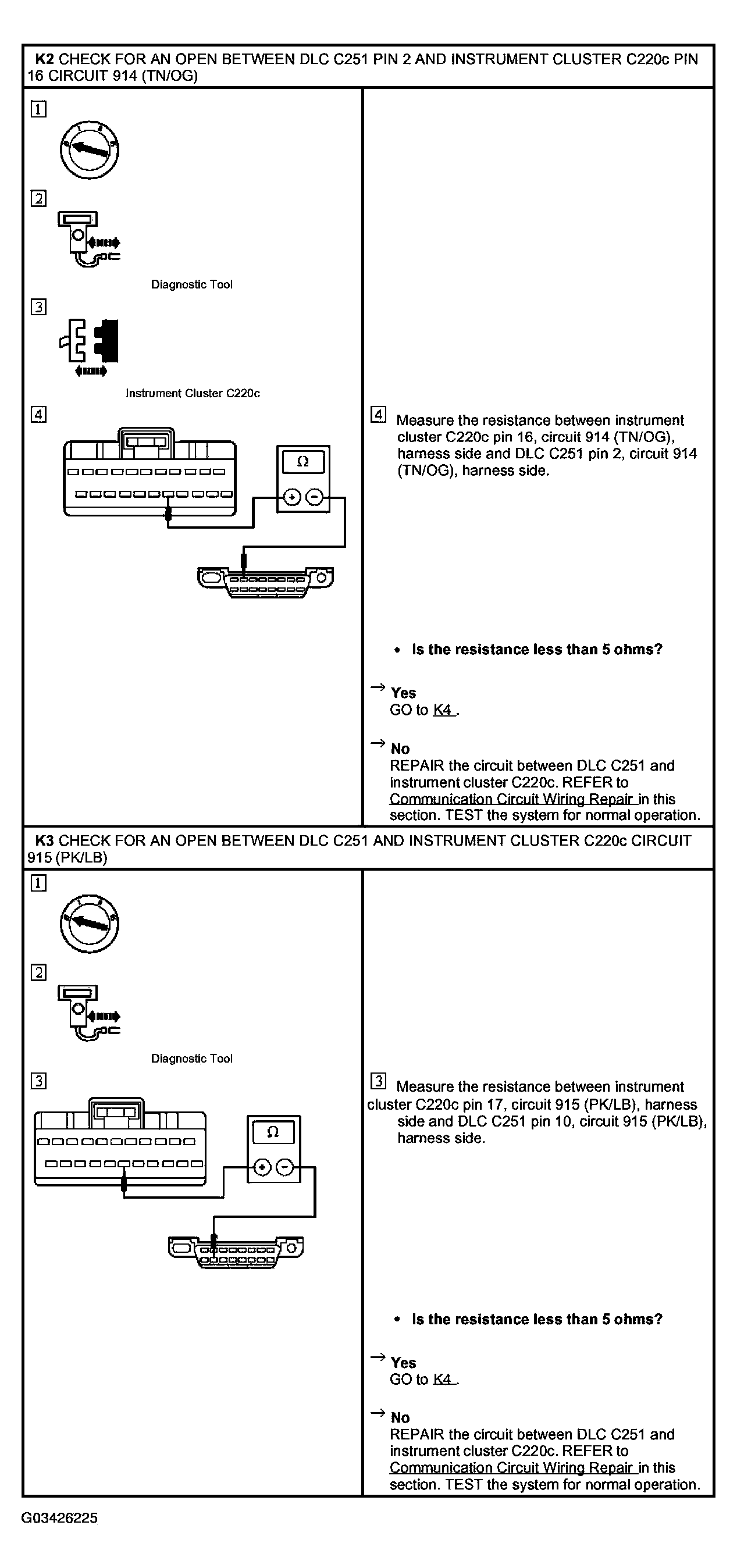

Fig 2: Pinpoint Test K Chart - Instrument Cluster Does Not Respond To Diagnostic Tool (K2 & K3)
Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test K Chart - Instrument Cluster Does Not Respond To Diagnostic Tool (K4)
