Exhaust Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

Attach the exhaust manifold to the cylinder head using the alignment spacers with the two outside bolts and a new manifold gasket.

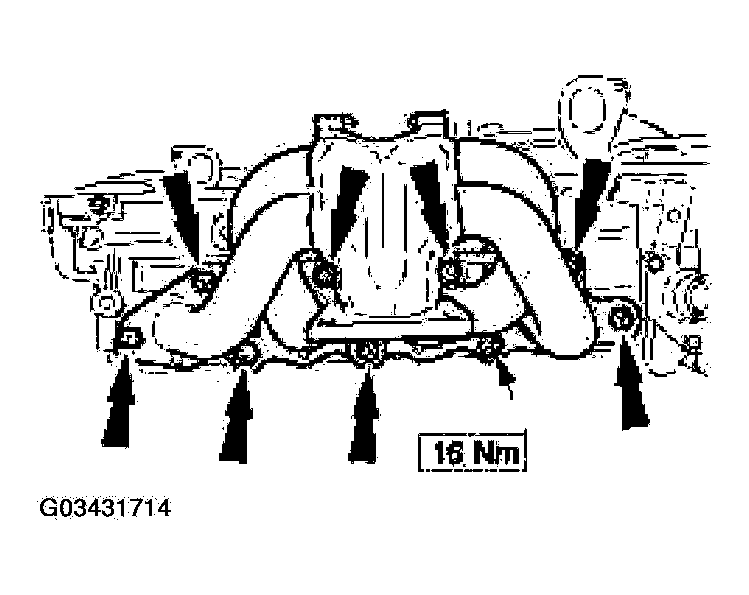

Fig 1: Installing Exhaust Manifold To Cylinder Head
Courtesy of FORD MOTOR CO.

CAUTION: Always follow the correct installation sequence for the catalytic converter in order to prevent damage.

CAUTION: Do not allow debris to fall into the exhaust manifold.

NOTE: Examine the threads in the exhaust catalyst cone and EGR. Clean as required.

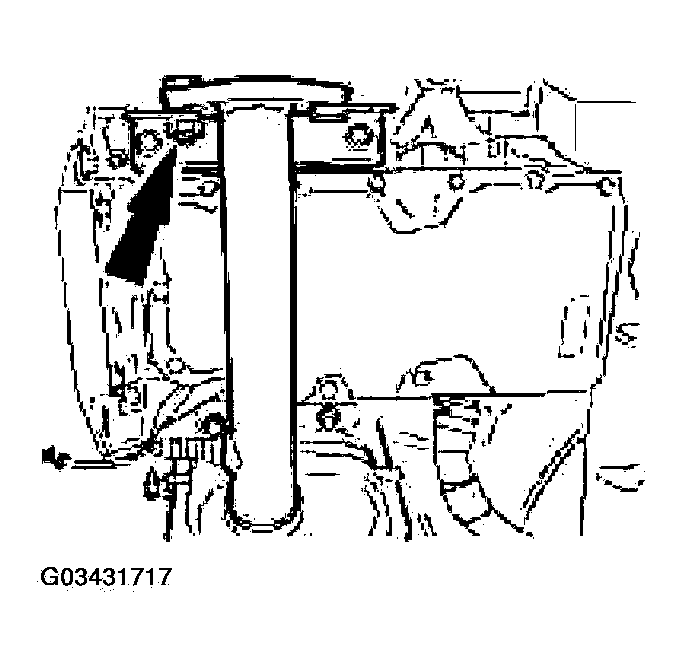

Fig 2: Loosening Bracket Of Catalytic Converter

Courtesy of FORD MOTOR CO.

NOTE: Use a new gasket.

NOTE: Do not fully tighten the nuts/bolts at this stage.

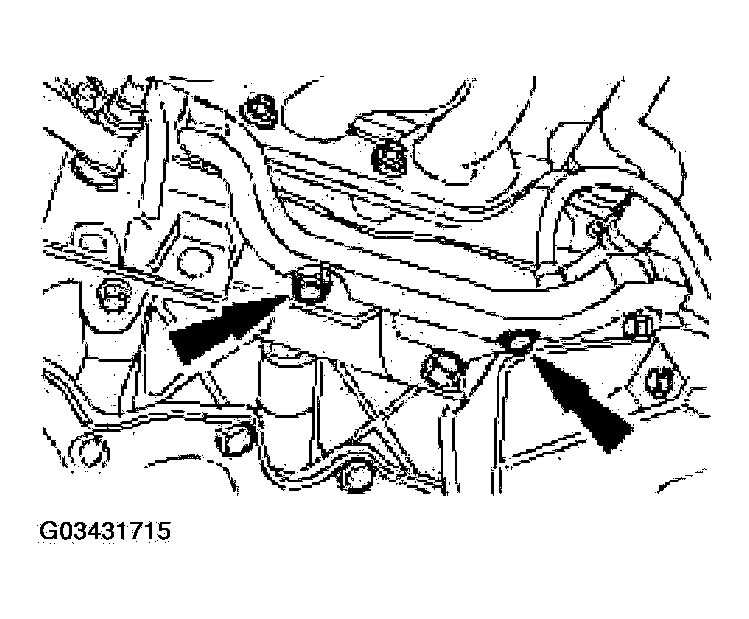

Fig 3: Installing Catalytic Converter On The Exhaust Manifold

Courtesy of FORD MOTOR CO.

Position the catalytic converter on the exhaust manifold using new hardware.
Raise and support the vehicle.
Using a nut and bolt, temporarily secure the catalytic converter to the bracket at the rear.

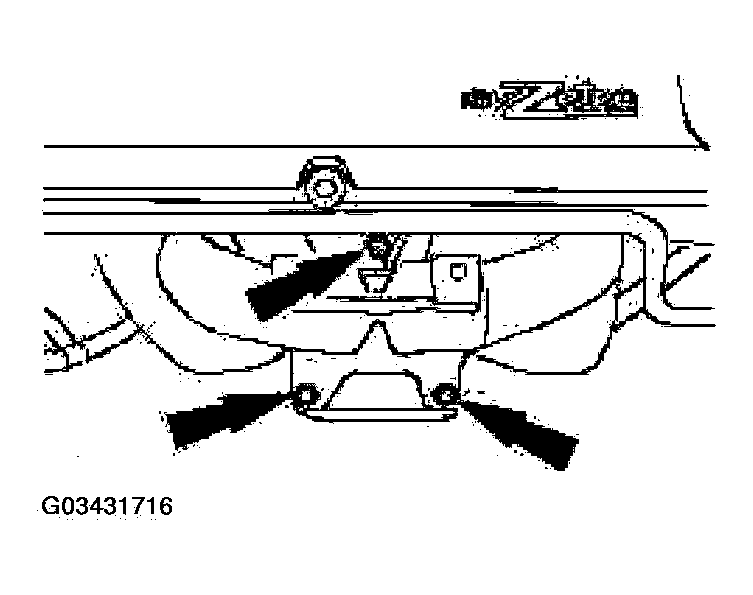

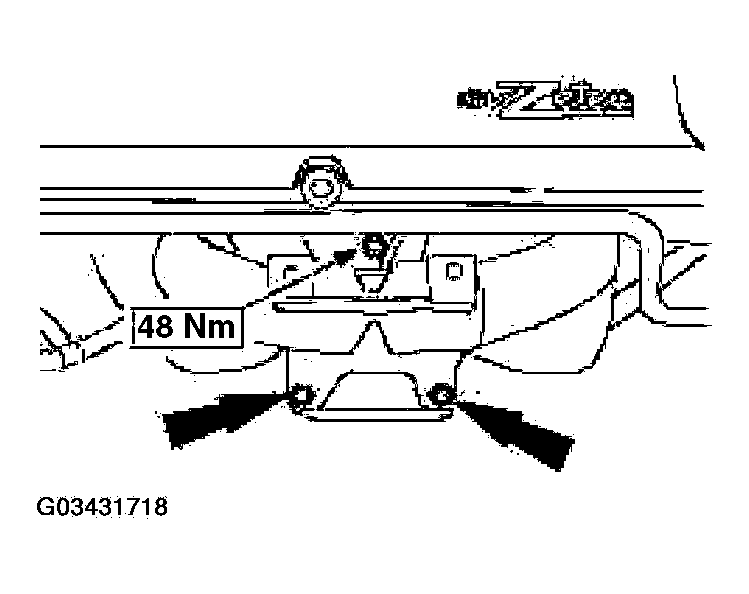

Fig 4: Securing Catalytic Converter To Bracket At Rear
Courtesy of FORD MOTOR CO.
Tighten the catalytic converter to the exhaust manifold.

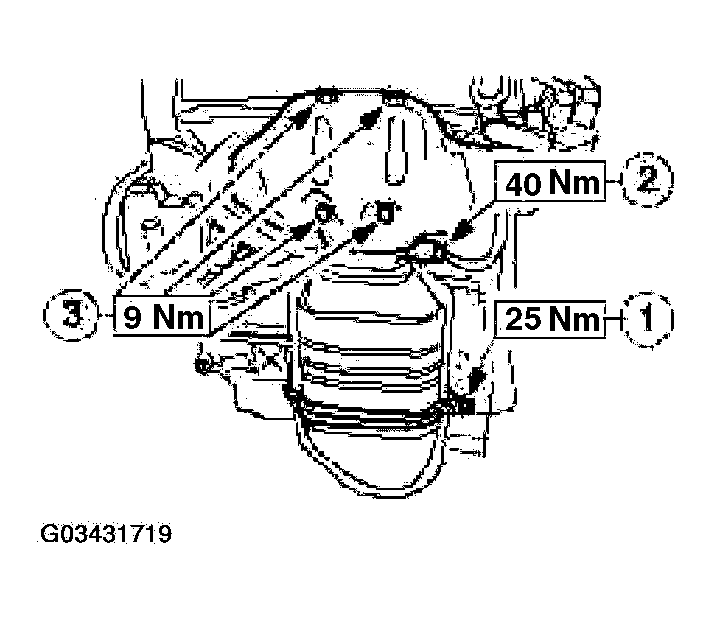

Fig 5: Tightening Catalytic Converter To Exhaust Manifold
Courtesy of FORD MOTOR CO.

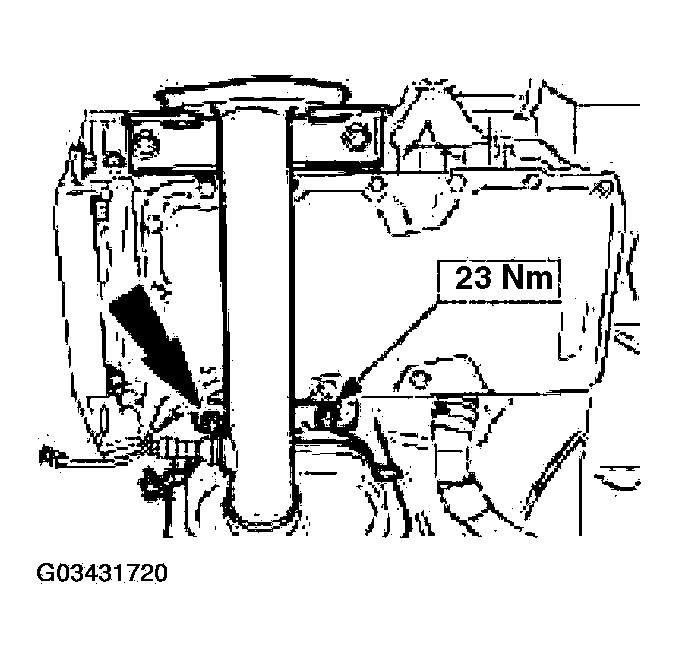

NOTE: Always use a new catalyst to EGR valve pipe assembly.

NOTE: Loosely assemble the pipe to both the EGR valve and the exhaust catalyst before tightening the unions.
