Timing Belt

WARNING: This page is about a different variant/trim than selected.

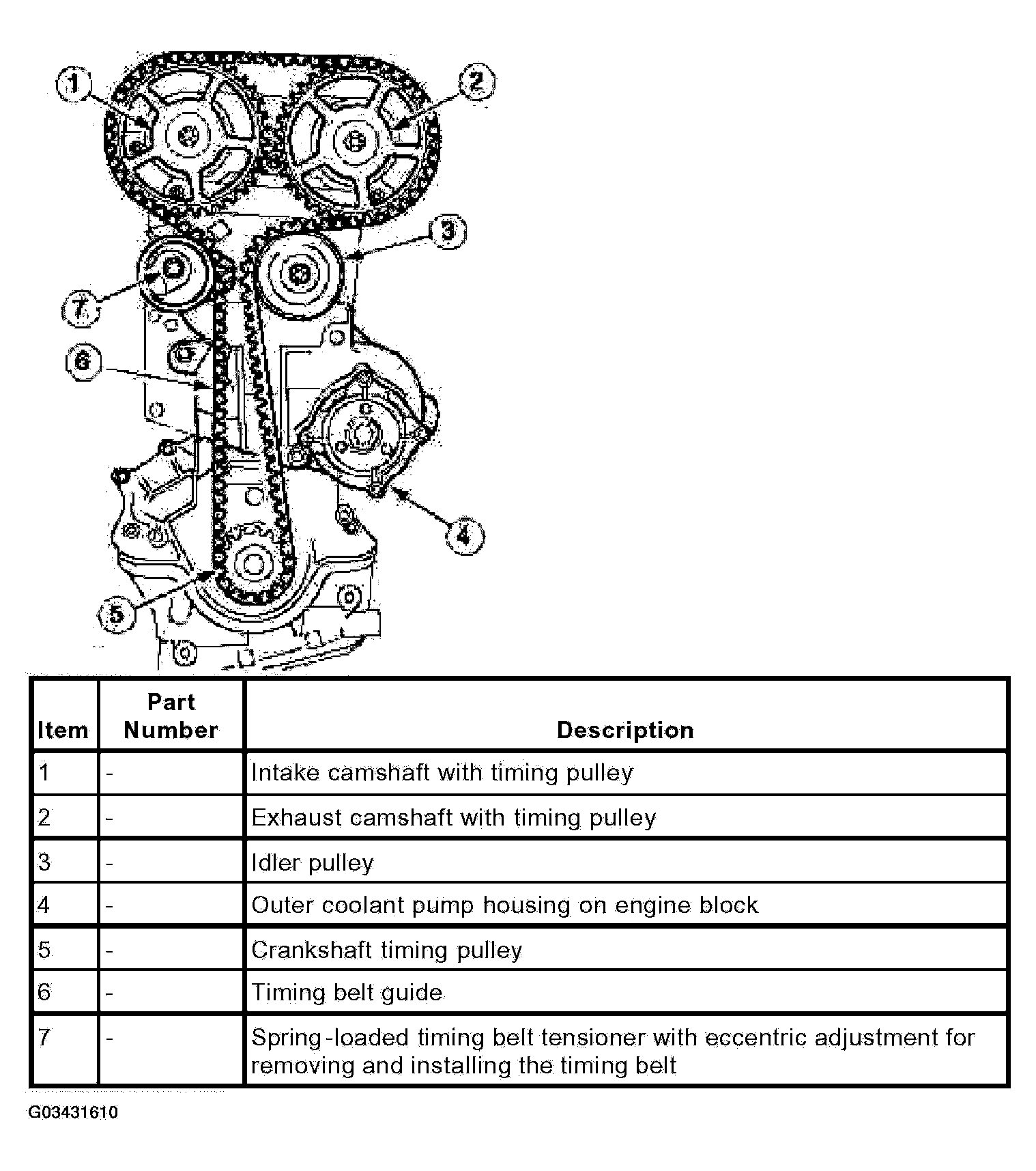

Fig 1: Identifying Engine Timing Belt Components

Courtesy of FORD MOTOR CO.

A new timing belt must be installed after 150,000 km (90,000 miles) or after 10 years.
A new timing belt must always be installed after repair work in which it was removed.
