Transaxle (Escape)
NOTE:
The manufacturer gives 2 procedures for checking and adding fluid to the Escape transaxle.
- Using Filler Plug In Side Of Transaxle - Clean area around fill plug. Remove fill plug from side of transaxle.
- Check fluid level. Level should be at bottom level of filler plug opening.
- Add fluid as needed. Install plug and tighten securly.
- Using VSS Sensor Opening - Remove Vehicle Speed Sensor (VSS) from transaxle. Wipe oil from VSS driven gear and housing. Remove "O" ring from housing.

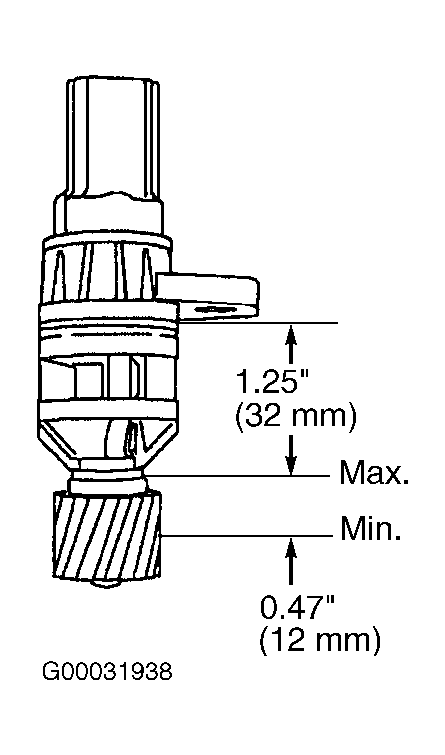

- Insert VSS into transaxle. Remove VSS and check fluid level as indicated on VSS driven gear. See Fig 1.
- Add appropriate fluid as necessary through VSS hole. See RECOMMENDED FLUID .
- Install "O" ring, replace if necessary. Install VSS and tighten bolt to 62 INCH lbs. (7 N.m).
