Power Door Lock Switch
NOTE:
Use self-powered test light or DVOM, test power door lock switch. Some switches contain diodes. Reverse test leads during resistance checks before condemning switches.

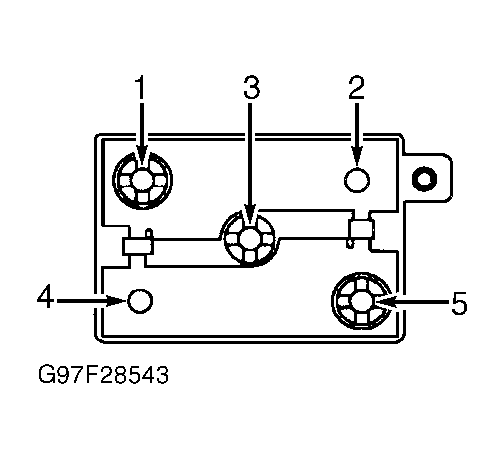

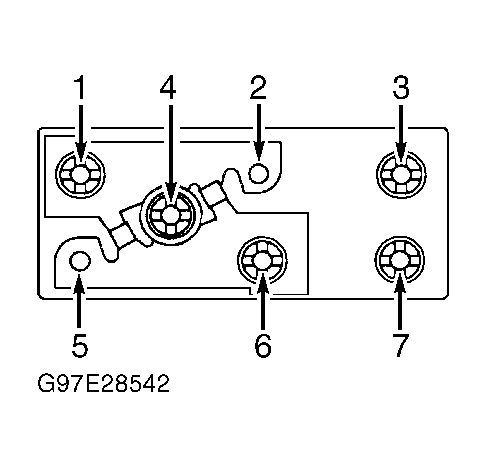

Remove door lock switch to be tested. Position switch with terminals facing upward, and raised part of rocker switch on left. See Fig 1 or Fig 2 . Check continuity between switch terminals with switch in specified position. See TESTING POWER DOOR LOCK SWITCHES table. Replace switch as necessary and recheck system operation.
TESTING POWER DOOR LOCK SWITCHES
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Door Lock Switch | ||
| Neutral | 1 & 2; 5 & 6 | |
| Lock | 1 & 2; 4 & 6 | |
| Unlock | 1 & 4; 5 & 6 | |
| Liftgate Switch | ||
| Neutral | 1 & 2; 4 & 5 | |
| Lock | 1 & 2; 3 & 5 | |
| Unlock | 1 & 3; 4 & 5 | |
