Bulb-Map Lamp: Removal

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Remove the map lamp assembly. For additional information, refer to LAMP ASSEMBLY-MAP .
Release the clip on the bulb(s) to be replaced.

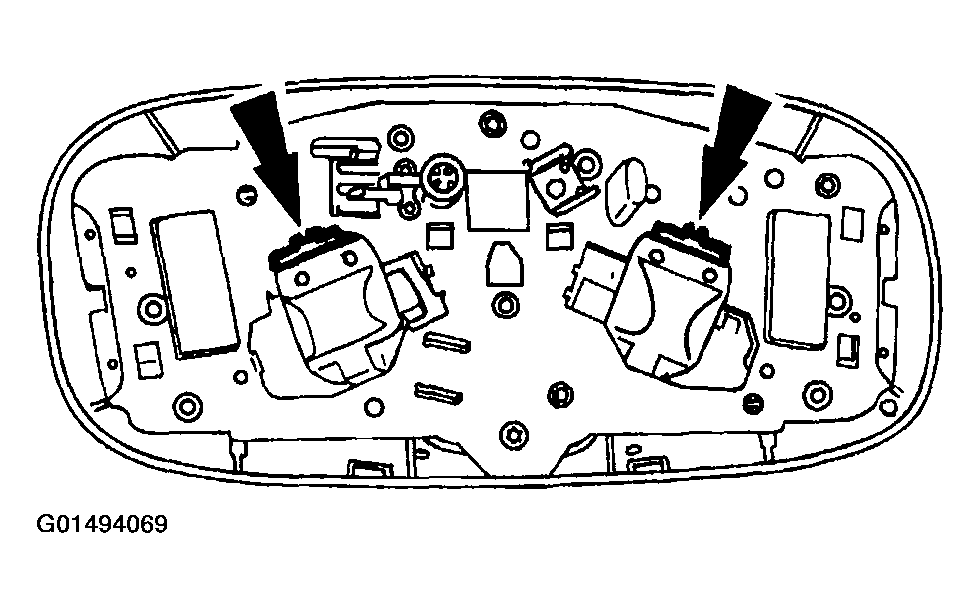

Fig 1: Releasing Clip On Bulb
Courtesy of FORD MOTOR CO.
Remove the map lamp bulb.

Remove the map lamp reflector.
Remove the map lamp bulb from the clips.

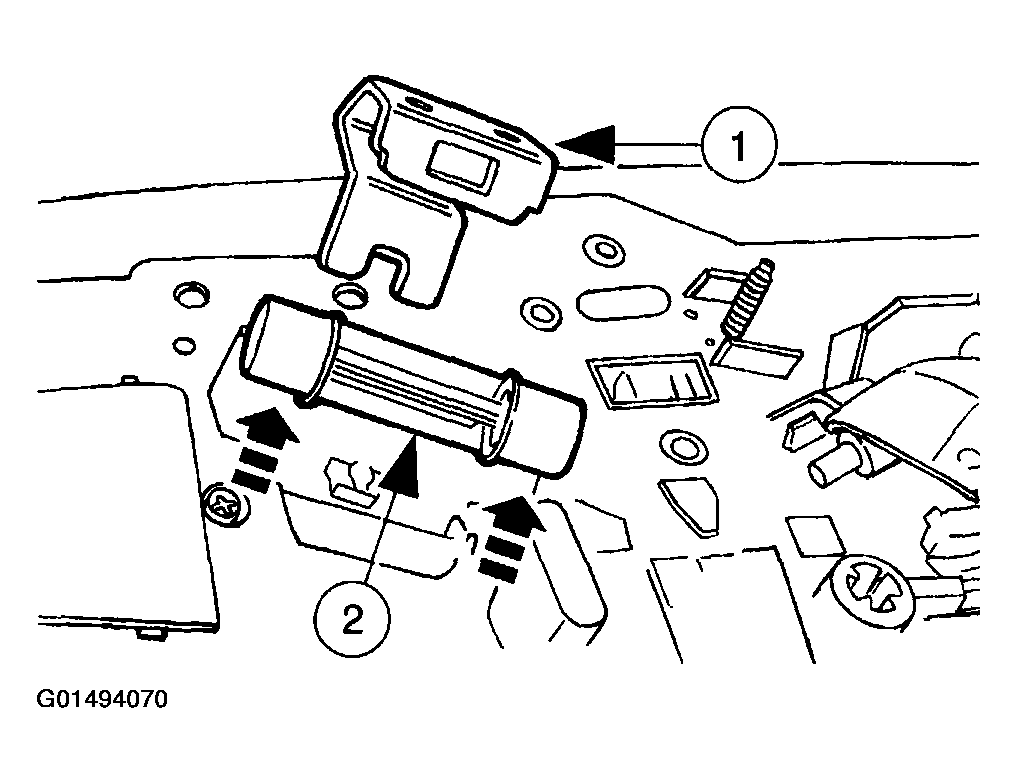

Fig 2: Removing Map Lamp Bulb From Clips
Courtesy of FORD MOTOR CO.
