Checking Procedures: Windstar

  1. Measure dimension "A" between bottom of front ball joint and floor. Measure dimension "B" between center of front lower control arm mounting bolt and floor. Subtract dimension "A" from dimension "B". This is the riding height. See Fig 1. See RIDE HEIGHT SPECIFICATIONS (WINDSTAR)  table.
  2. Measure rear ride height between vehicle body and rear axle. See Fig 1. See RIDE HEIGHT SPECIFICATIONS (WINDSTAR)  table.
RIDE HEIGHT SPECIFICATIONS (WINDSTAR)

Application In. (mm)
Windstar
Front 2.03-2.69 (51.6-68.3)
Rear 6.12-7.08 (155.4-179.8)

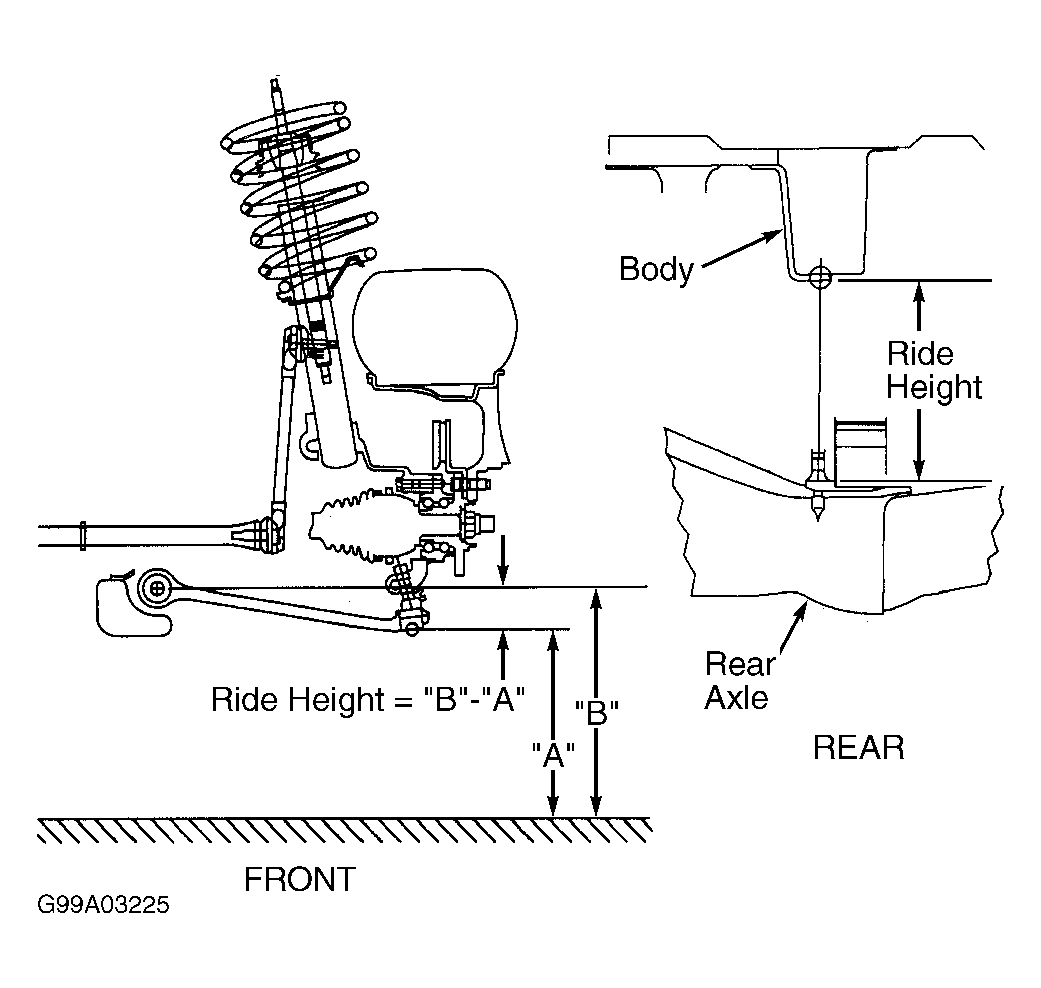

Fig 1: Ride Height Measuring Points (Windstar)
G99A03225Courtesy of FORD MOTOR CO.
