Steering Column-Automatic Transmission: Assembly

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the steering column lock actuators.
1. Use ignition lock grease to lubricate the steering column lock actuators.
2. Install the steering column lock actuators.

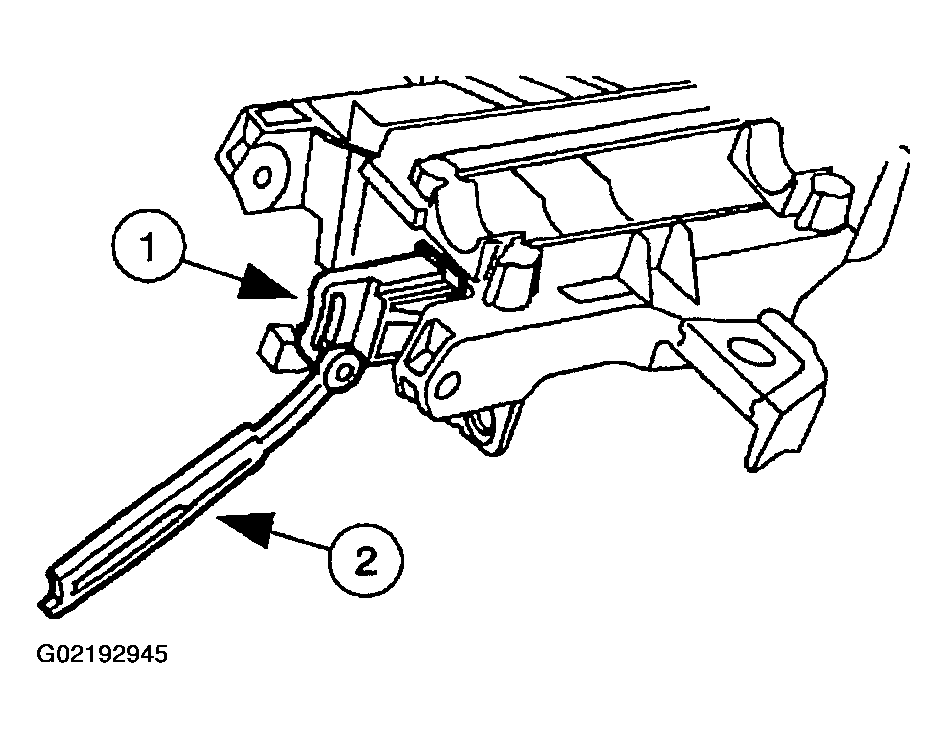

  Fig 1: Installing Steering Column Lock Actuators
  Courtesy of FORD MOTOR CO.

NOTE: Coat all surfaces with ignition lock grease.

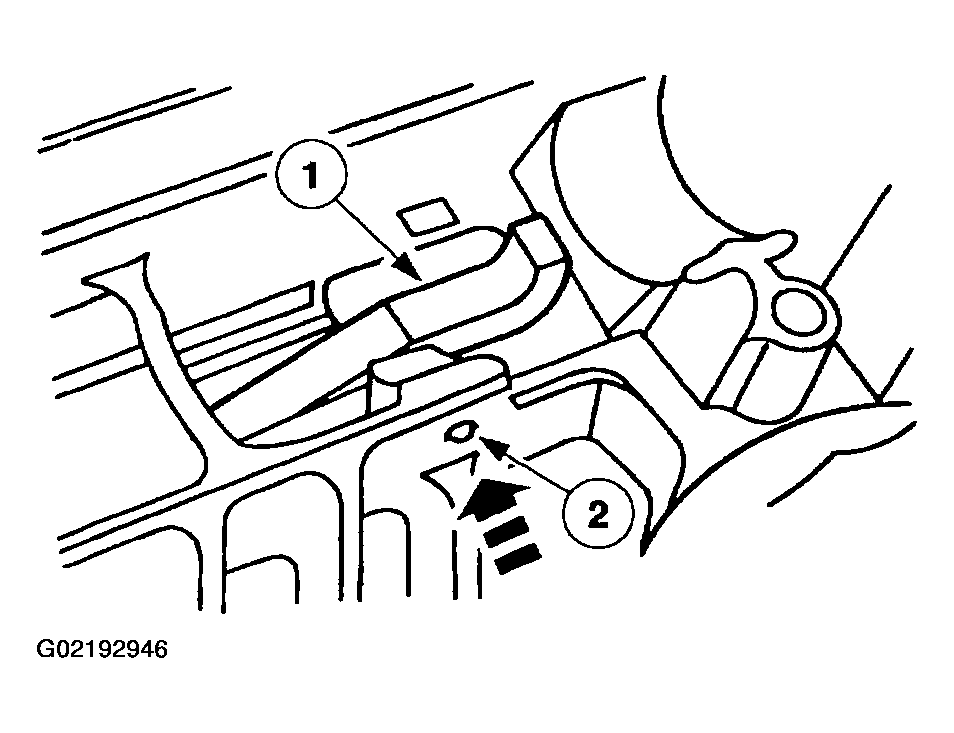

Install the steering column lock pawl.
1. Position the steering column lock pawl.
2. Drive in the steering column lock lever pin (3B663).

  Fig 2: Driving In Steering Column Lock Lever Pin
  Courtesy of FORD MOTOR CO.

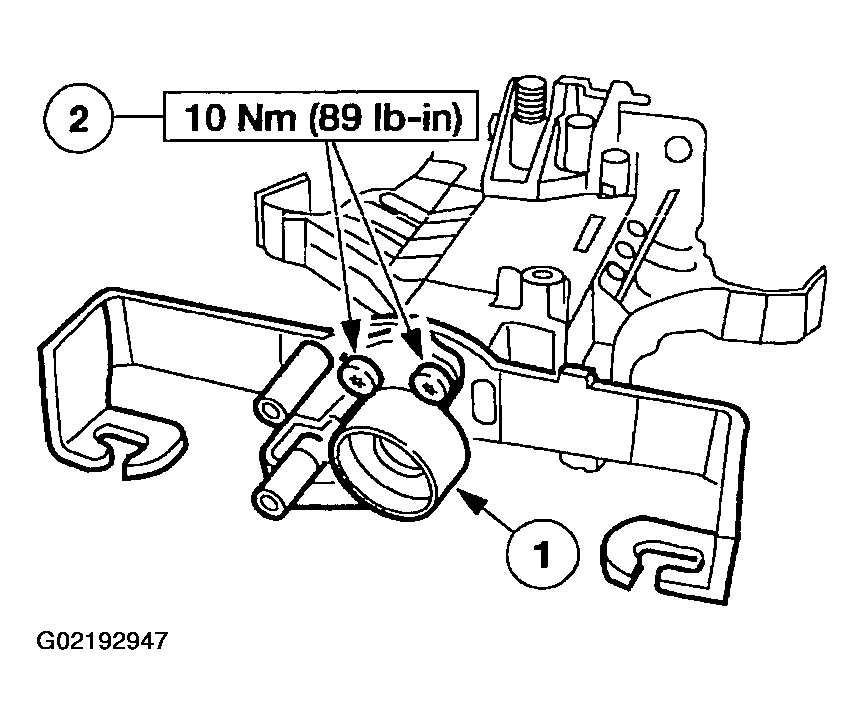

Install the steering column lower bearing retainer (3D681).
1. Position the steering column lower bearing retainer.
2. Install the three bolts.

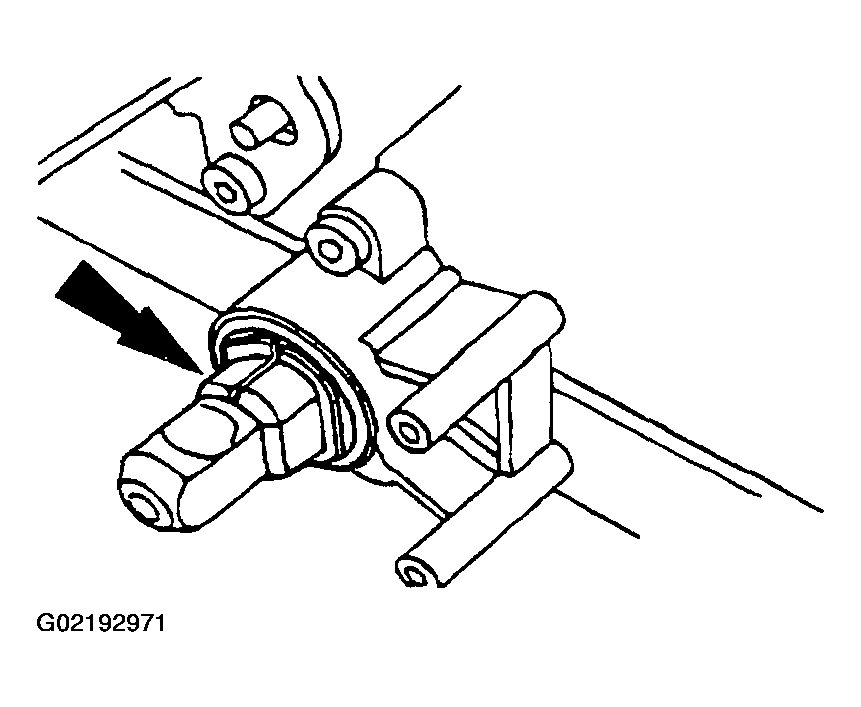

  Fig 3: Installing Steering Column Lower Bearing Retainer
  Courtesy of FORD MOTOR CO.

NOTE: The "UP" position of the bearing must be facing forward, toward the engine.

NOTE: Install the steering column bearing and sleeve so that the inner race is visible when installed.

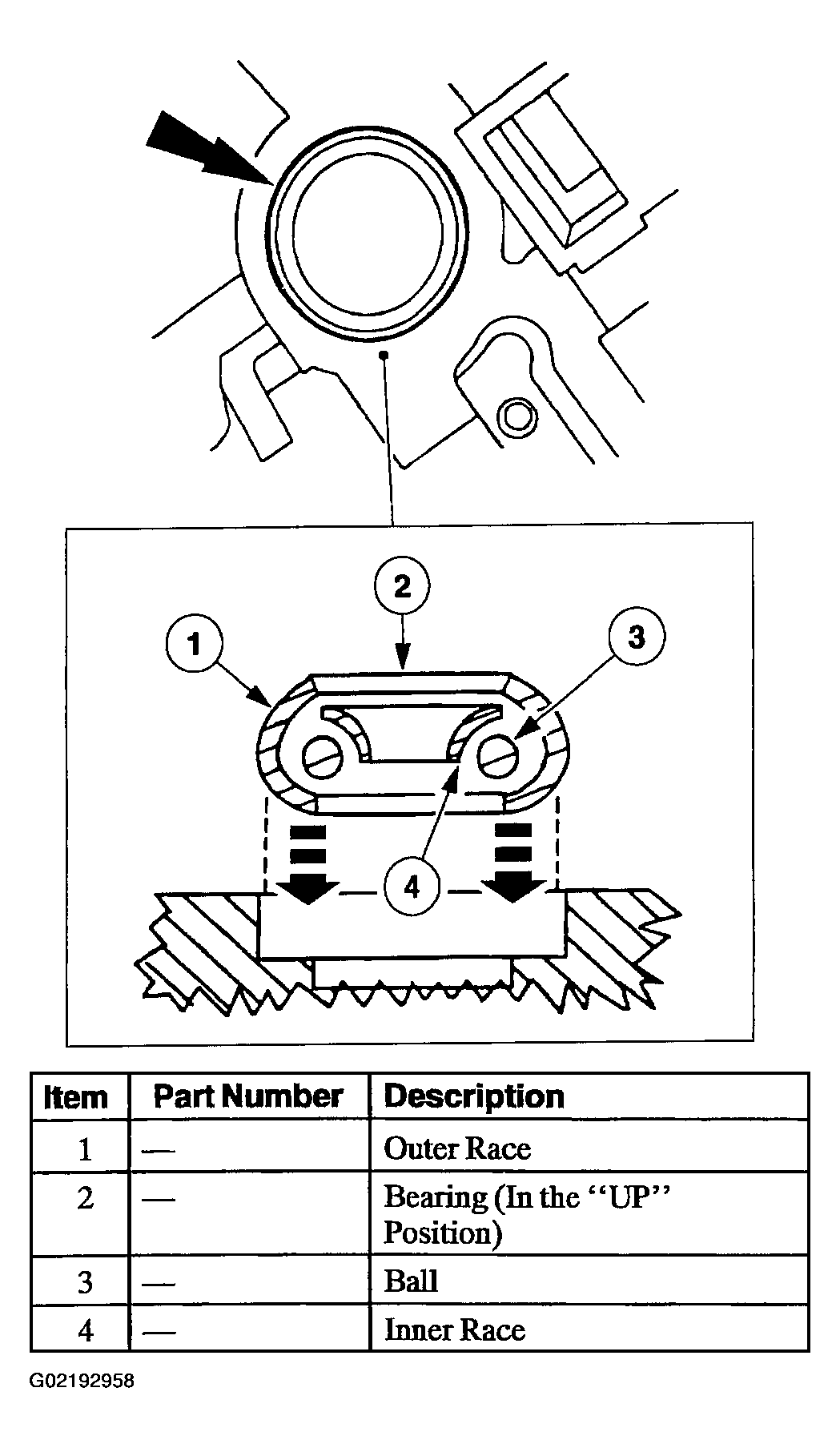

Fig 4: Identifying Steering Column Bearing And Sleeve

Courtesy of FORD MOTOR CO.

Install the steering column bearing and sleeve.
Install the ignition switch. Align the ignition switch with the slot and index mark on the steering column.
- Install the bolts. Tighten to specification.

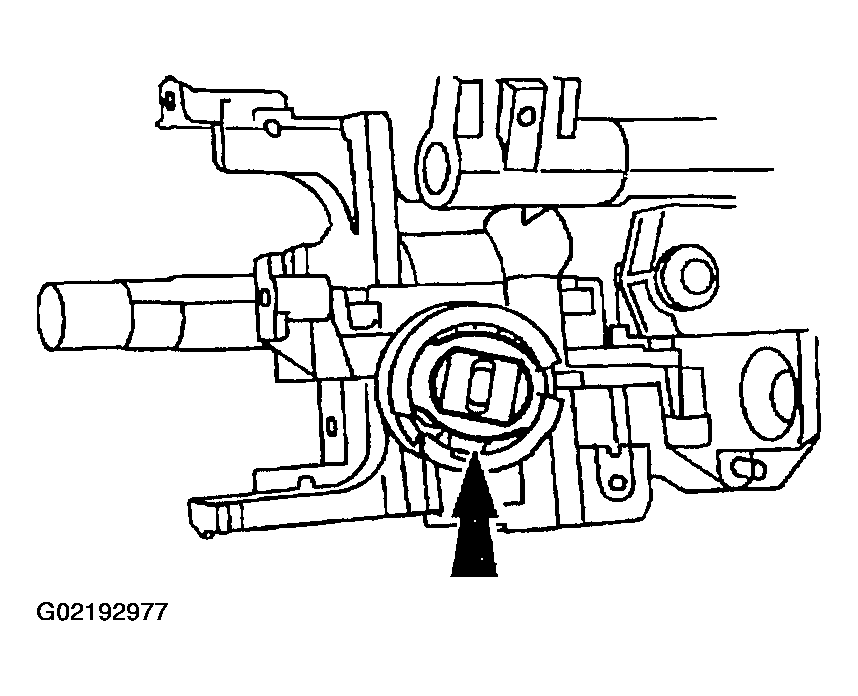

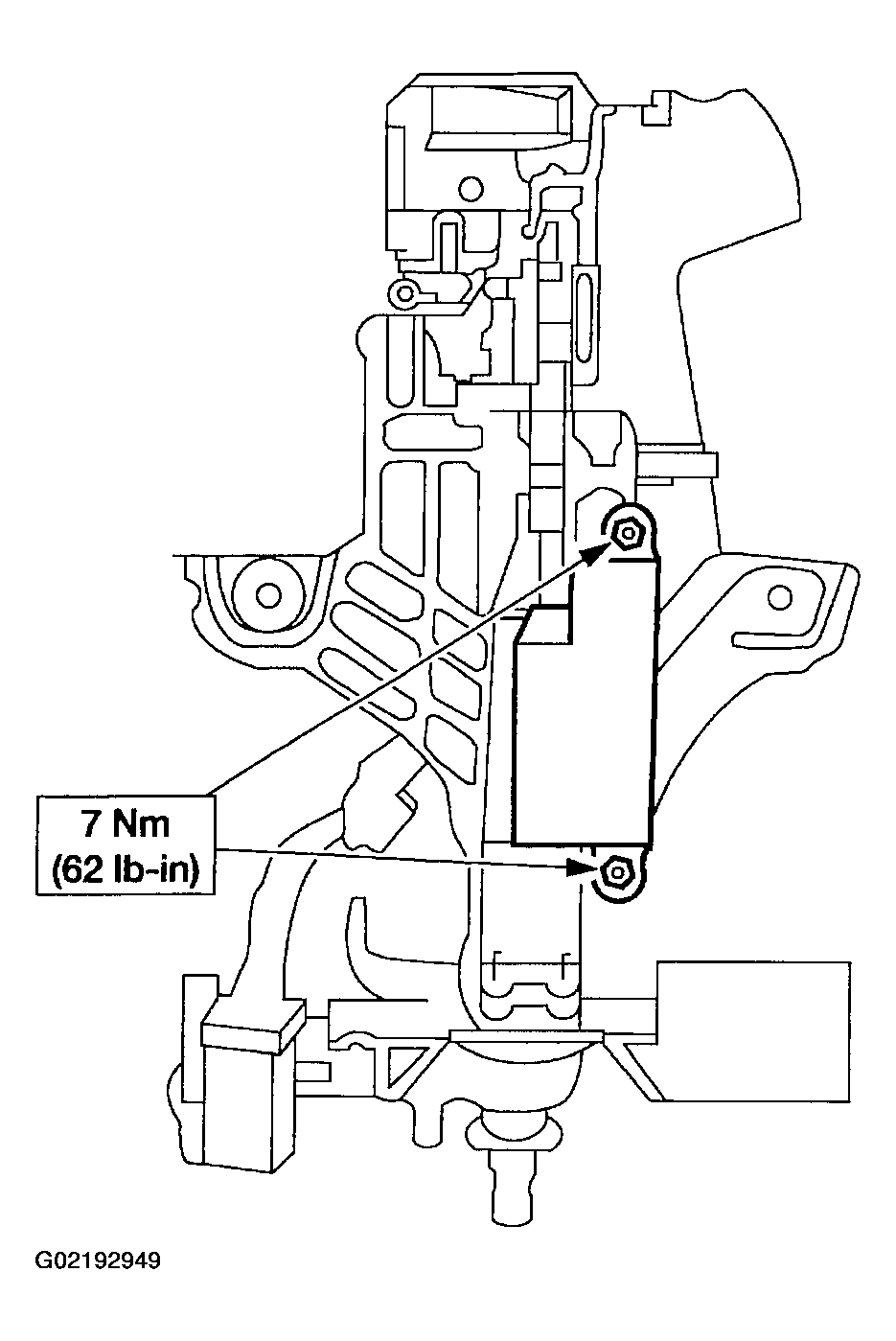

  Fig 5: Installing Ignition Switch
  Courtesy of FORD MOTOR CO.
Install the transmission control selector lever spring clip and the gearshift lever socket bushings (7335) on the shift tube.
- Coat the gearshift lever socket bushings with steering gear grease.

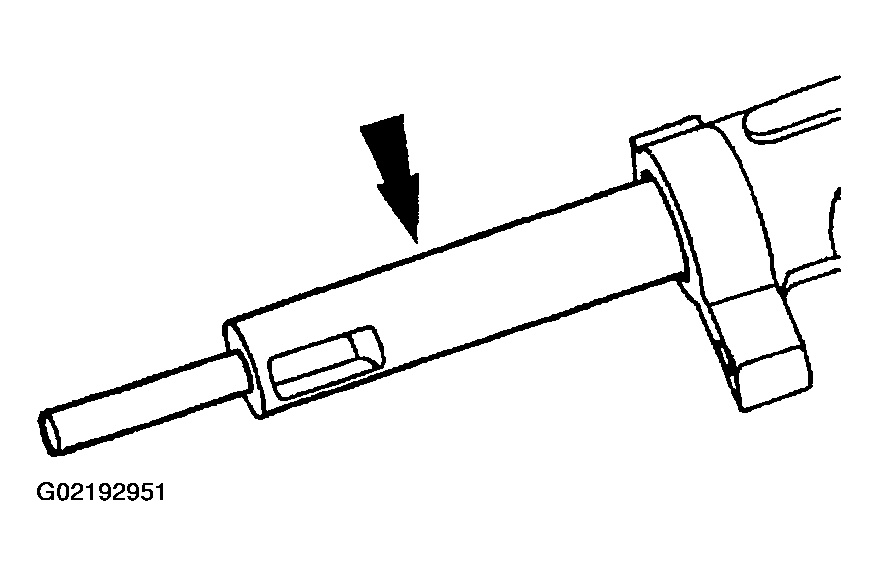

  Fig 6: Installing Gearshift Lever Socket Bushings (7335) On The Shift Tube
  Courtesy of FORD MOTOR CO.
Install the column shift selector lever plunger.
- Coat the column shift selector plunger with steering gear grease.

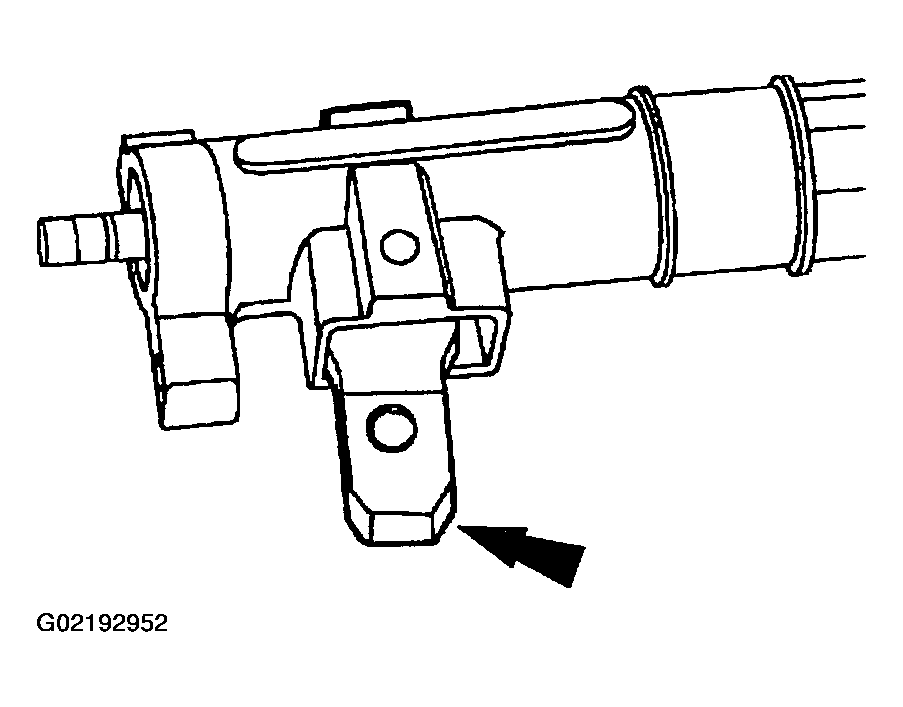

  Fig 7: Installing Column Shift Selector Lever Plunger
  Courtesy of FORD MOTOR CO.
Position the gearshift lever in the shift tube.

Fig 8: Positioning Gearshift Lever In Shift Tube
Courtesy of FORD MOTOR CO.

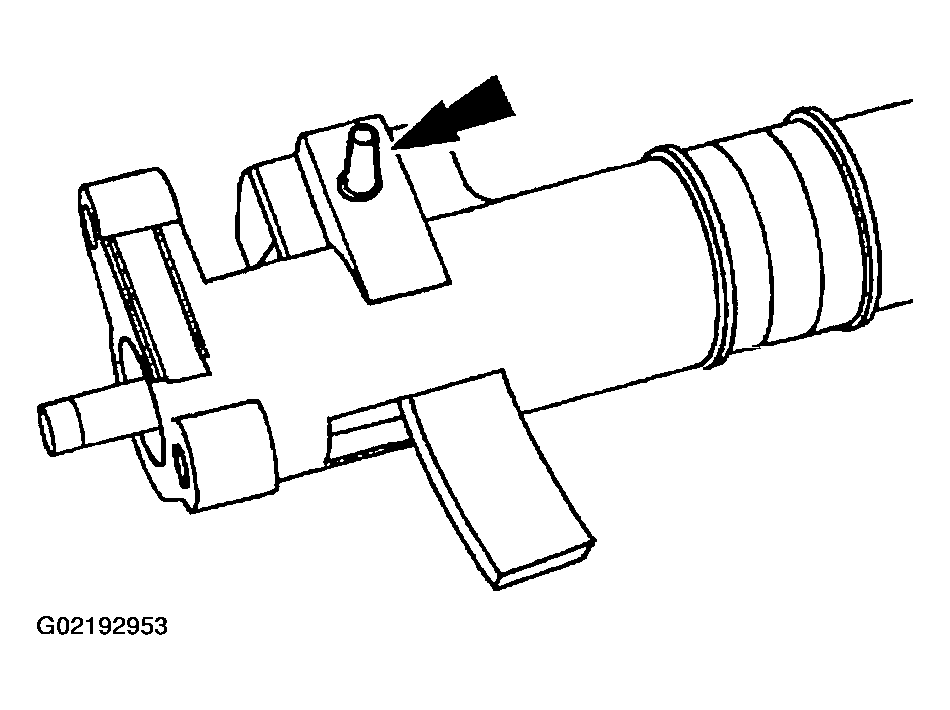

CAUTION: Gearshift lever pin must be installed correctly or 1st gear position may be blocked.

Fig 9: Installing Gearshift Lever Pin In Shift Tube

Courtesy of FORD MOTOR CO.

Install the gearshift lever pin in the shift tube.
Install the gearshift selector tube spring in the shift tube.
- Coat the end of the spring with steering gear grease.

  Fig 10: Installing Gearshift Selector Tube Spring In Shift Tube
  Courtesy of FORD MOTOR CO.
Install the transmission selector lever arm and support on the shift tube.
1. Position the transmission selector lever arm and support.
2. Install the bolts.

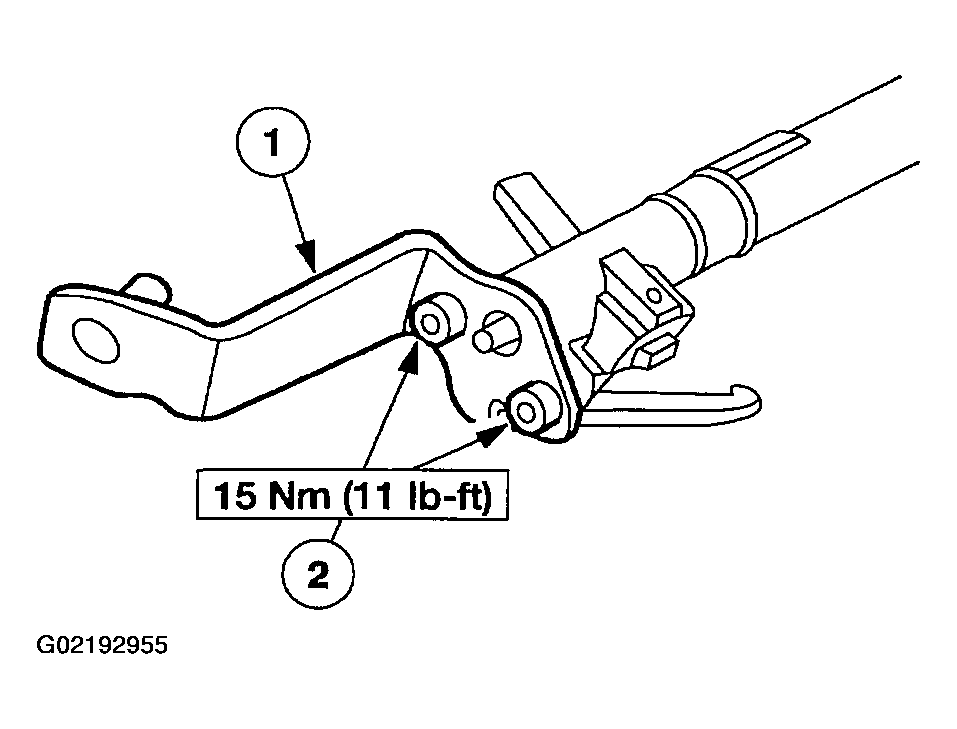

  Fig 11: Installing Transmission Selector Lever Arm Bolts
  Courtesy of FORD MOTOR CO.
Install the shift tube.
1. Position the shift tube.
2. Position the shift tube clamps.
3. Install the bolts.

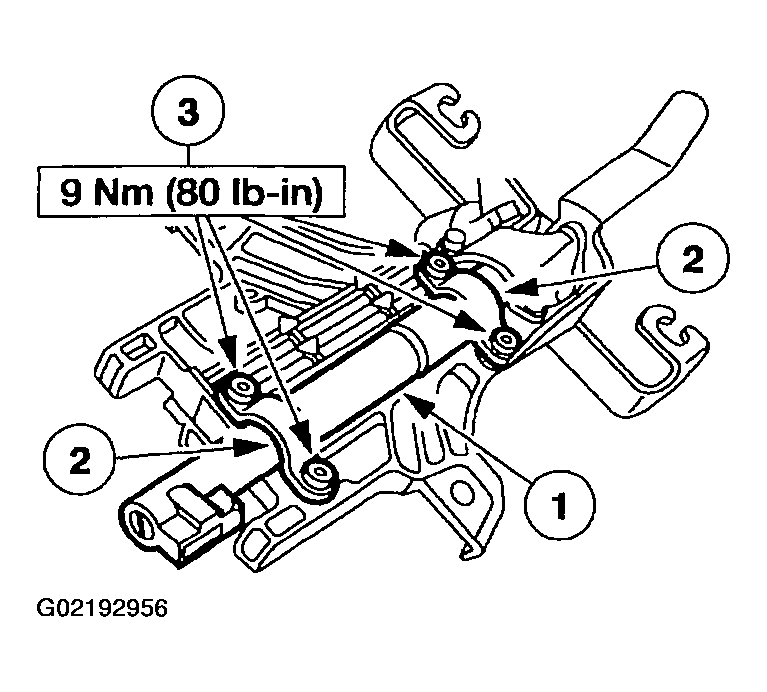

  Fig 12: Installing Shift Tube Bolts
  Courtesy of FORD MOTOR CO.

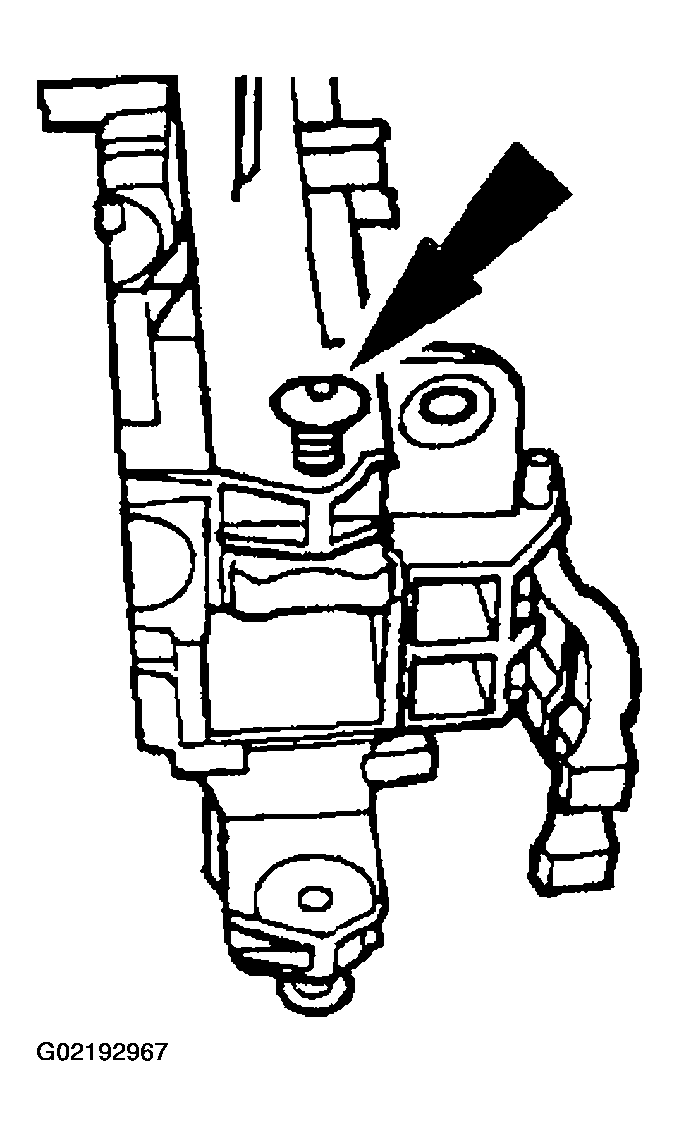

Position the brake shift interlock solenoid and install the bolts.

Fig 13: Installing Brake Shift Interlock Solenoid Bolts
Courtesy of FORD MOTOR CO.

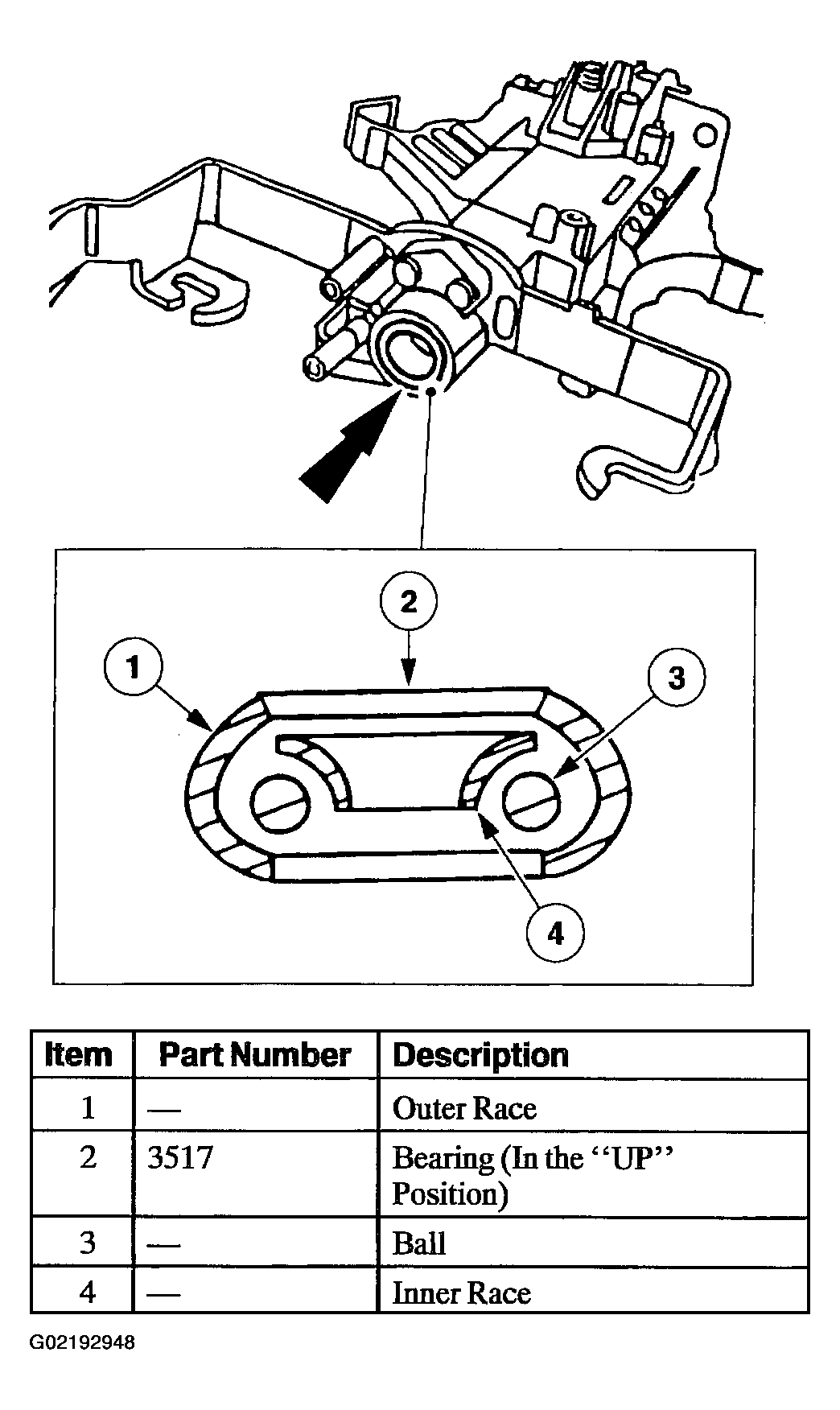

CAUTION: Install the upper steering column bearing so that the inner race is visible when installed.

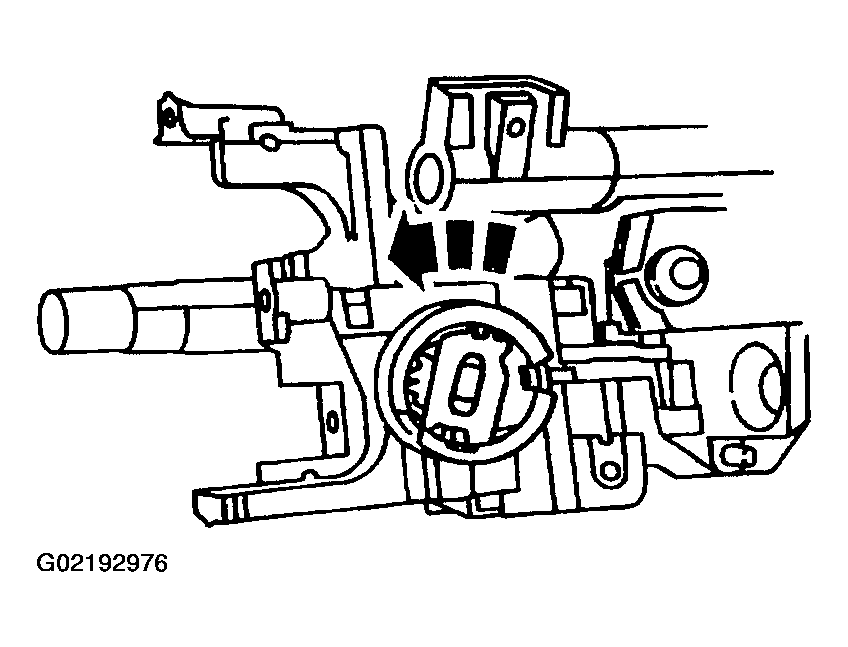

Fig 14: Identifying Upper Steering Column Bearing On Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

Fig 15: Installing Upper Steering Column Bearing On Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

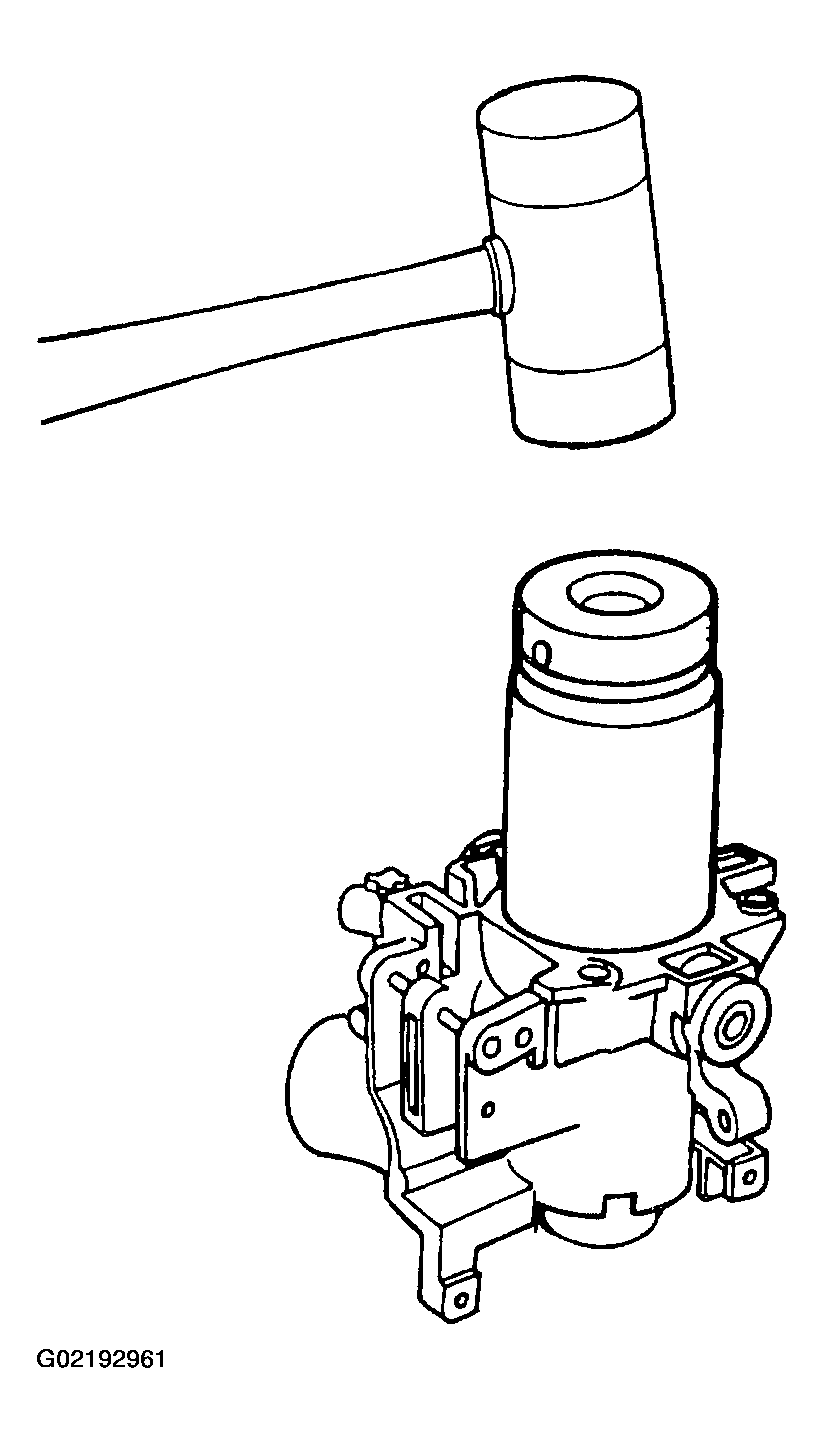

Using an appropriate bearing installer or socket; install the upper steering column bearing on the steering column lock cylinder housing.

CAUTION: Install the large steering column bearing so that the inner race is visible when installed.

NOTE: Use an appropriate bearing installer or socket.

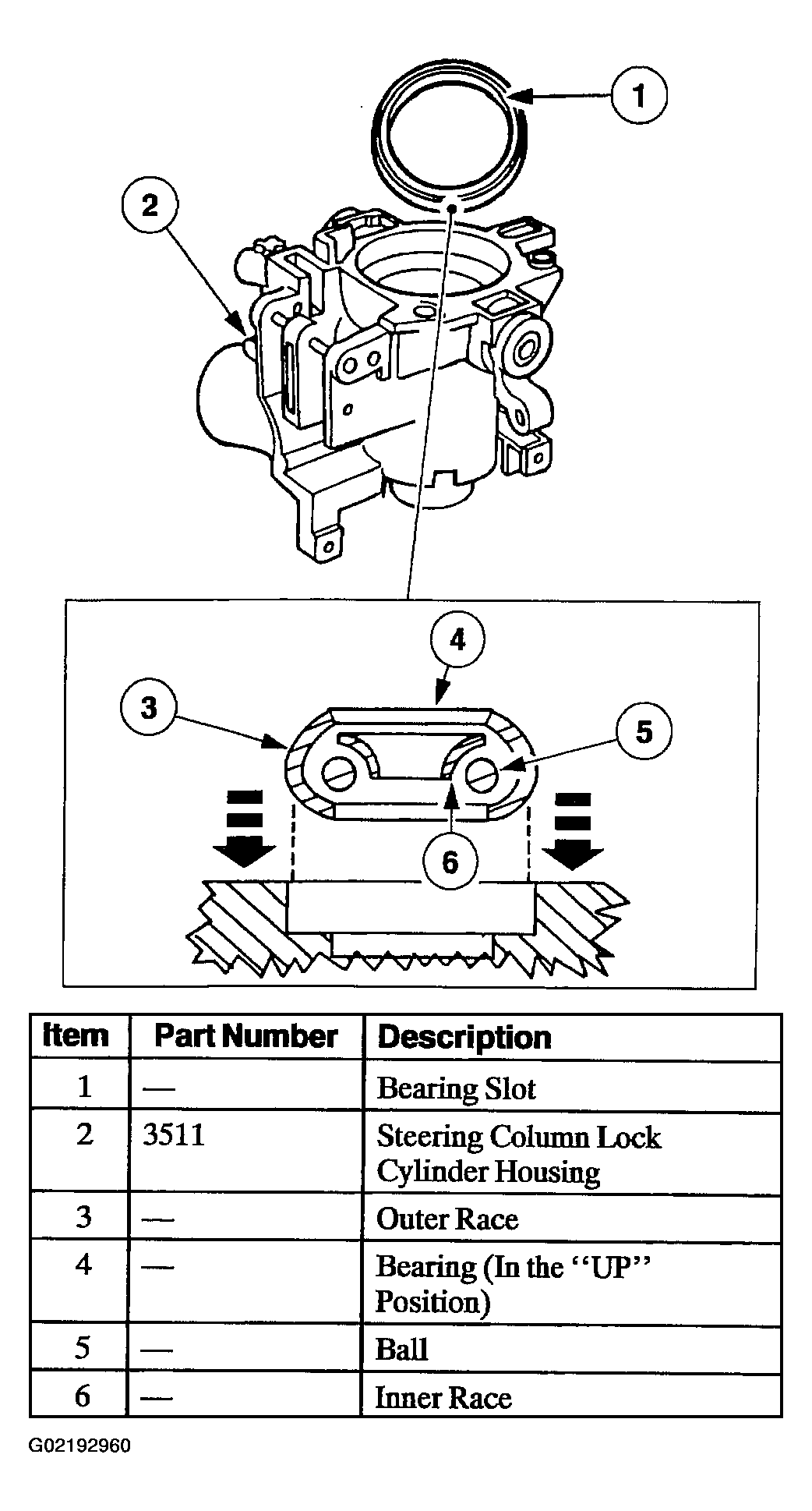

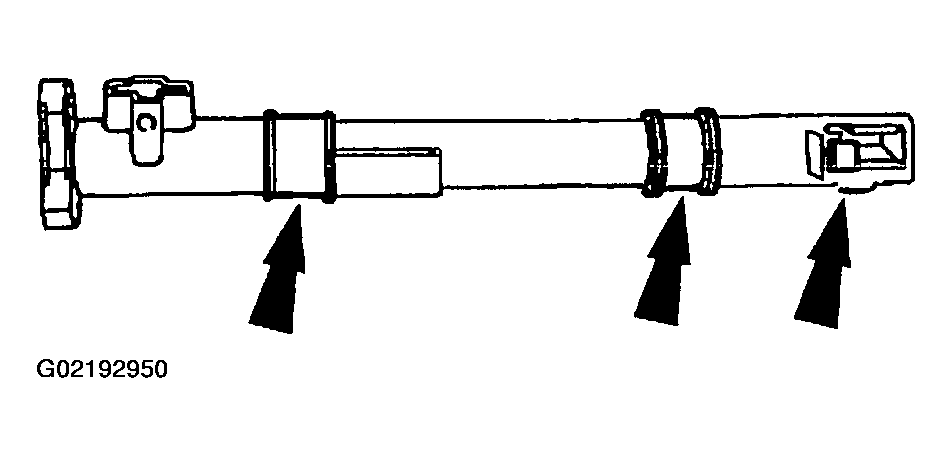

Fig 16: Identifying Large Steering Column Bearing Into Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

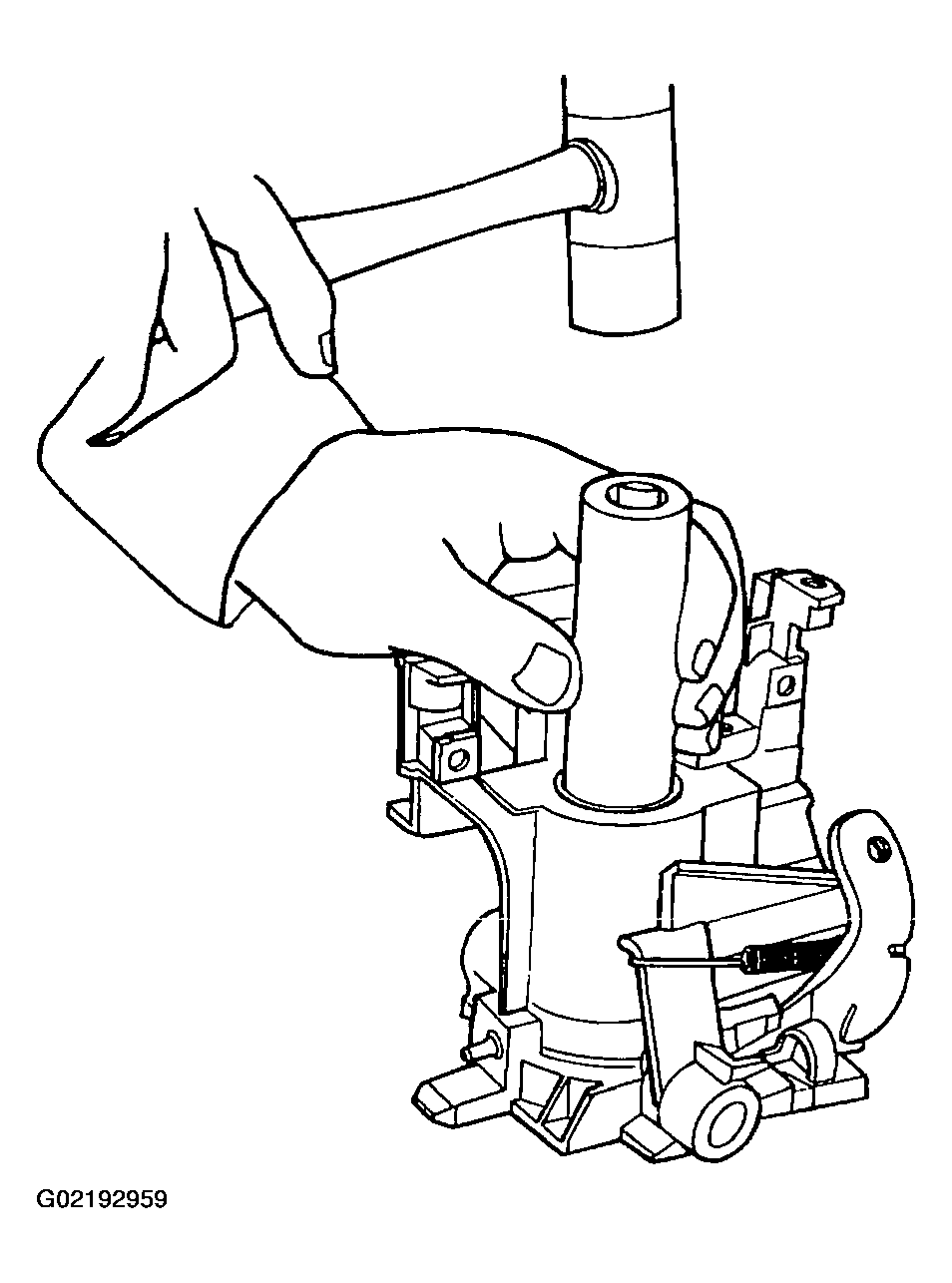

Fig 17: Installing Large Steering Column Bearing Into Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

On tilt steering columns, install the large steering column bearing into the steering column lock cylinder housing.
Position the steering column shaft in the steering column lock cylinder housing.

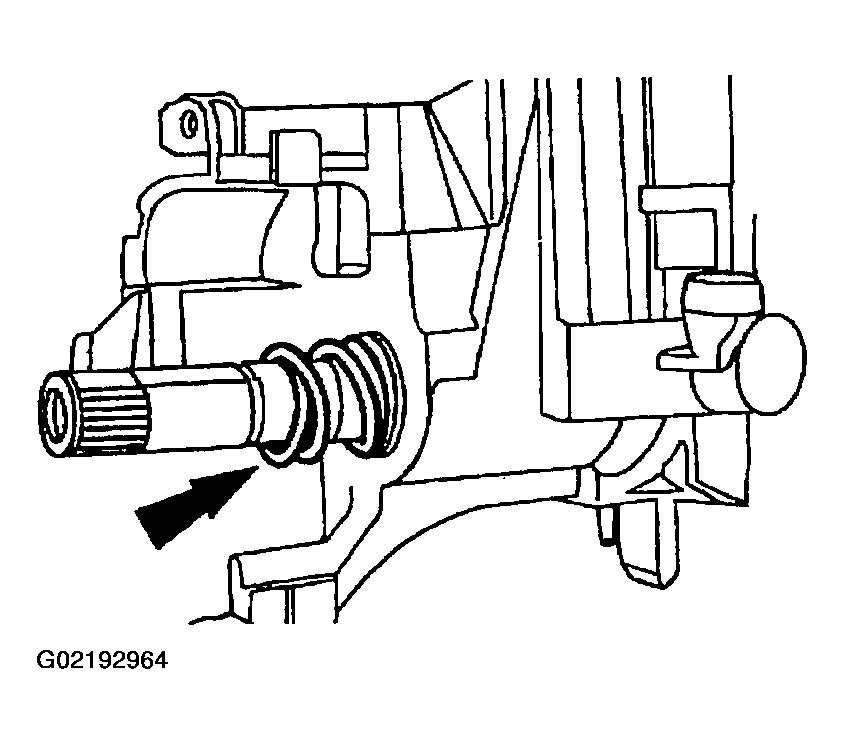

- Install the steering column bearing tolerance ring on the steering column shaft.

  Fig 18: Installing Steering Column Bearing Tolerance Ring On Steering Column Shaft
  Courtesy of FORD MOTOR CO.
Install the steering column bearing sleeve.

Fig 19: Installing Steering Column Bearing Sleeve
Courtesy of FORD MOTOR CO.

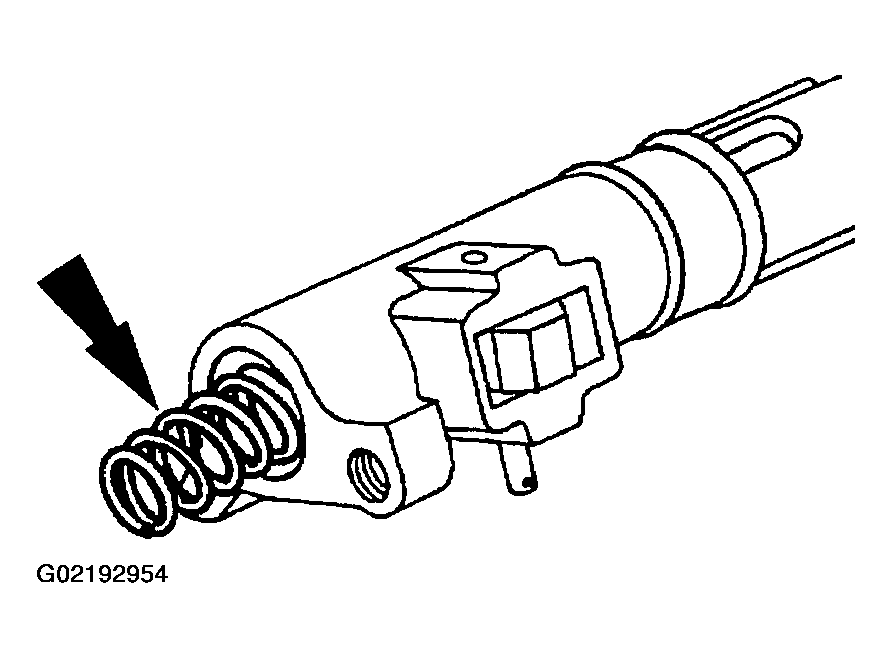

Install the steering column bearing spring (3C674).

Fig 20: Installing Steering Column Bearing Spring (3C674)
Courtesy of FORD MOTOR CO.

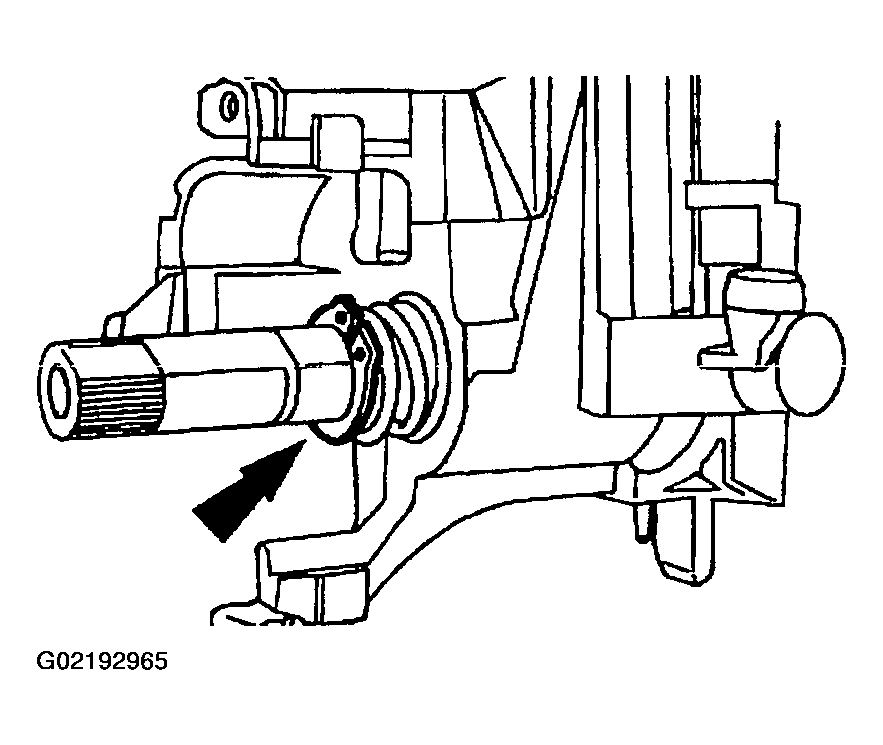

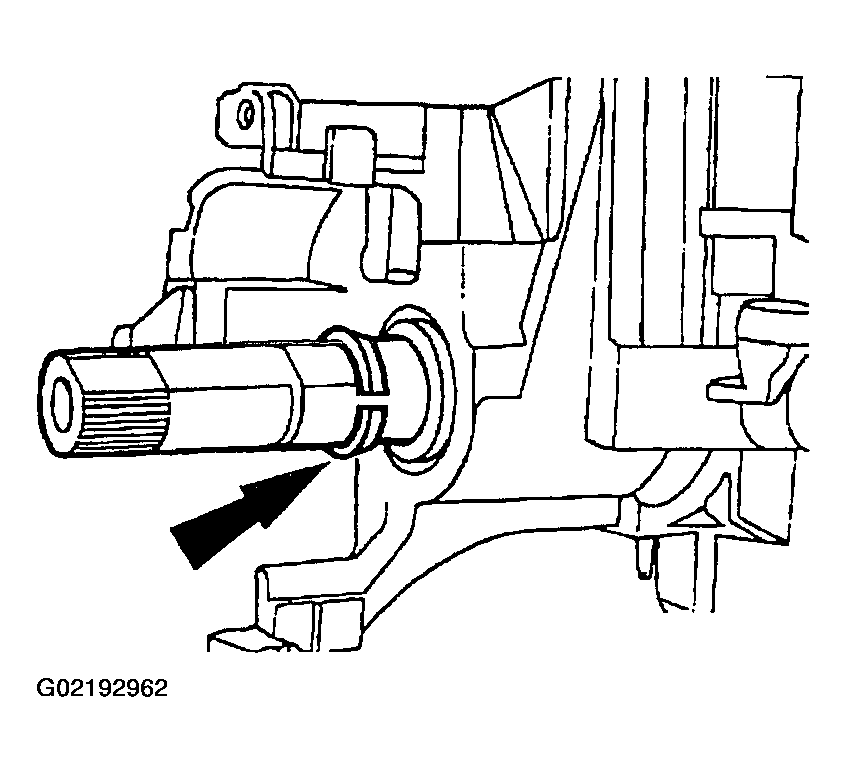

Install the snap ring.

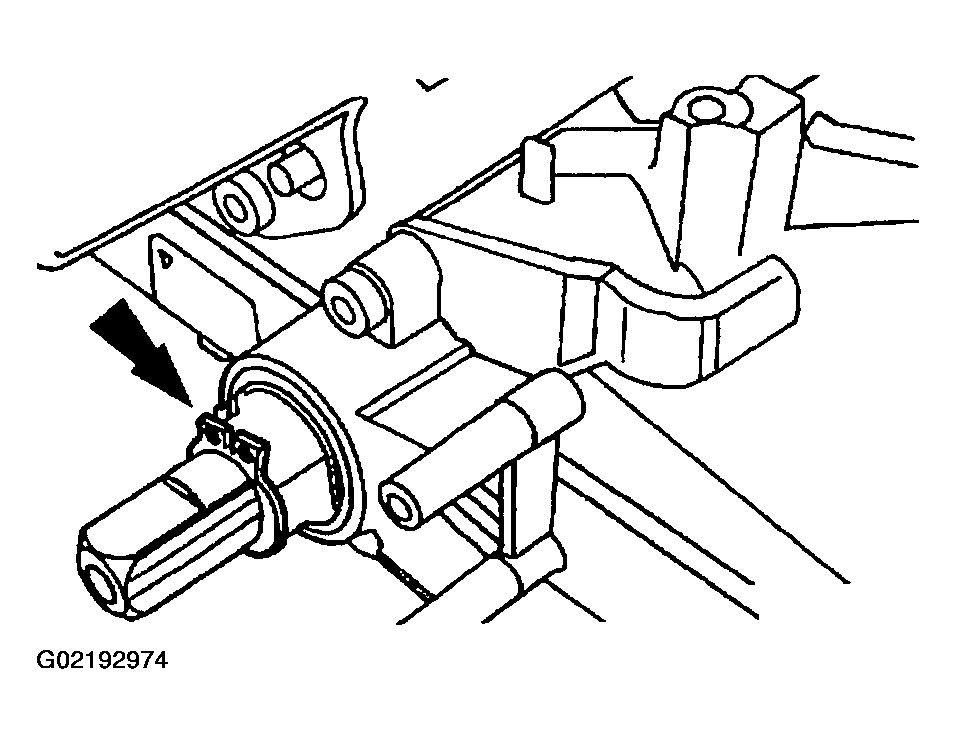

Fig 21: Installing Snap Ring
Courtesy of FORD MOTOR CO.
Install the turn signal cancel cam.

Fig 22: Installing Turn Signal Cancel Cam
Courtesy of FORD MOTOR CO.
Install the lock cylinder housing screws loosely and position the steering actuator housing in a vise.

Fig 23: Installing Lock Cylinder Housing Screws Loosely
Courtesy of FORD MOTOR CO.

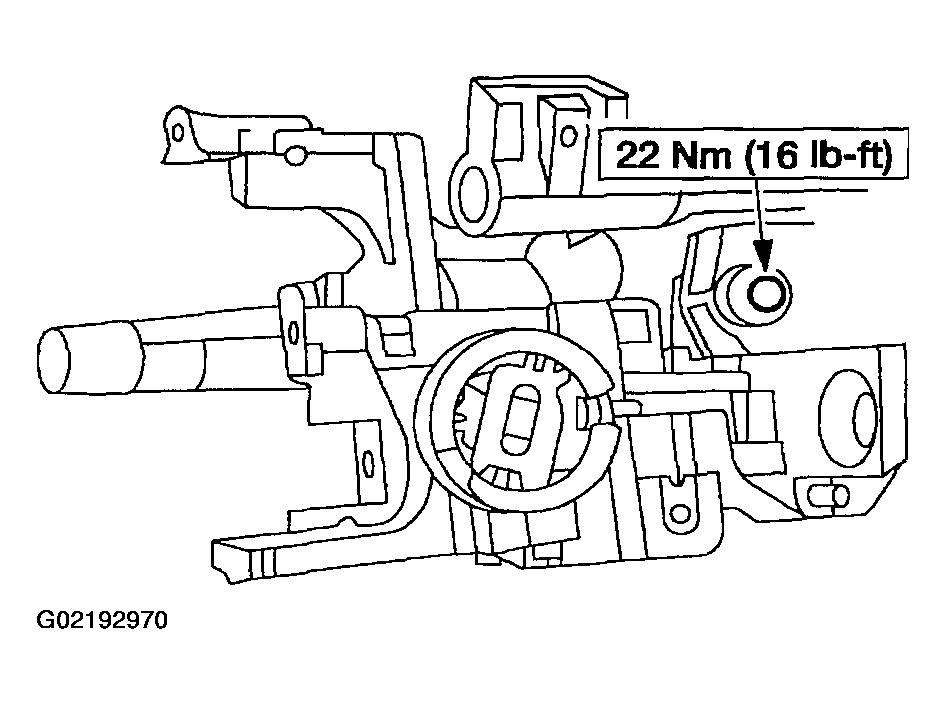

Fig 24: Positioning Steering Column Lock Cylinder Housing And Steering Column Shaft On The Steering Actuator Housing
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the lock cylinder housing bushings with rust penetrant.

Position the steering column lock cylinder housing and the steering column shaft on the steering actuator housing.
- Make sure the upper and lower steering column lock actuators are aligned.
Position the steering column locking levers on the steering actuator housing.
1. Use a shop fabricated tool.
2. On tilt steering columns, install and compress the steering column position spring.

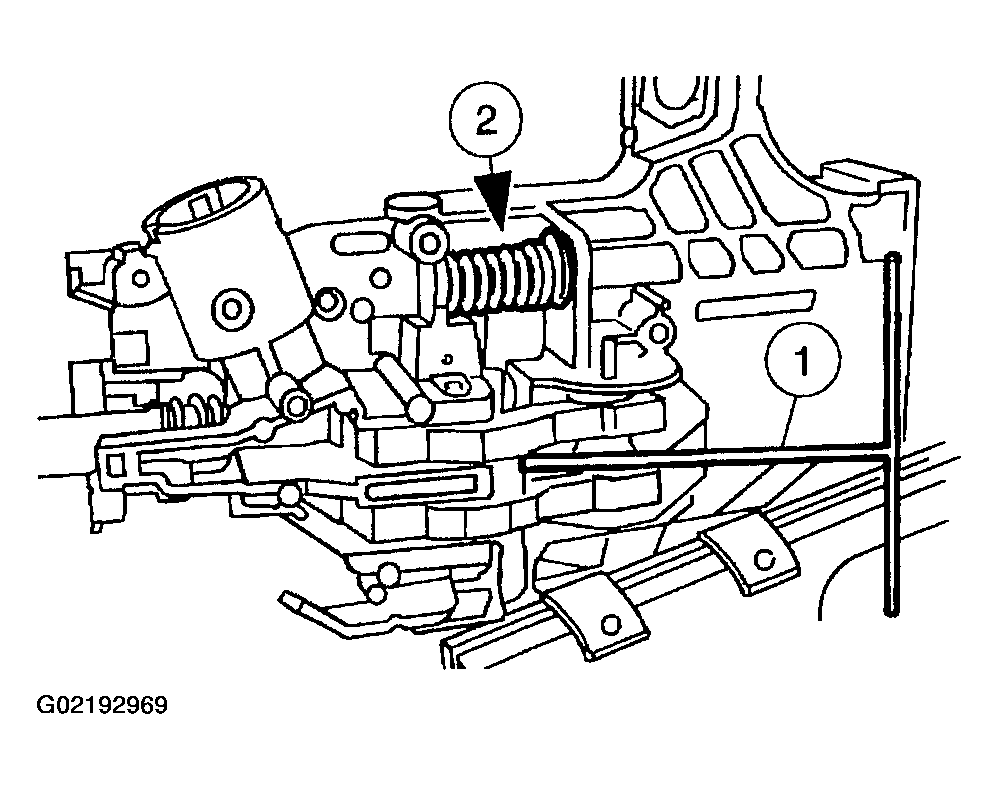

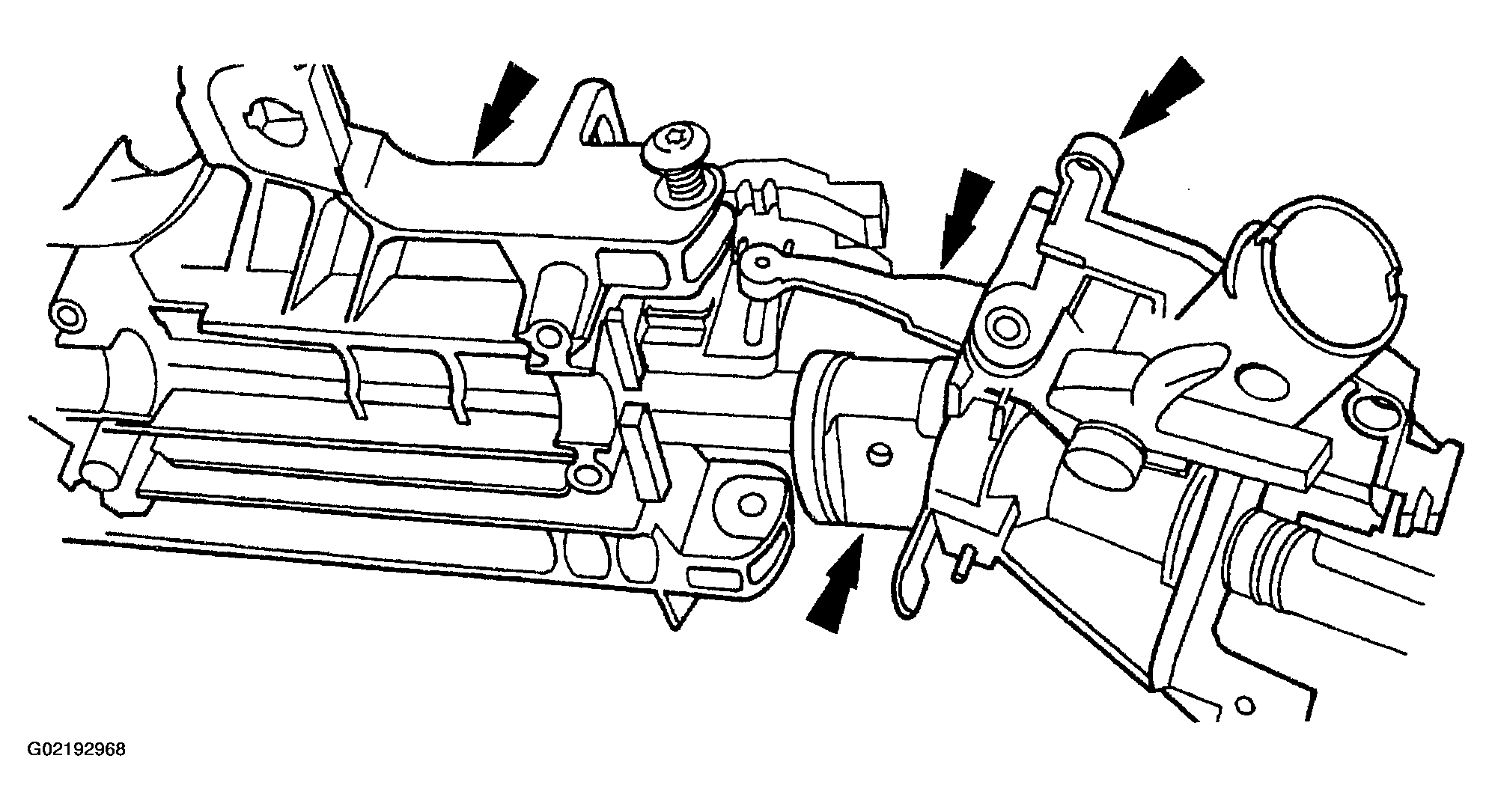

  Fig 25: Positioning Steering Column Locking Levers On Steering Actuator Housing
  Courtesy of FORD MOTOR CO.
Position the lock cylinder housing and steering actuator housing, and tighten the lock cylinder housing screws.

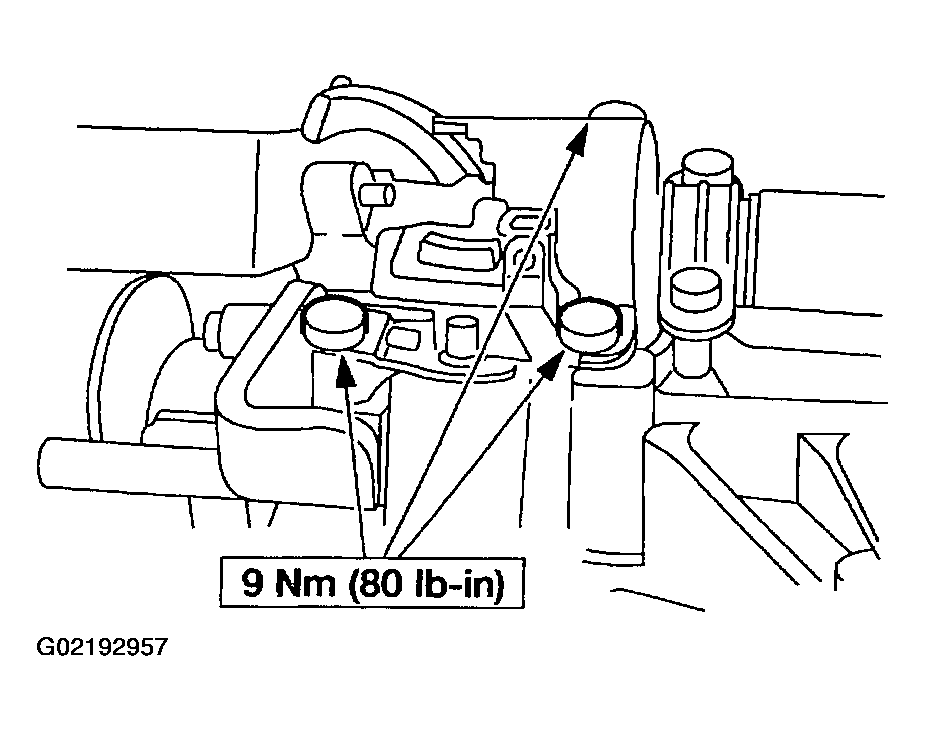

Fig 26: Tightening Lock Cylinder Housing Screw
Courtesy of FORD MOTOR CO.

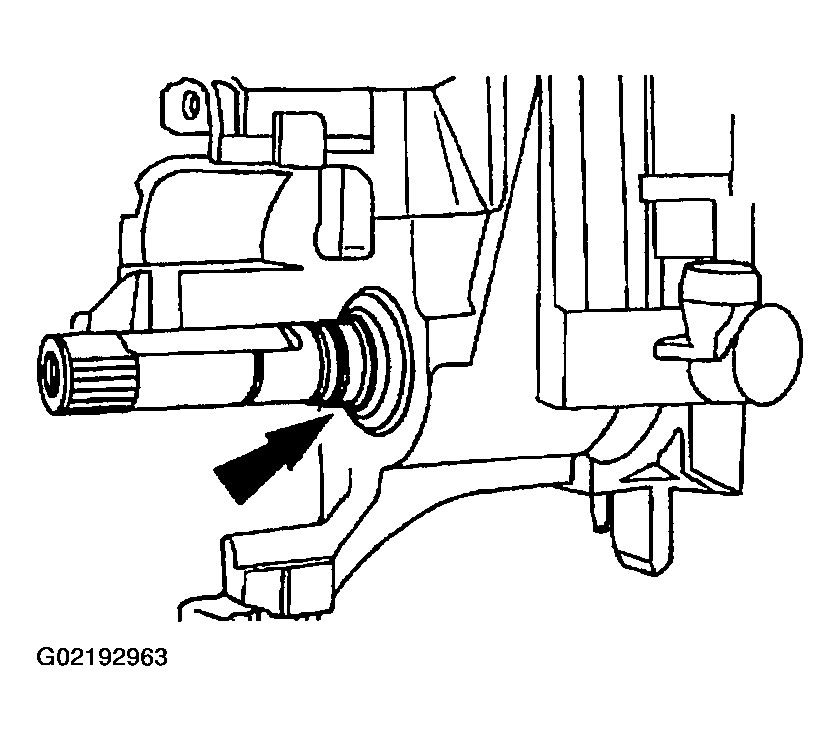

Install the steering column bearing tolerance ring.

Fig 27: Installing Steering Column Bearing Tolerance Ring
Courtesy of FORD MOTOR CO.
On tilt steering column equipped vehicles, install the sensor ring.
1. Install the sensor ring.
2. Install the steering column bearing spring.

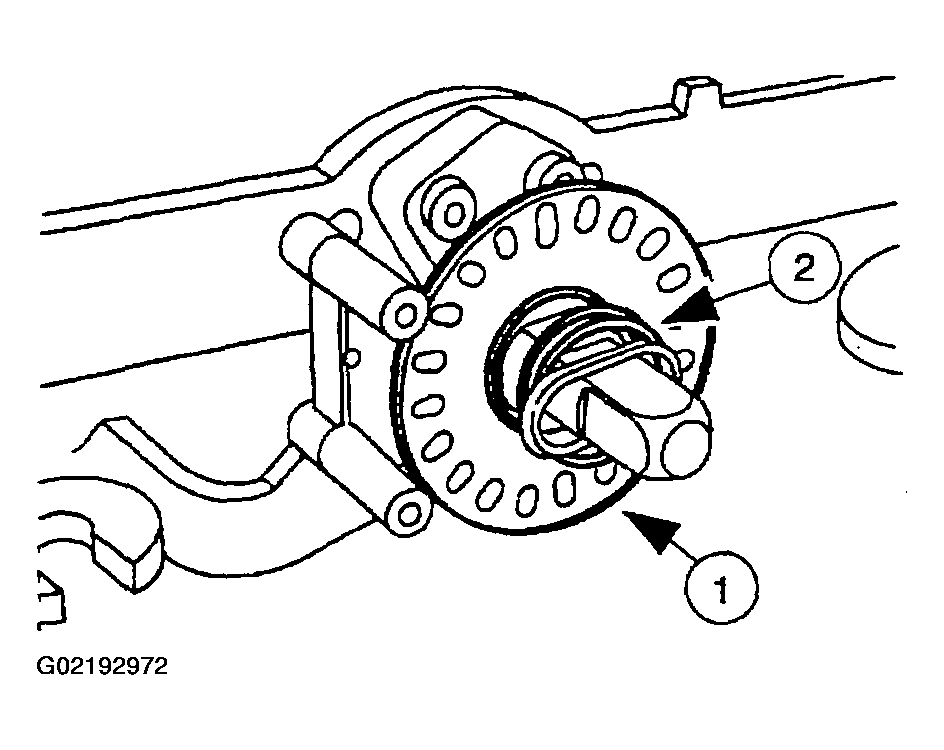

  Fig 28: Installing Steering Column Bearing Spring
  Courtesy of FORD MOTOR CO.
Install the shock absorber electronic steering sensor.
1. Position the shock absorber electronic steering sensor.
2. Install the screws.
3. Connect the electrical connector.

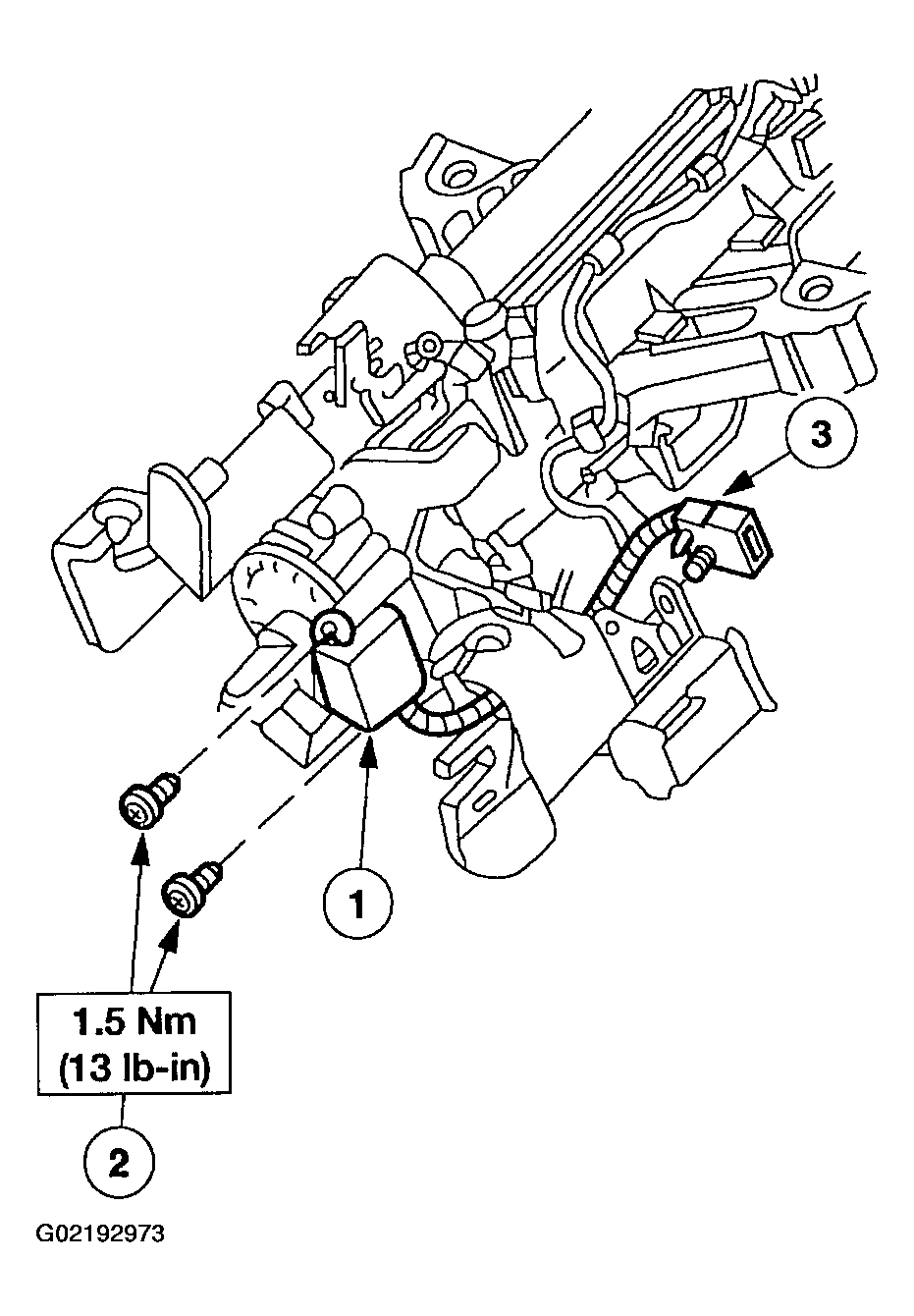

  Fig 29: Installing Shock Absorber Electronic Steering Sensor Screws
  Courtesy of FORD MOTOR CO.
On fixed steering column equipped vehicles, install the snap ring.

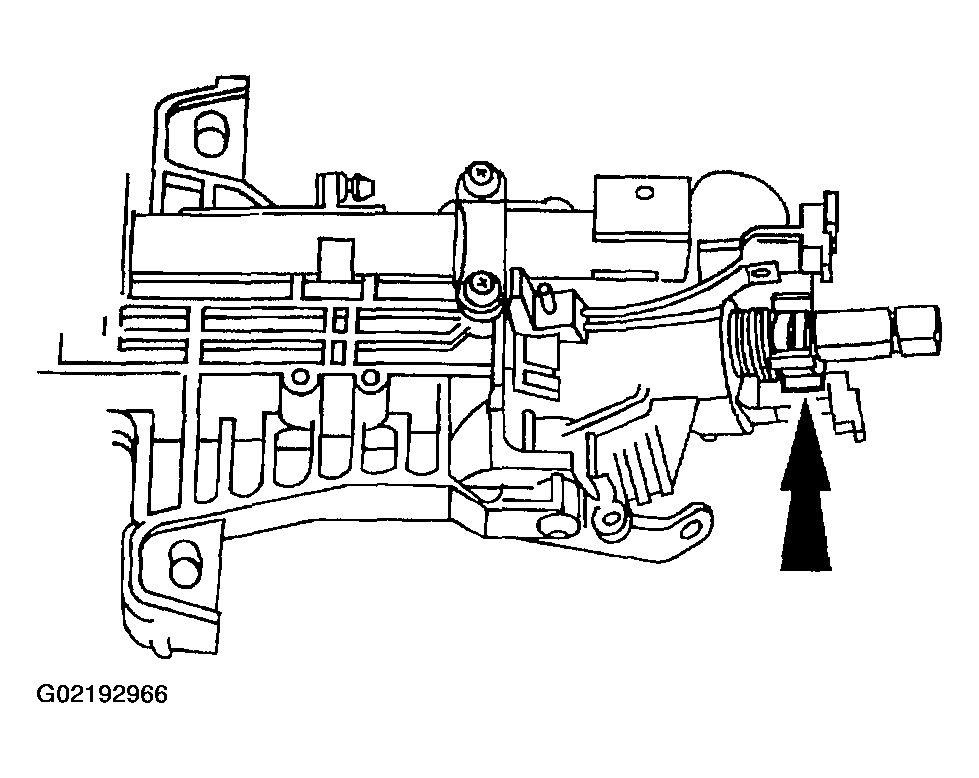

Fig 30: Installing Snap Ring
Courtesy of FORD MOTOR CO.

NOTE: The narrow section of the keyhole in the lock gear must be in the 1 o'clock position.

Install the steering column lock gear.
- Use ignition lock grease to coat the steering column lock gear.

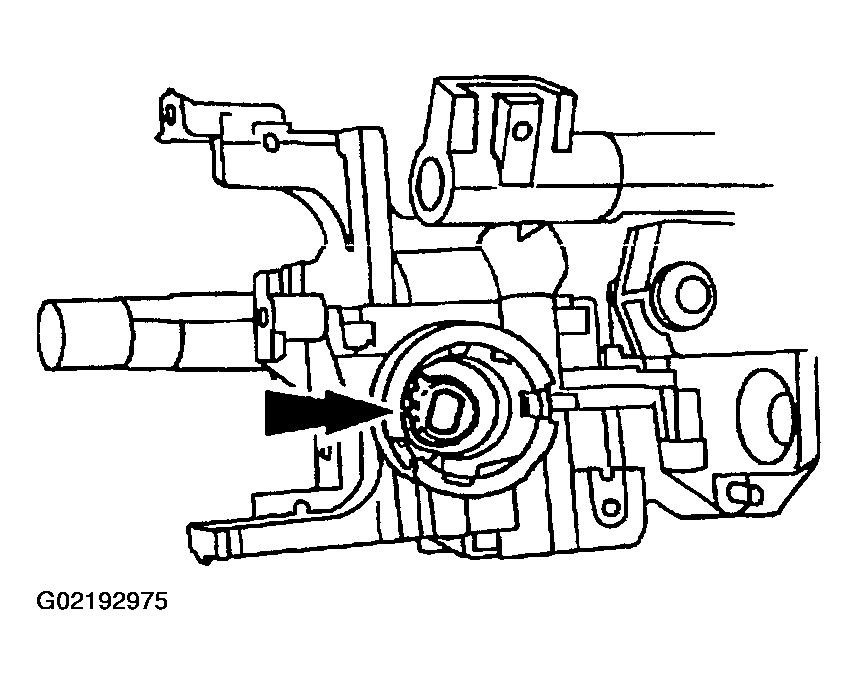

  Fig 31: Installing Steering Column Lock Gear
  Courtesy of FORD MOTOR CO.
Install the steering column lock housing bearing.
- The narrow section of the keyhole should be in the 1 o'clock position, with the tab inboard at the 3 o'clock position and rotate it counterclockwise.
- Lubricate the steering column lock housing bearing with ignition lock grease.

  Fig 32: Rotating Keyhole Narrow Section Counterclockwise
  Courtesy of FORD MOTOR CO.
Install the steering column upper bearing retainer firmly to engage the four retention tabs into the lock housing.

Fig 33: Installing Steering Column Upper Bearing Retainer
Courtesy of FORD MOTOR CO.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the steering column removal and installation procedure.

Install the steering column; Refer to COLUMN .
