Shock Absorber: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

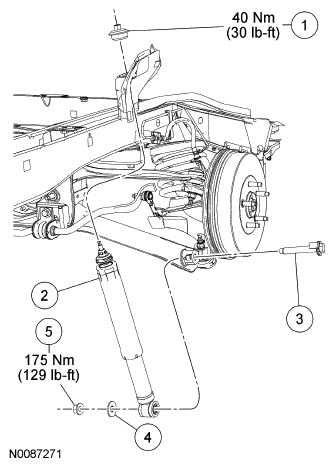

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
18A192 |
Upper shock absorber nut and bushing assembly |
| 2 |
18080 |
Shock absorber |
| 3 |
W706874 |
Shock absorber lower bolt |
| 4 |
W710426 |
Washer |
| 5 |
W520517 |
Shock absorber lower nut |
