Power Steering Fluid Cooler: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

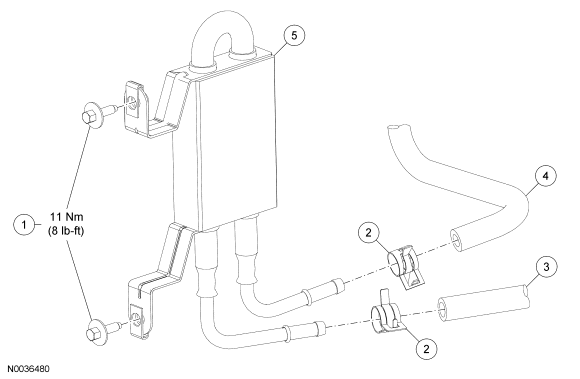

| Item | Part Number | Description |
|---|---|---|
| 1 | N606676 | Power steering fluid cooler bolts (2 required) |
| 2 | 3C750 | Clamps (2 required) |
| 3 | 3A713 | Return hose |
| 4 | 3A713 | Power steering fluid cooler-to-reservoir hose |
| 5 | 3D746 | Power steering fluid cooler |
