Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . RCM is located on center tunnel, under instrument panel. Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
Remove push pins and lower center instrument panel finish panel. Disengage RCM electrical connector locking clip and disconnect electrical connector. Remove RCM bracket retaining bolts. Remove RCM with bracket from vehicle.

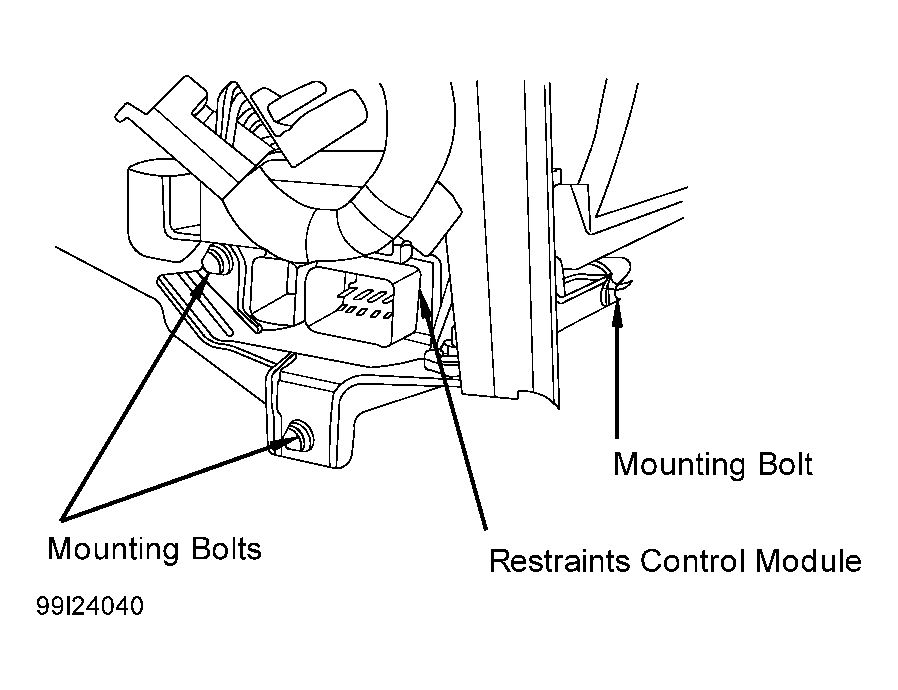

Fig 1: Identifying Restraints Control Module (RCM)

Courtesy of FORD MOTOR CO.
