Low-Reverse One-Way Clutch Hub: Disassembly

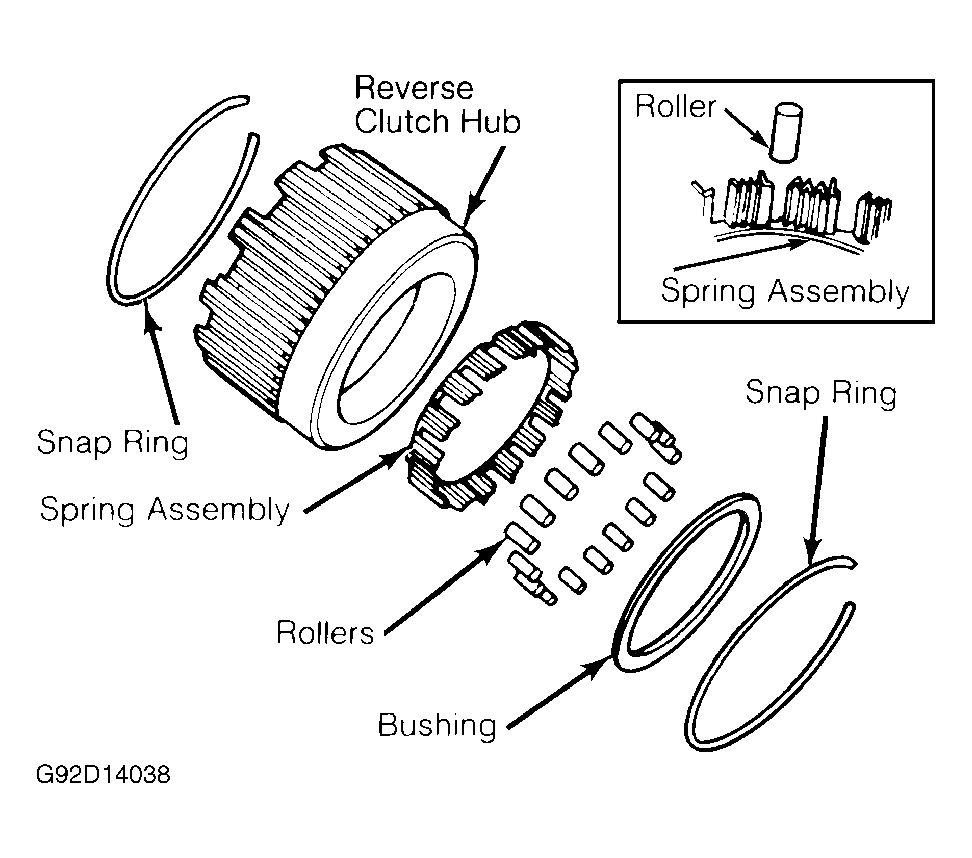

Remove snap ring and bushing from rear of low-reverse clutch hub. Remove rollers from spring assembly. Lift spring assembly from hub. Remove snap ring from hub. See Figure.
