Shift Speed Specifications (Mph)

NOTE: Shift speeds are approximate. All shift speeds may vary somewhat due to production tolerances, rear axle ratios or emission control equipment. Ensure all tires are factory recommended sizes.

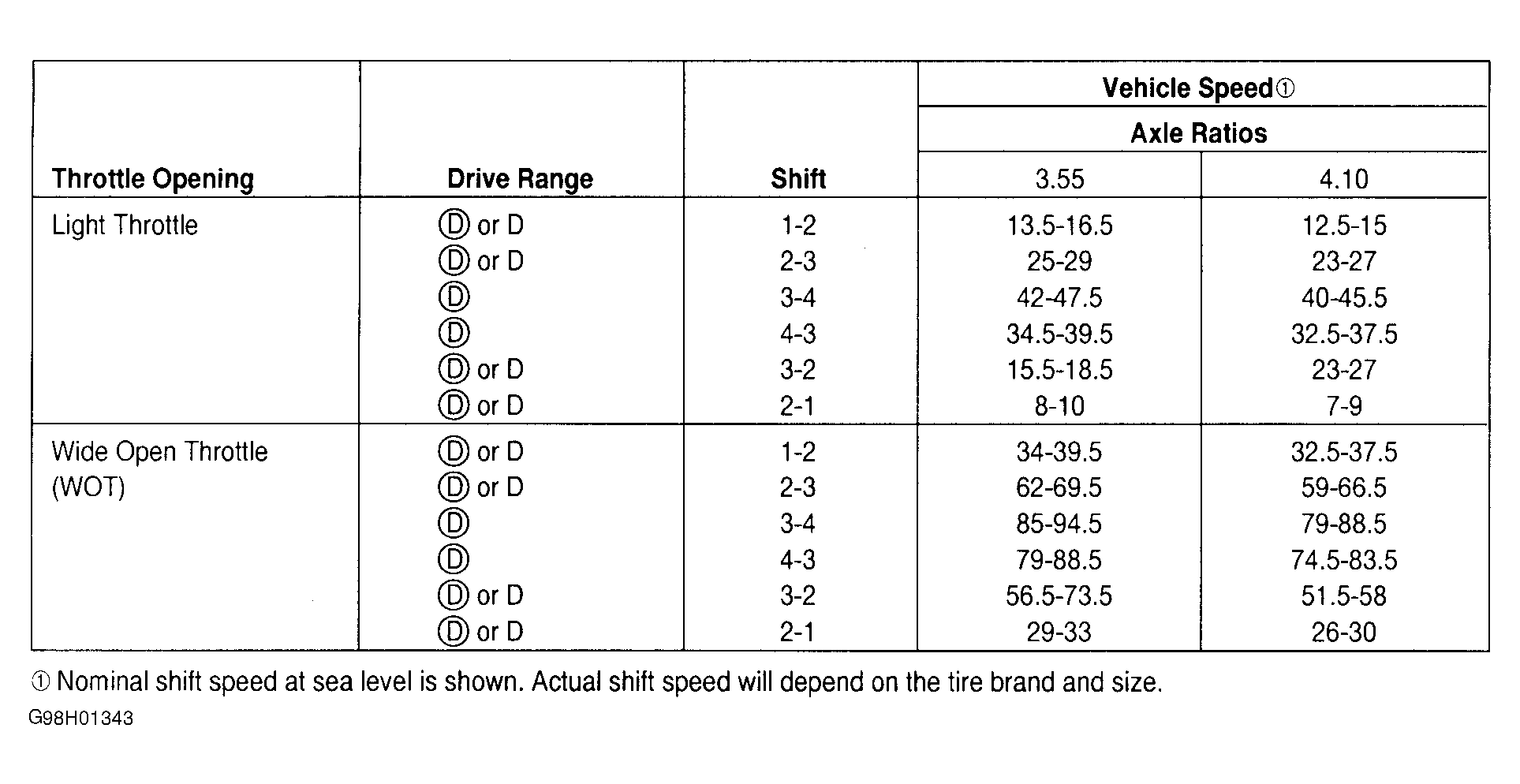

Fig 1: 5.4L F150/250 Under 8500 GVW

Courtesy of FORD MOTOR CO.

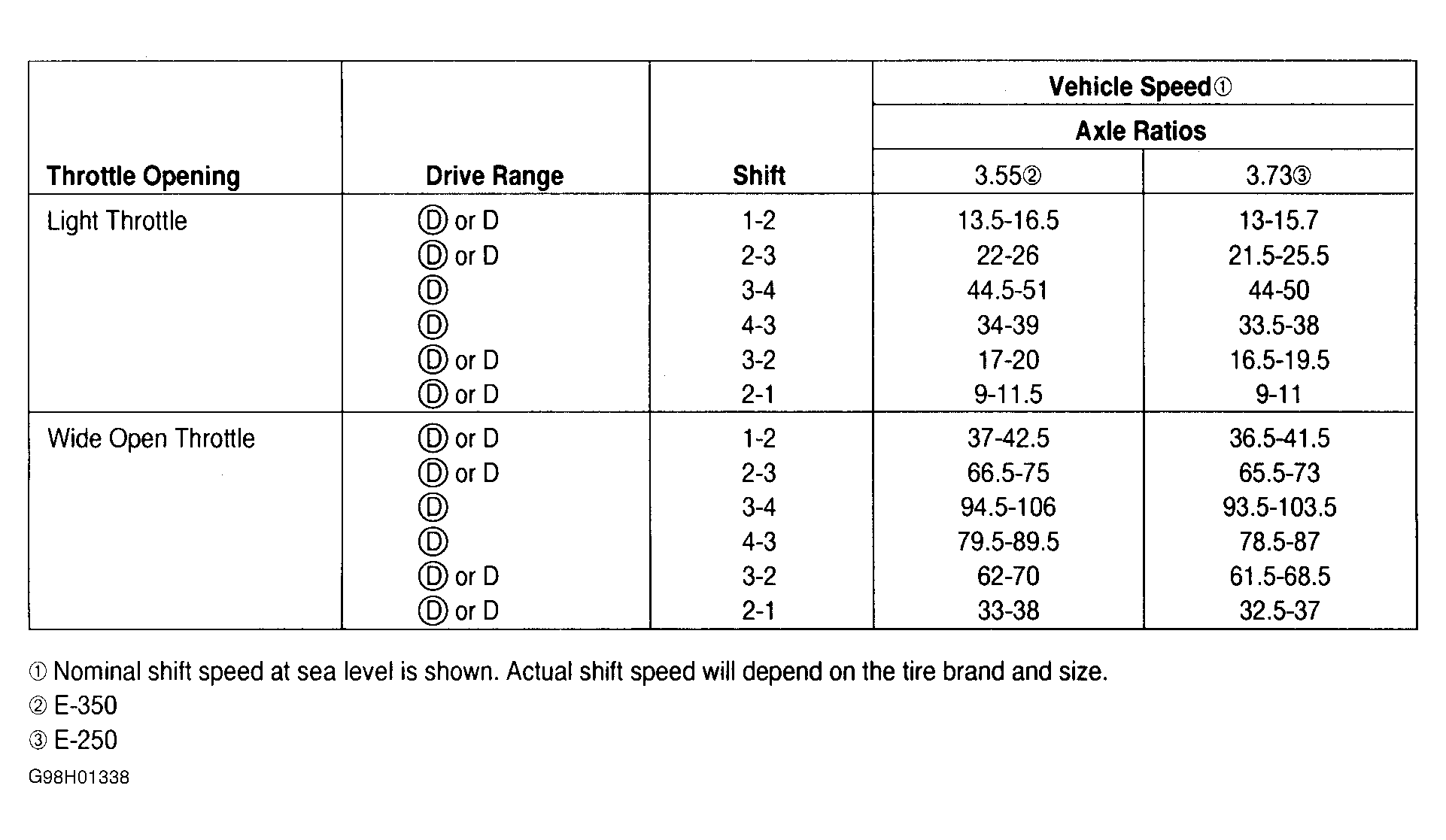

Fig 2: 5.4L E150/250/350 Under 8500 GVW

Courtesy of FORD MOTOR CO.

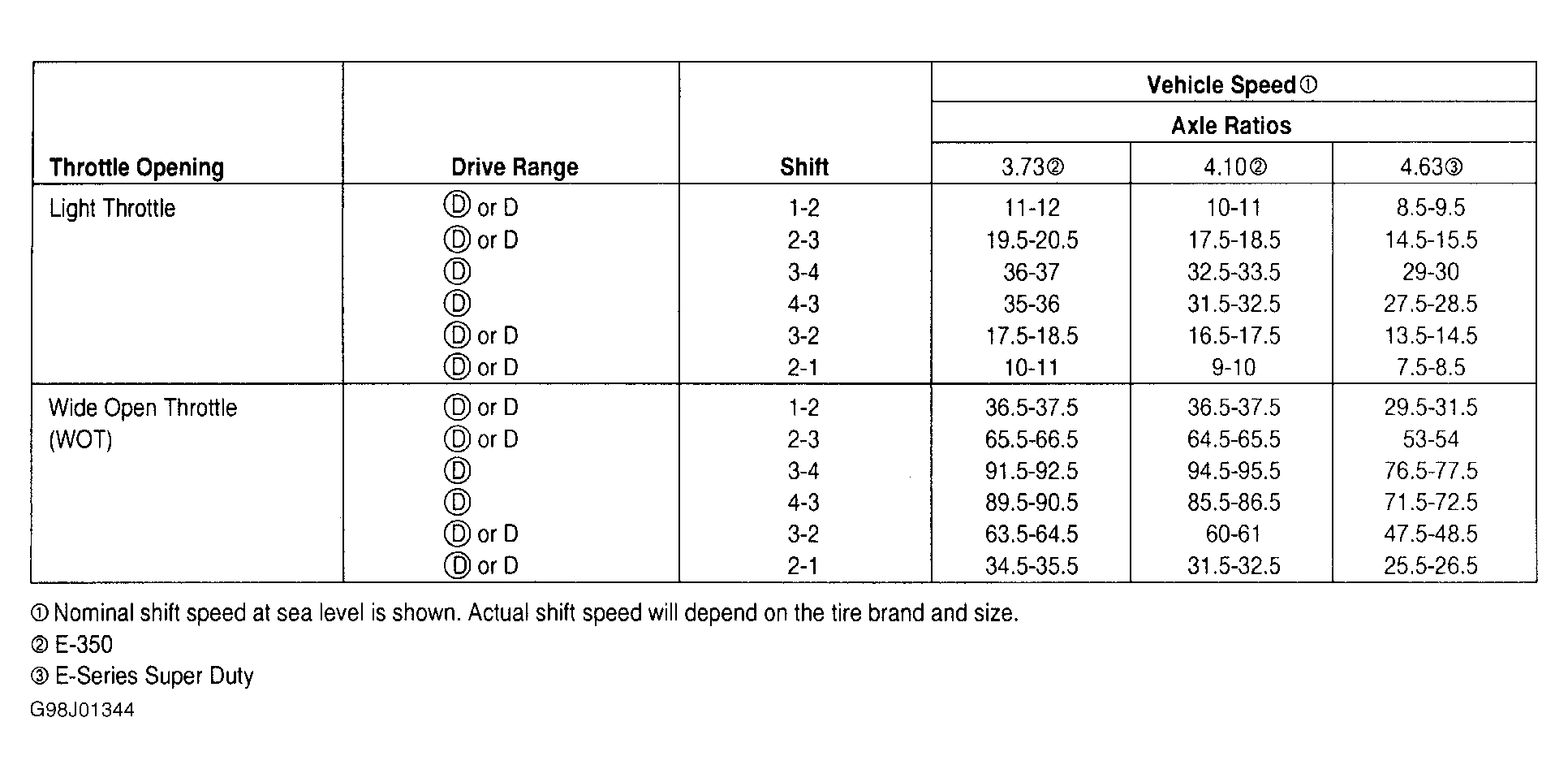

Fig 3: 5.4L 2V Expedition & Navigator

Courtesy of FORD MOTOR CO.

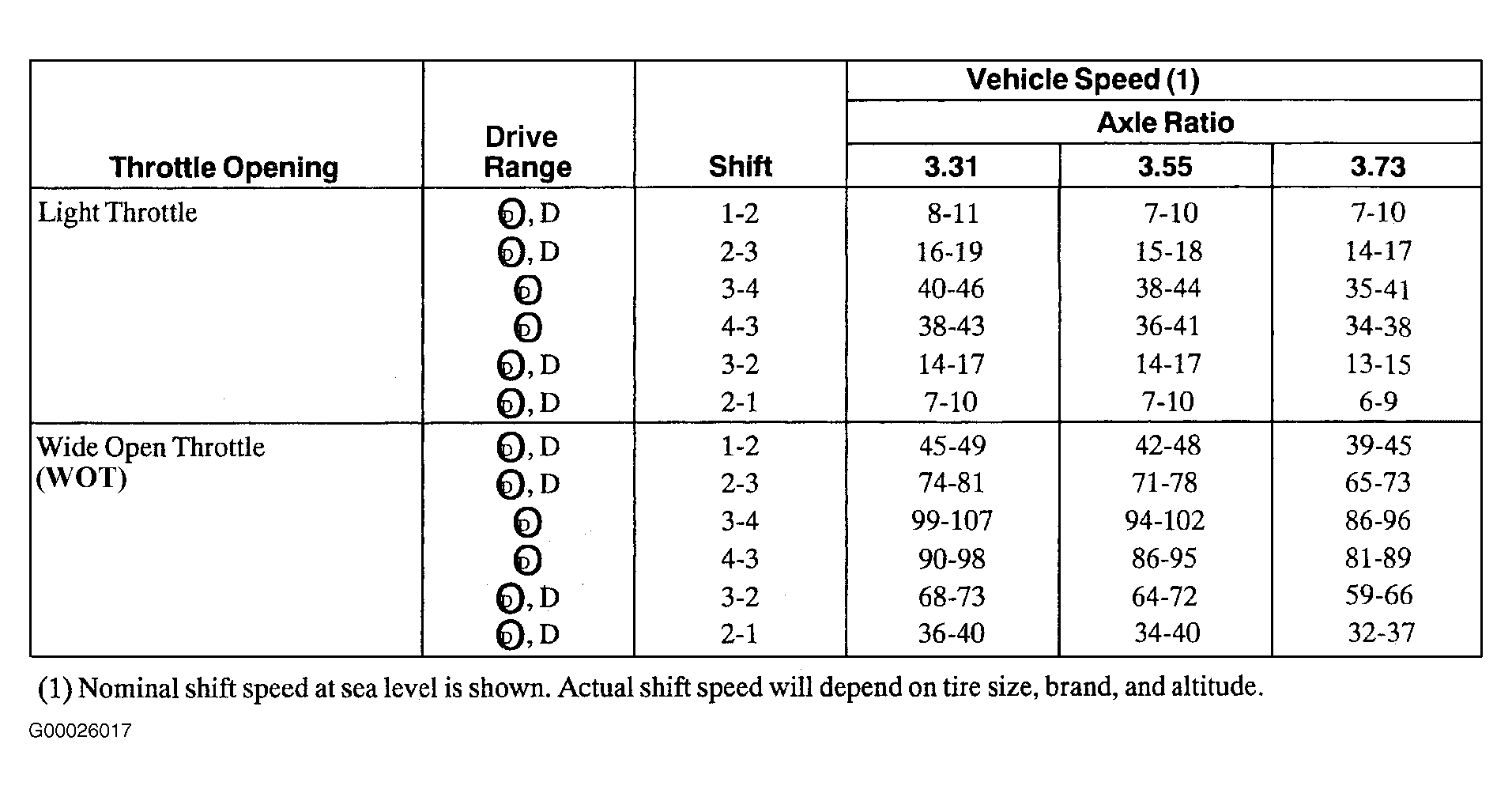

Fig 4: 5.4L 4V Expedition & Navigator

Courtesy of FORD MOTOR CO.

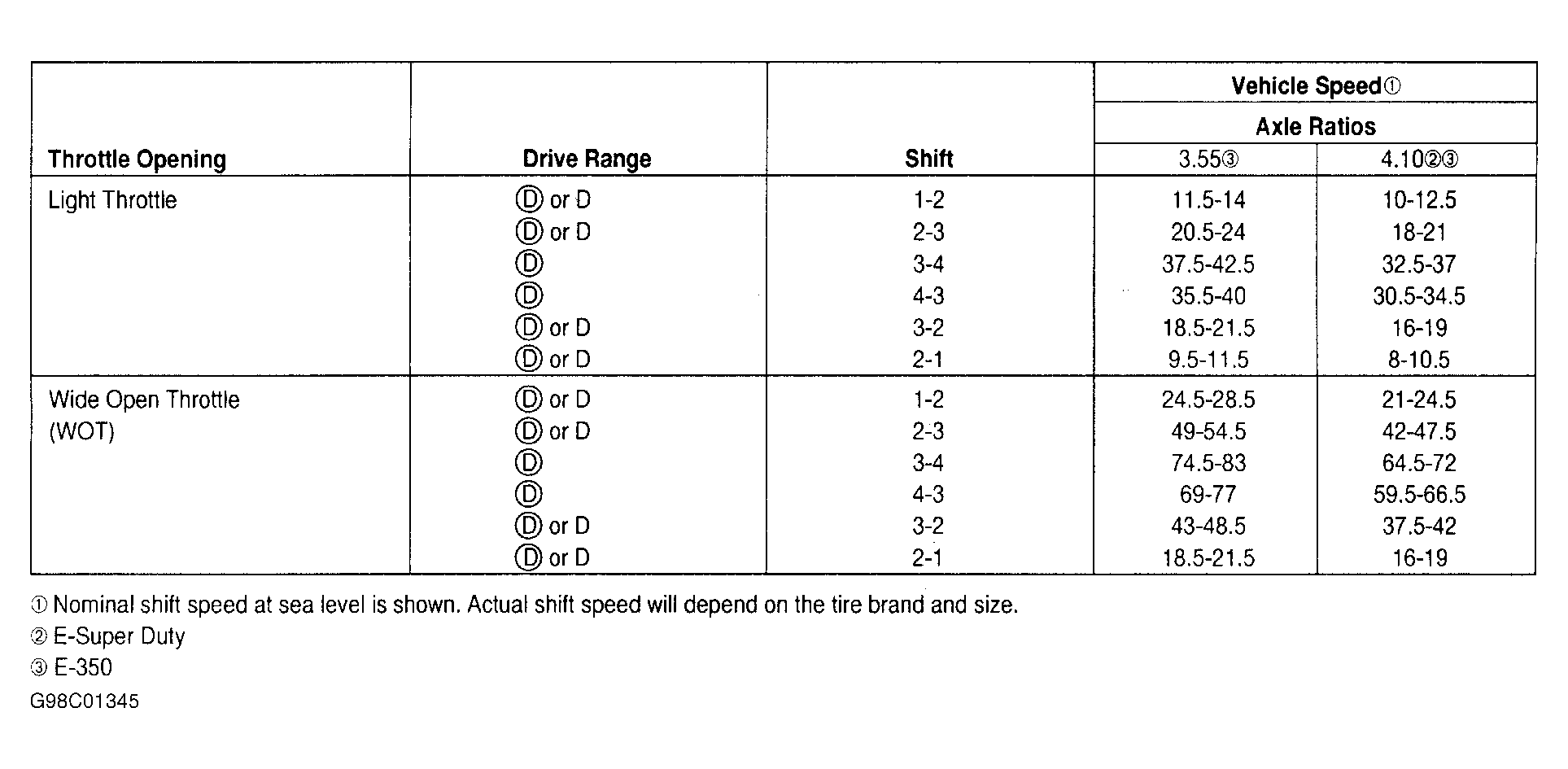

Fig 5: 5.4L F250/350 Over 8500 GVW

Courtesy of FORD MOTOR CO.

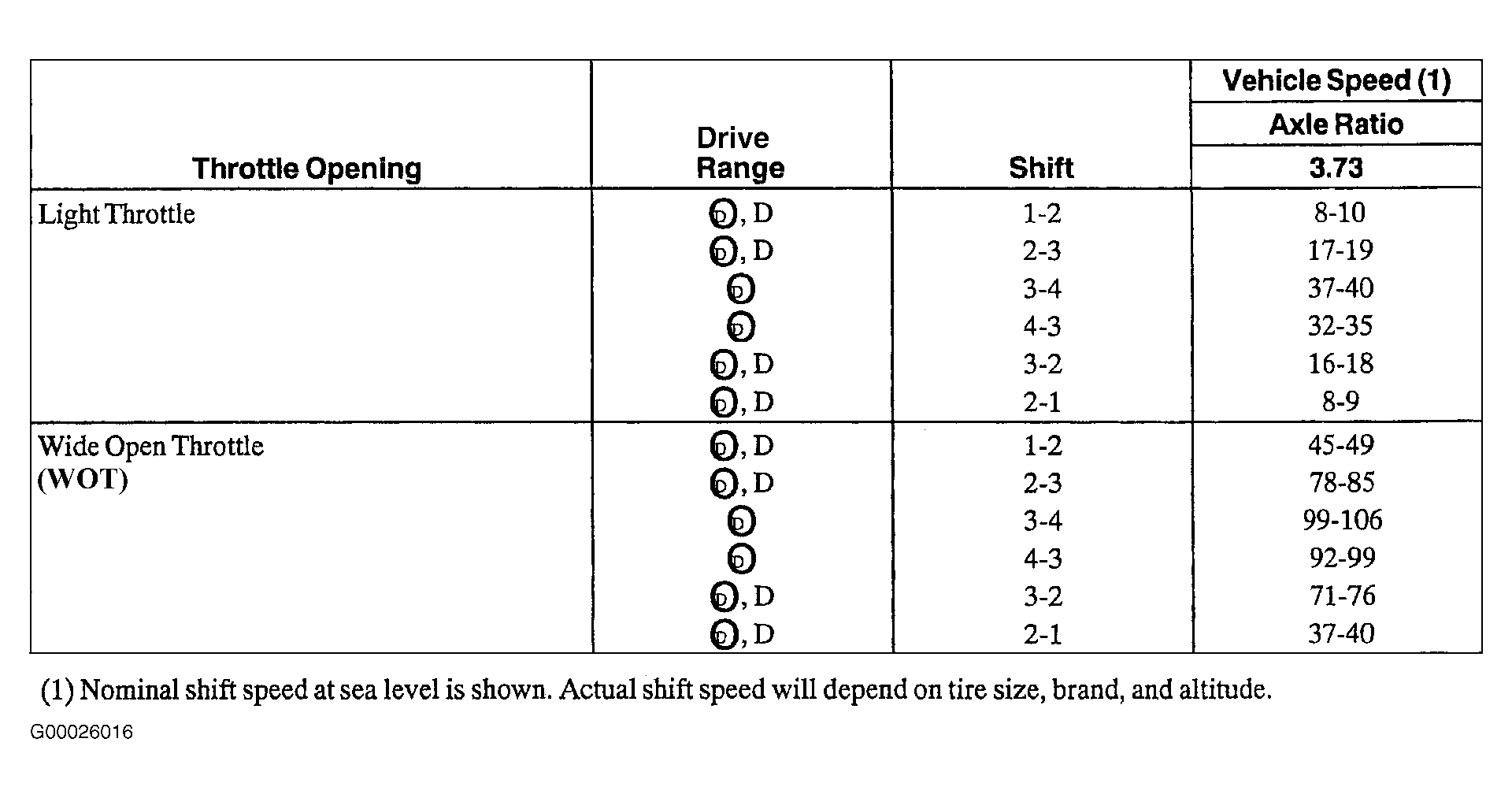

Fig 6: 6.8L E350 & "E" Series Super-Duty & Excursion

Courtesy of FORD MOTOR CO.

Fig 7: 7.3L Diesel E350 & "E" Series Super-Duty

Courtesy of FORD MOTOR CO.

Fig 8: 7.3L Diesel F250/350 "F" Series Super-Duty

Courtesy of FORD MOTOR CO.
