Oil Pan: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
Drain the engine oil.
Remove the engine oil level indicator assembly.
1. Remove the engine oil level indicator.
2. Remove the bolts.
3. Remove the engine oil level indicator tube.

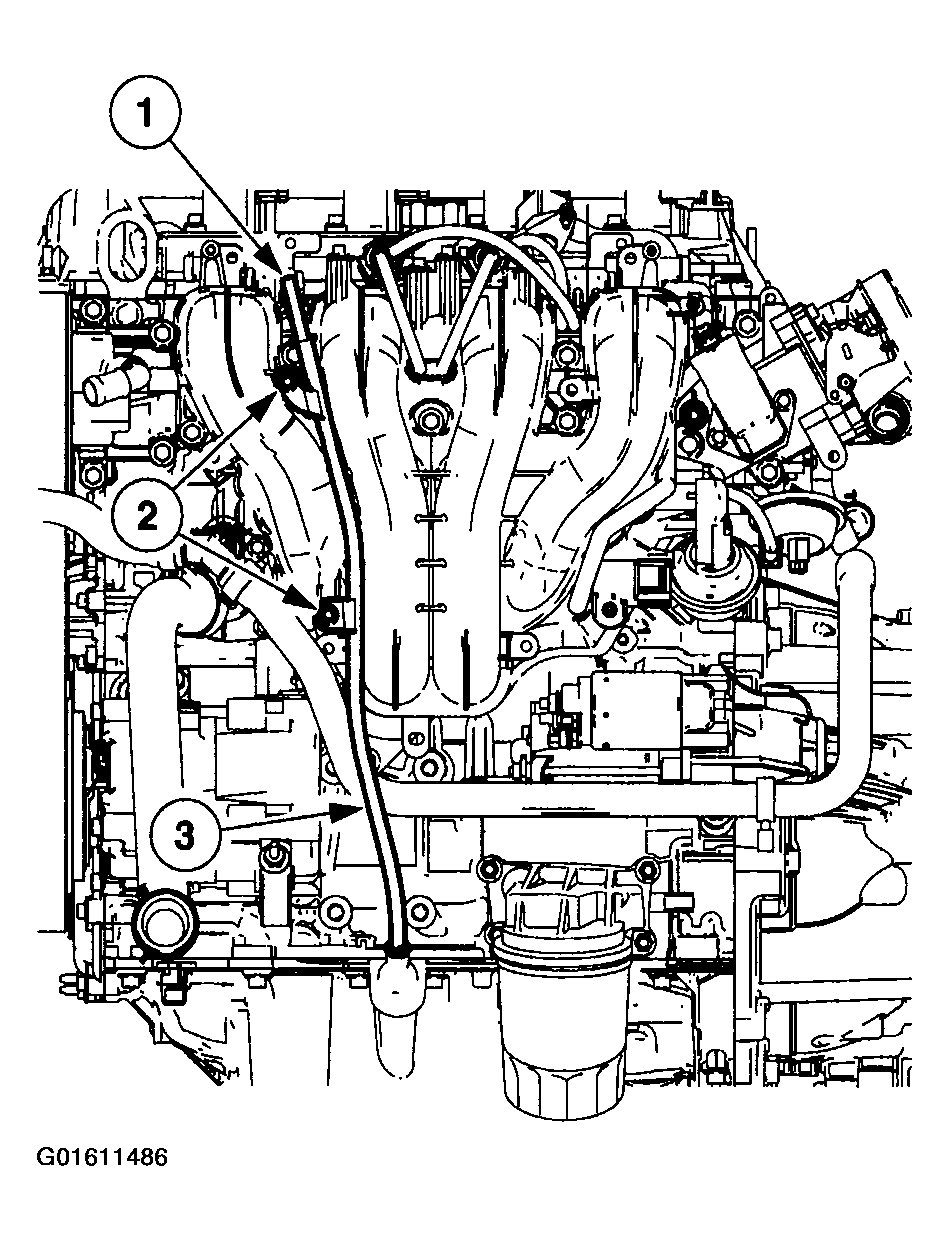

  Fig 1: Removing Engine Oil Level Indicator Assembly
  Courtesy of FORD MOTOR CO.
Remove the wiring harness.
1. Remove the two nuts from the studs.
2. Remove the wiring harness from the studs and position aside.

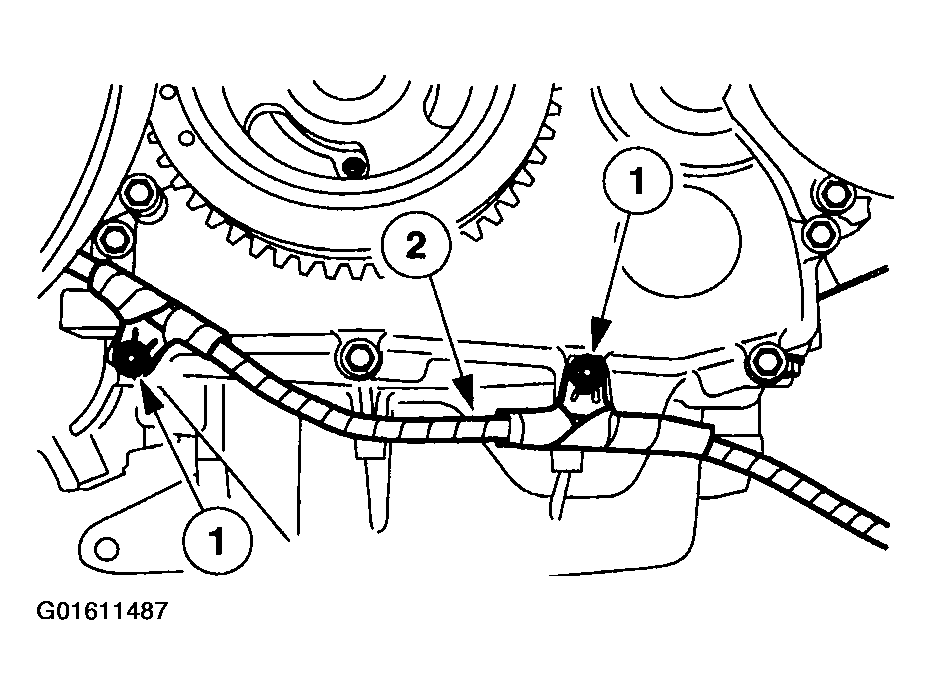

  Fig 2: Removing Wiring Harness
  Courtesy of FORD MOTOR CO.
Remove the bolts and the studs.

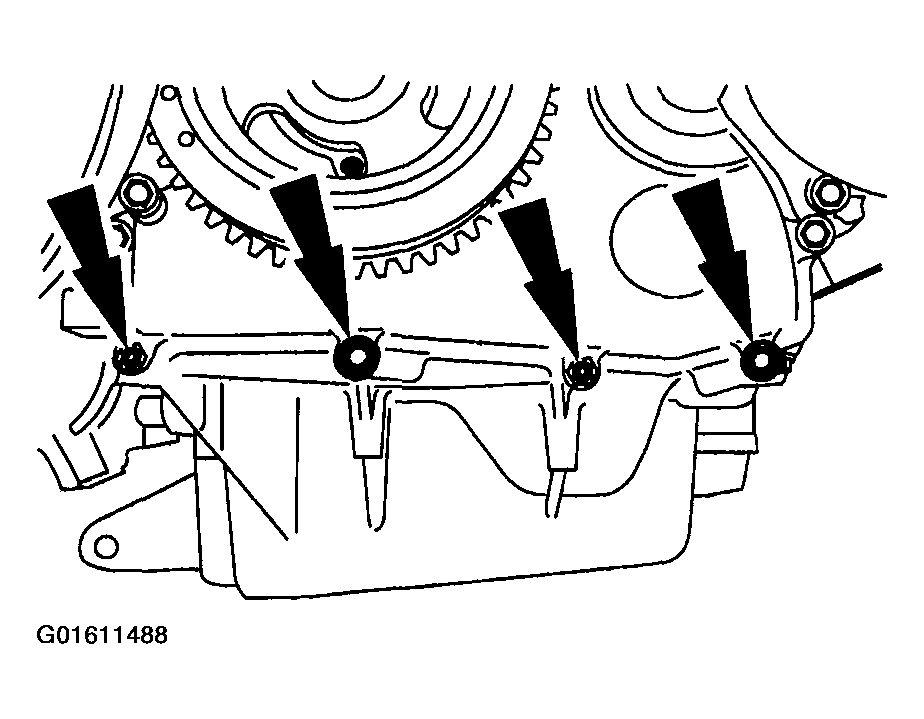

Fig 3: Removing Bolts And Studs
Courtesy of FORD MOTOR CO.
Remove the bolts.

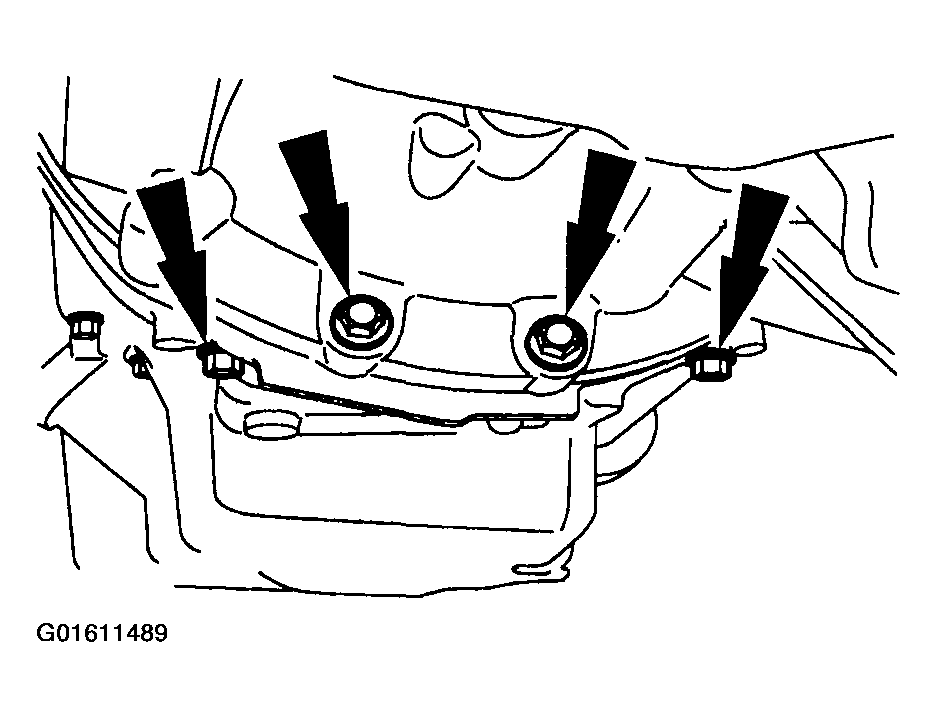

Fig 4: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the oil pan-to-bellhousing bolts.

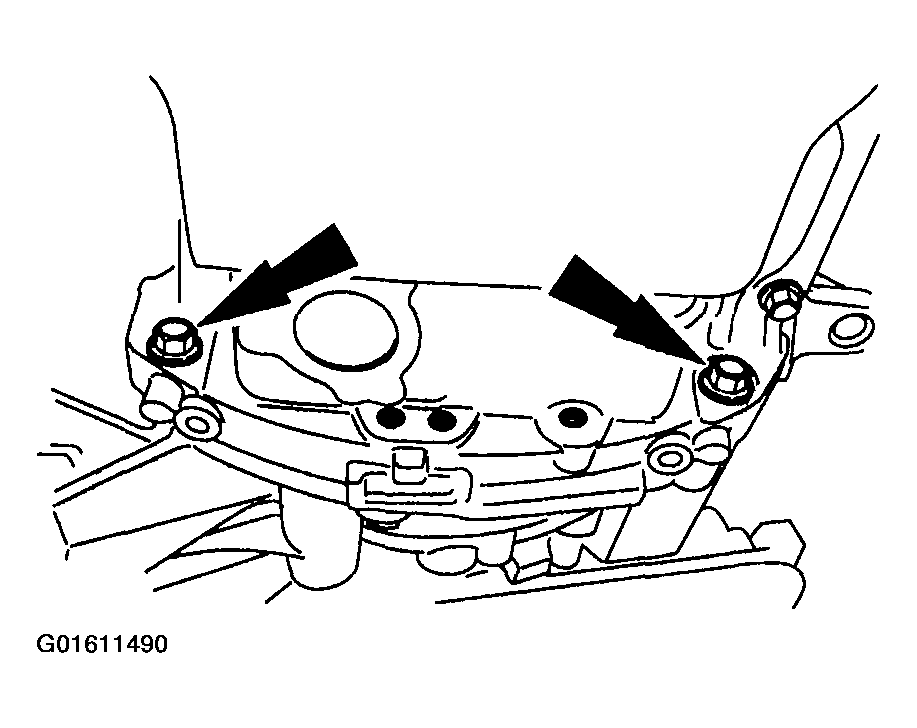

Fig 5: Removing Oil Pan-To-Bellhousing Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and oil pan.

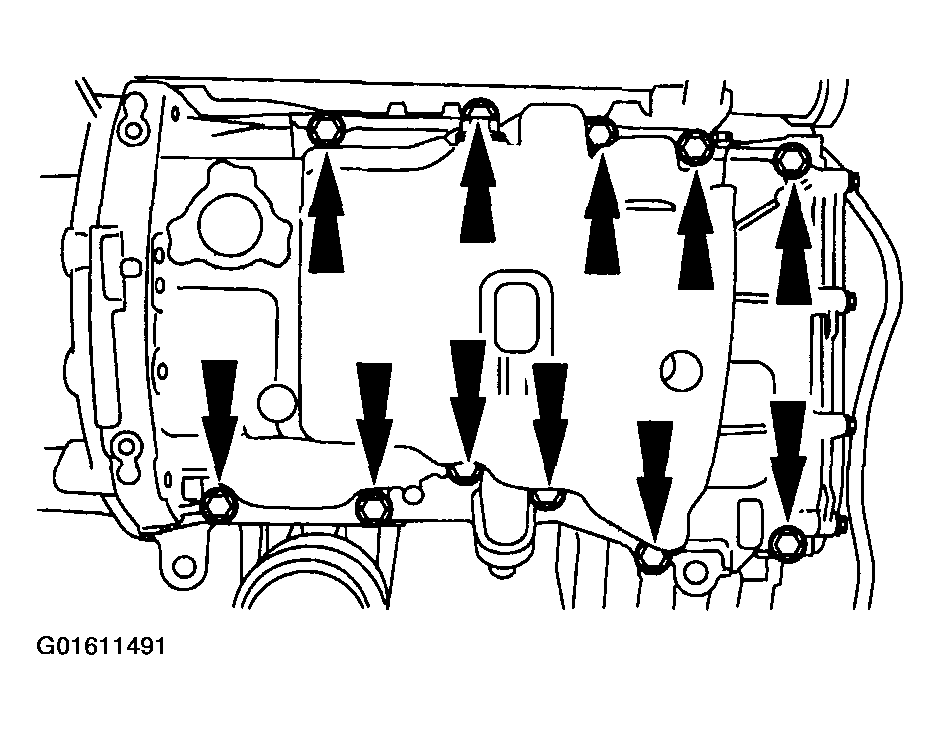

Fig 6: Removing Bolts And Oil Pan
Courtesy of FORD MOTOR CO.
