Strut Assembly: Disassembly

Place strut assembly in Strut Spring Compressor (014-00781), and compress spring. Remove top mount nut, bushing, strut mounting bracket, and spring seat. Gradually release spring compressor. Remove spring, dust boot, and jounce bumper.

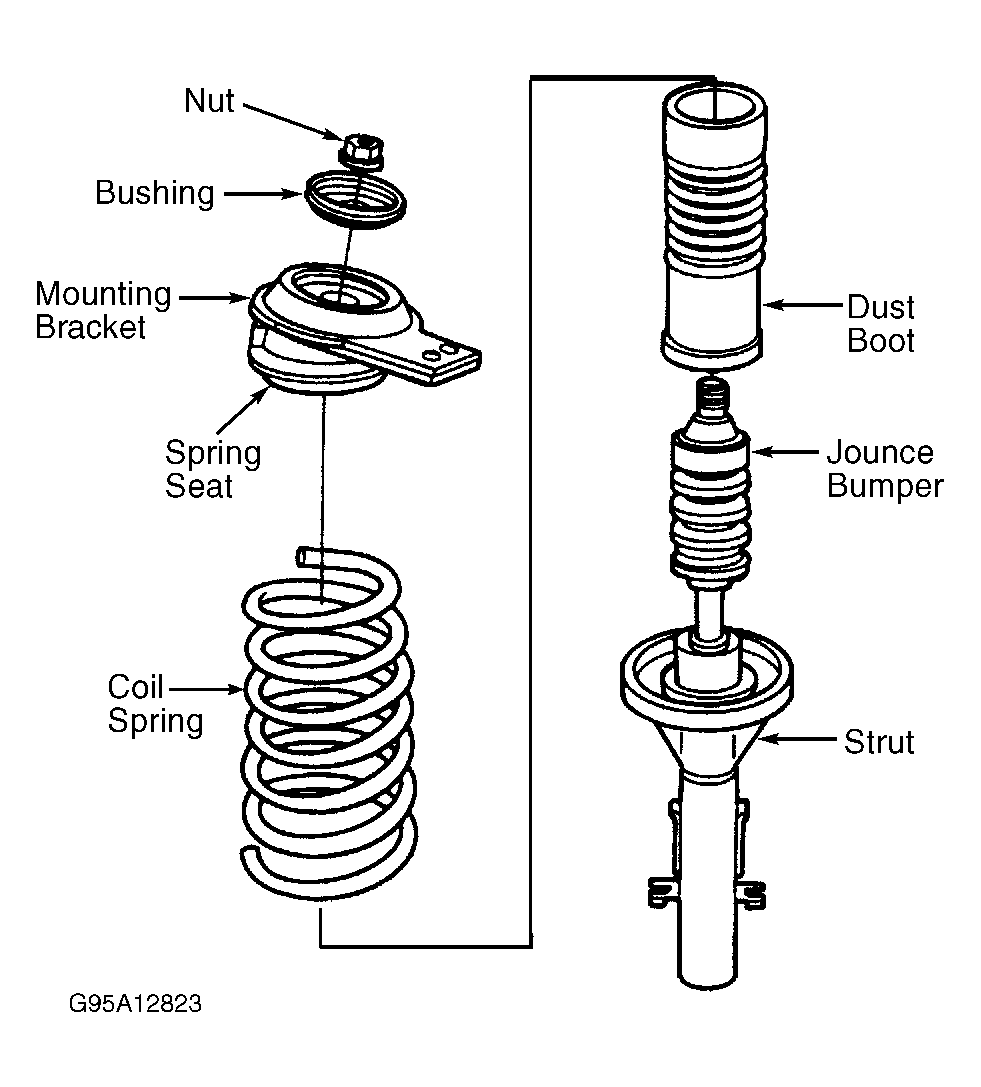

Fig 1: Exploded View Of Strut Assembly
G95A12823Courtesy of FORD MOTOR CO.
