DRIVEABILITY - Bi-Fuel Component Identification Chart (01-10-11)
WARNING: This page is about the Contour LX, 2.0 3, which is a different variant/trim than selected.
Publication date: 2001-05-28Reference number: 01-10-11
DRIVEABILITY - BI-FUEL COMPONENT IDENTIFICATION CHART
TECHNICAL SERVICE BULLETIN
Reference Number(s): 01-10-11, Date of Issue:
May 28, 2001
DRIVEABILITY - BI-FUEL IDENTIFICATION CHART - BI-FUEL ENGINES ONLY
Model(s):
- FORD:
- 1996-2000 Contour
- 1994-2001 F-150, F-250 LD
- 1996-1999 E-250, E-350
- 1999-2001 Super Duty F Series
Bulletin No.: 01-10-11
Date: May 28, 2001
ISSUE
This article is to serve as an aid to ensure correct ordering of major components by identifying component to vehicle application.
ACTION

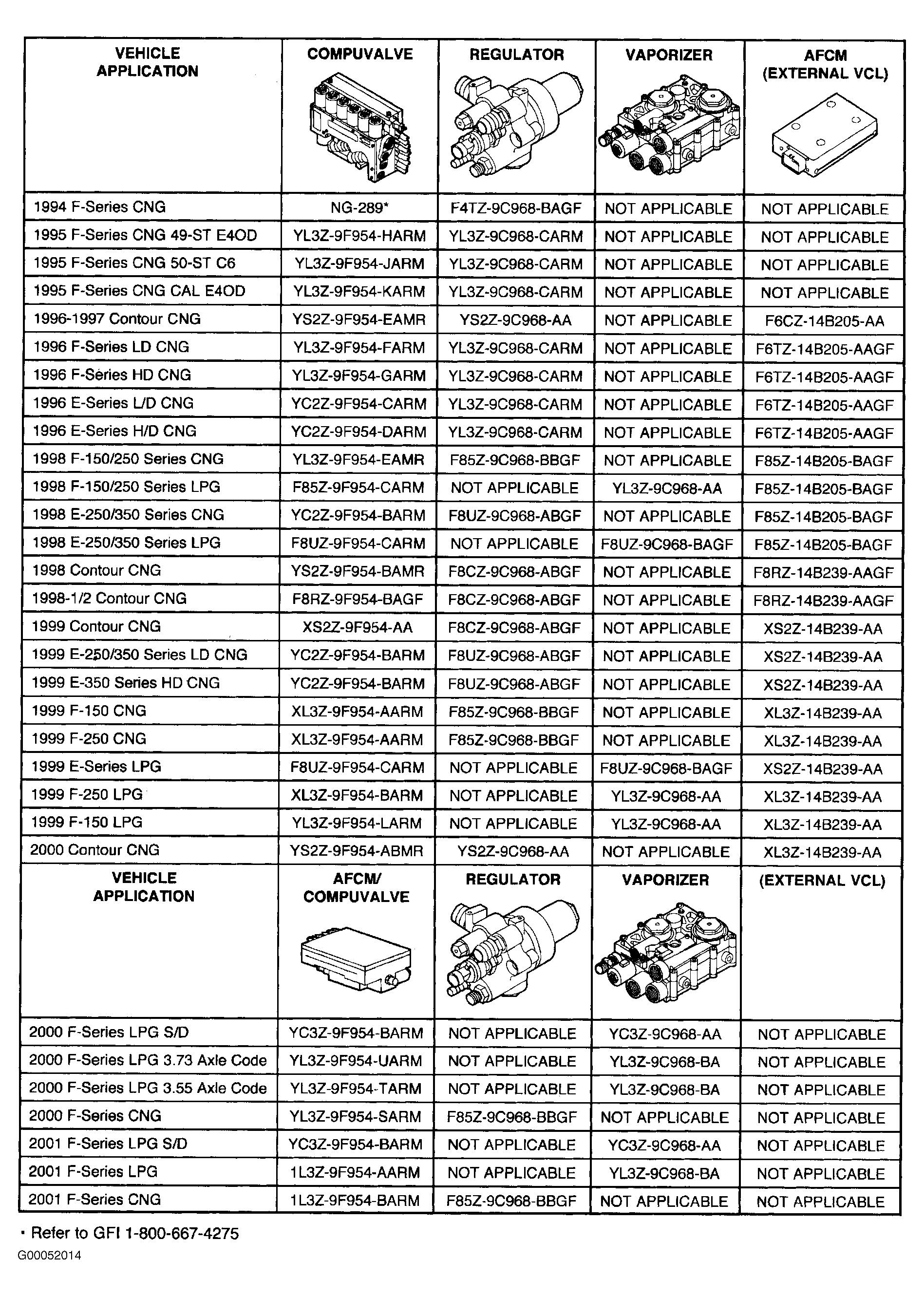

Refer to component chart (Fig 1 ) for bi-fuel major component identification and illustrations.
SERVICE INFORMATION
Refer to Fig 1 for bi-fuel component to vehicle application listings.
WARRANTY INFORMATION
WARRANTY STATUS: Information Only.
OASIS CODES: 490000, 690000, 698298
