Oil Temperature Sensor
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL REFERENCE
| Item | Specification |
|---|---|
| SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent | WSS-M2C930-A |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the oil drain plug and drain the engine oil.
- To install, tighten to 14 Nm (10 lb-in).

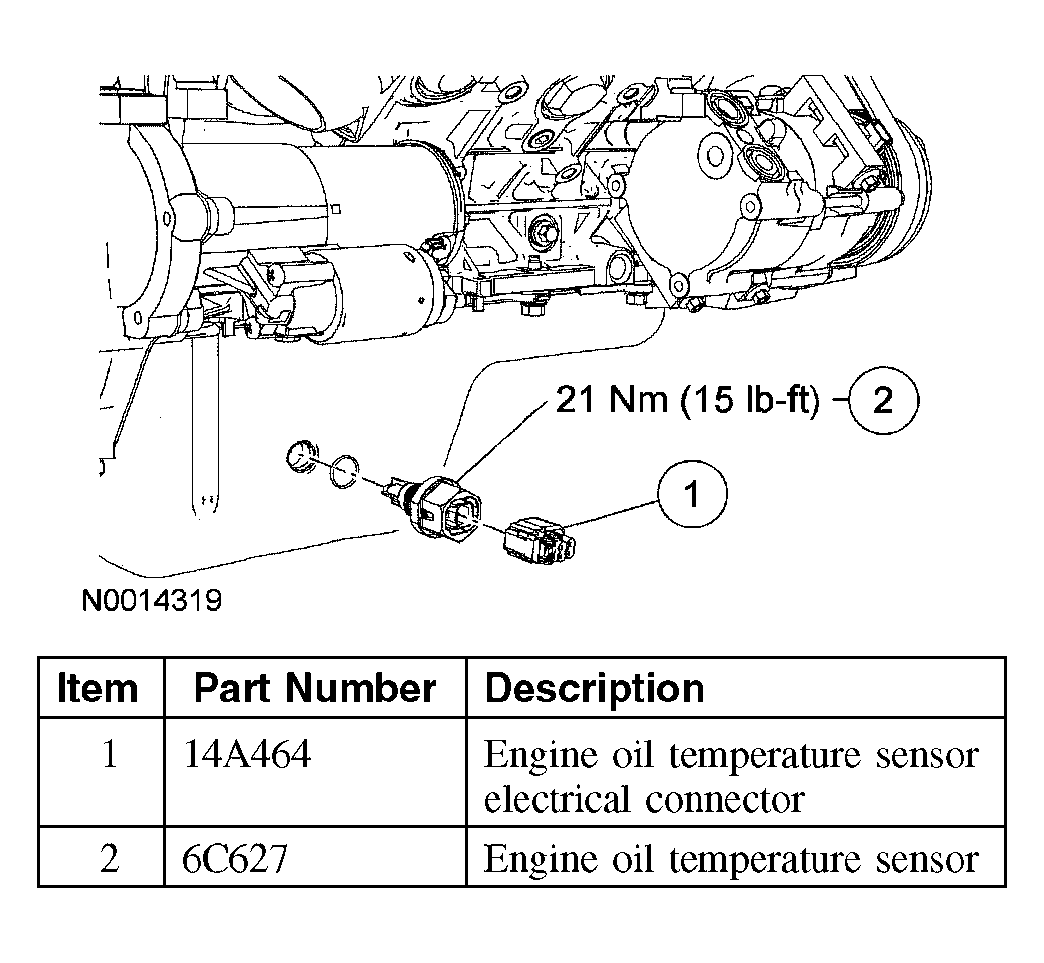

- Disconnect the oil temperature sensor electrical connector.
- Remove the oil temperature sensor.
- To install, tighten to 21 Nm (15 lb-ft).
- To install, reverse the removal procedure.
