Front Seat: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Install the front seat and retainers.

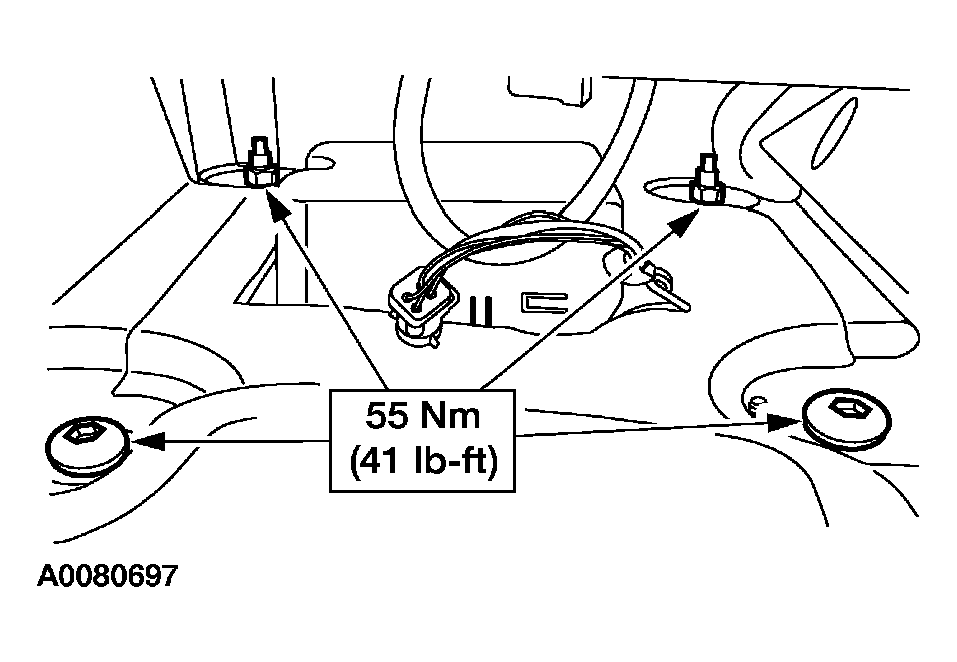

    Fig 1: Installing Front Seat And Retainers
    G03890801Courtesy of FORD MOTOR CO.

    Vehicles equipped with power seat

  2. Connect the electrical feed electrical connector underneath the seat.
    Fig 2: Seat Control Switch Electrical Connector
    G03890792Courtesy of FORD MOTOR CO.

    3. All vehicles

  3. Connect the safety belt buckle pretensioner electrical connector.

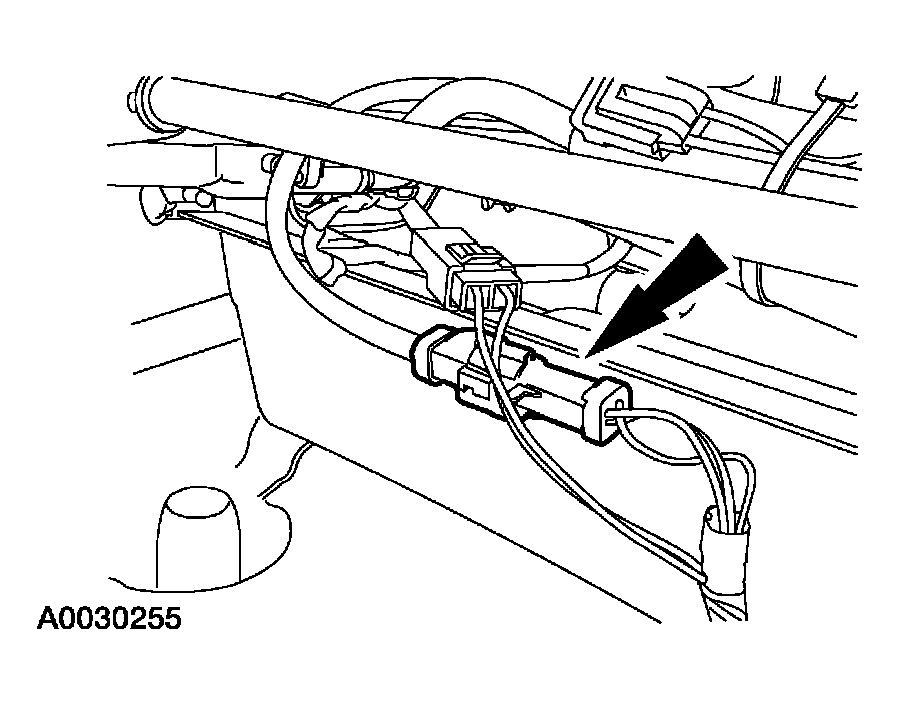

    Fig 3: Connecting Safety Belt Buckle Pretensioner Electrical Connector
    G03890799Courtesy of FORD MOTOR CO.
  4. Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .
  5. Check the restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
