Heater Hose Coupling: Connect

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Clean the tubes and lubricate with plain water.
Install a new coupling retainer, spacer, and lubricated O-ring seals into the quick disconnect coupling housing.

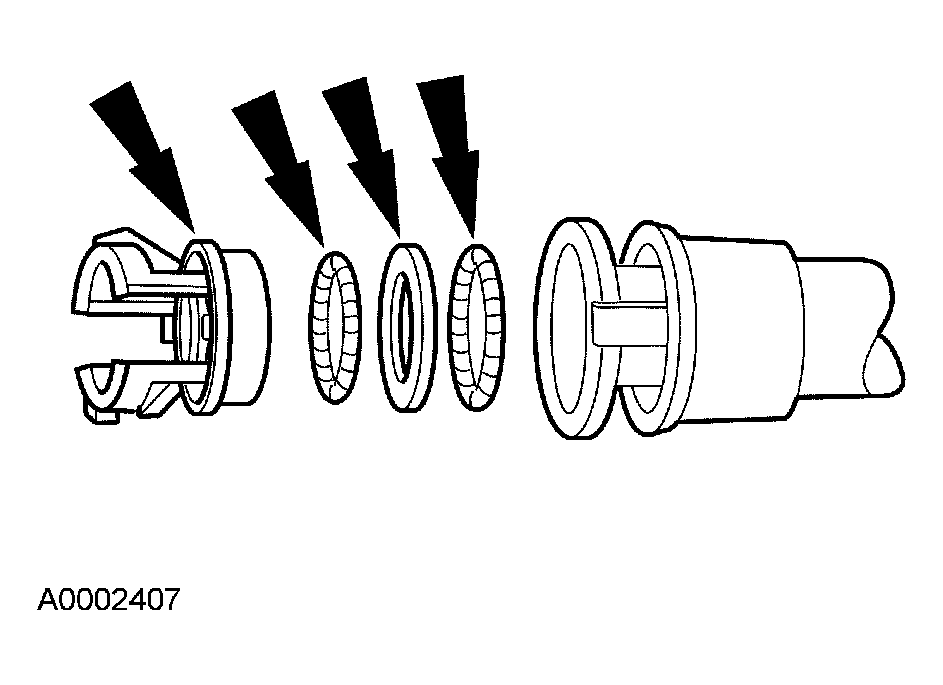

Fig 1: Identifyiing Coupling Retainer, Spacer, O-Ring Seals, And Quick Disconnect Coupling Housing
Courtesy of FORD MOTOR CO.
Push the heater water hose with a quick disconnect coupling onto the tube.

Fig 2: Pushing Heater Hose Coupling Onto Tube
Courtesy of FORD MOTOR CO.
Make sure the coupling is fully engaged by lightly pulling on the heater water hose.
